Hastelloy C22 Threaded Forged Fittings Manufacturer in India

sachiya steel
Hastelloy C22 Threaded Forged Fittings Manufacturer in India

Sachiya Steel International is one of the Leading Manufacturer And Exporter of Hastelloy C22 Threaded Forged Fittings to the esteemed clients, which are designed and engineered utilizing advanced technology and high quality metals. Hastelloy C22 Forged Threaded Elbow Fittings (UNS N06022) has shown an outstanding resistance to a wide range of chemicals, including chlorides, organic and inorganic solutions. Hastelloy C22 Forged Threaded Tee Fittings also has excellent resistance to oxidizing aqueous media including wet chlorine and mixtures containing nitric acid or oxidizing acids with chlorine ions.

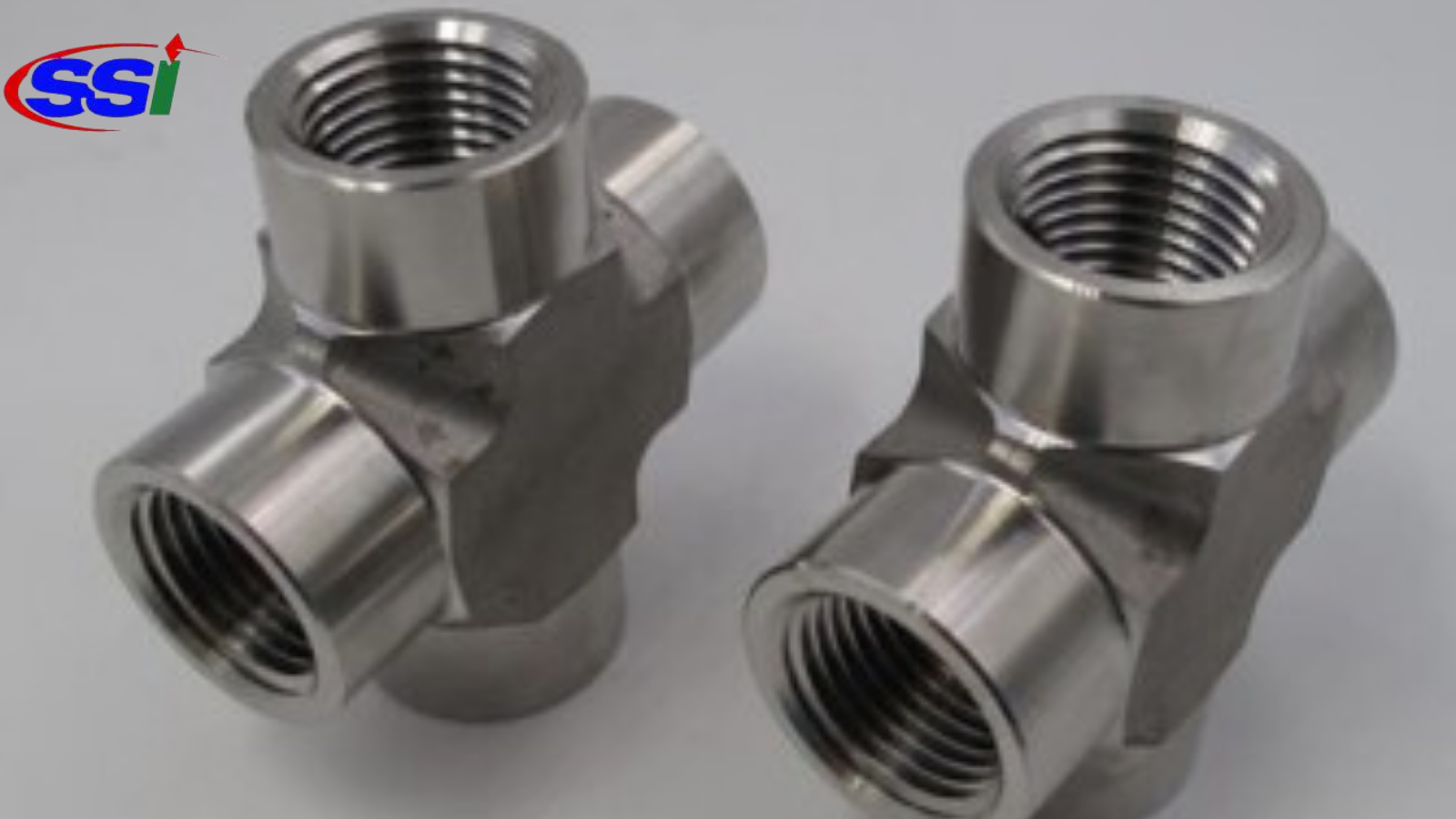

Hastelloy C22 Forged Threaded Cross Fitting has better overall corrosion resistance than Hastelloy C-4 & C-276 and Inconel 625. Meanwhile, these Hastelloy C22 Forged Threaded Cap Fitting are as well being offered in customized sizes and shapes to our customers. We also offer Hastelloy C22 Forged Threaded Bend Fitting at market leading rates. Annealing of Hastelloy C22 Forged Threaded Coupling Fittings can be performed at a temperature range between the ranges of 2020 Degree F – 2150 Degree F followed by a rapid quench.

Cooling of Hastelloy C22 Forged Threaded Union Fitting at an accelerated rate avoids the formation of detrimental phases which form between the ranges of 1400 Degree F – 1800 Degree F. Hastelloy C22 Forged Threaded Bushing Fittings also offers optimum resistance to environments where reducing and oxidizing conditions are encountered in process streams. Hastelloy C22 Forged Threaded Plug Fittings is beneficial in multi – purpose plants where such “upset” conditions occur frequently.

Hastelloy C22 Threaded Fitting Specifications
Specifications : ASTM B564 & ASME B564
Size : 1/8” NB to 4” NB (Socket weld & Screwed-Threaded)
: ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Threaded Fittings


Hastelloy C22 Forged Threaded Fitting Chemical Composition


Grade C Mn Si S Co Ni Cr Fe Mo P
C22 0.010 max 0.50 max 0.08 max 0.02 max 2.50 max 50.015 min* 20.00 – 22.50 2.00 – 6.00 12.50 – 14.50 0.02 max


Hastelloy C22 Threaded Fitting Mechanical Properties


Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %


Equivalent Grades for C22 Hastelloy Forged Threaded Fitting


 C22 2.4602 N06022 NW 6022 NiCr21Mo14W


Hastelloy C22 Forged Threaded Fittings Application Industries


  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry

About Us:

Sachiya Steel International are manufacturers & exporters of Pipes,Tubes ,Pipe Fitting, Fasteners.

Sachiya Steel International is an internationally acclaimed Pipes And Tubes manufacturing company that exports to more than 90 countries worldwide. We export our high-quality fasteners in Saudi Arabia, Oman, UAE, Dubai, Kuwait, Qatar, Mexico, USA, Malaysia, Iran and many other countries.
