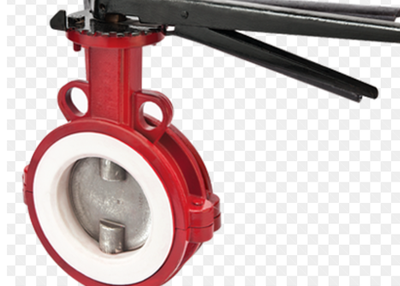

Define the structure of the butterfly valve

In this post, we are going to look the inner workings of a butterfly valve for water. A butterfly valve is a quarter-turn rotational motion valve that is used to isolate or regulate the flow of fluids. Concentric Disc Design: The concentric disc design places the disc slightly offset from the pipe center, leading to improved sealing and reduced friction during operation. Eccentric Disc Design: Eccentric disc design features a disc positioned away from the pipe center. Future Trends in Butterfly Valve TechnologyAdvancements in materials and design will likely lead to more efficient and durable butterfly valves, enhancing their performance and longevity.

The three primary types of butterfly valves are the wafer, lug, and flanged types, each having distinct advantages and disadvantages. The wafer type is suitable for low-pressure applications, the lug type for applications requiring frequent disassembly, and the flanged type for high-pressure applications. Conclusion:Butterfly valves are versatile and cost-effective valves used in various industrial applications. Understanding the different types of butterfly valves and their applications can help select the right valve for a particular application. Proper maintenance is necessary to keep butterfly valves running efficiently and extend their lifespan, reducing downtime and maintenance costs.
