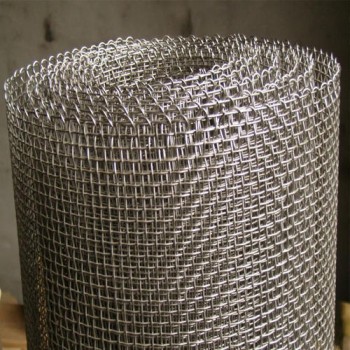

Sachiya Steel International is a known firm that is involved in manufacturing qualitative collection of Inconel 625 Wire Mesh to the customers. This Inconel 625 Wires is an oxidation and corrosion resistant nickel alloy which is used both for its soaring potency and exceptional aqueous corrosion resistance. The power of Inconel 625 Wire Mesh is mainly a solid solution effect from columbium and molybdenum. This Inconel 625 Hexagonal Wire Mesh is a promising select for sea water uses, and so is extremely resistant in an extensive collection of mineral and organic acids.
Alloy 625 Welding Wire Mesh (UNS N06625) resists an extensive collection of sternly corrosive atmospheres and is particularly resistant to crevice and pitting corrosion. Meanwhile, this Inconel 625 Netting Wire Mesh is also being offered in different sizes and shapes to our customers. Alloy 625 Woven Wire Mesh achieves high-strength levels from the solid solution effects of Molybdenum and Niobium (Columbium) from room temperature up to 800 Degree C. For high temperature applications above 600 Degree C (1112 Degree F), this solution annealed Inconel 625 Spring Steel Wire Mesh is generally used.
There is almost no attack in mild environments of Inconel 625 Fencing Wire Mesh such as fresh and sea water, alkaline media and neutral pH environment. This leads to the ability to recover creep properties of this Alloy 625 Wire Mesh to prolong the materials lifetime.
|
Inconel 625 Wire mesh Specifications
|
||
| Specifications | : | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 |
| Standard | : | ASTM / ASME |
| Size | : | M10 TO M100 |
| Length | : | UUPTO 1 METERS |
| Type | : | Wire Mesh , Hexagonal Wire mesh, Welding Wire mesh, Netting Wire mesh, Woven Wire mesh , Spring Steel wire mesh, Fencing Wire mesh etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 625 |
0.10max | 0.50 max | 0.50 max | 0.015max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 |
8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 |
2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
