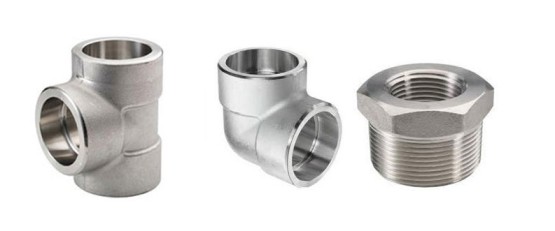

Sachiya Steel International offers a wide range of Super Duplex Steel S32750 Threaded Forged Fittings where we customize these products on the basis of the requirements detailed by customers at industry leading rates. Super Duplex S32750 Forged Threaded Elbow has 25 % chromium, 4 % molybdenum, and 7 % nickel. The high – temperature strength of Super Duplex S32760 Forged Threaded Tee is basically the same as Type 430 in the range of 950 Degree C to 1150 Degree C.
The high molybdenum, chromium and nitrogen content gives high resistance to chloride pitting and crevice corrosion attack and the duplex structure provides Super Duplex S32750 Forged Threaded Cross with exceptional resistance to chloride stress corrosion cracking. Super Duplex S32760 Forged Threaded Cap should be noted that the strength increases abruptly below 900 Degree C.
Super Duplex Steel S32750 Threaded Forged Fittings | Super Duplex Steel S32750 Threaded Forged Fittings | Super Duplex Steel S32750 Threaded Forged Fittings | Super Duplex Steel S32750 Threaded Forged Fittings | Super Duplex Steel S32750 Threaded Forged Fittings | Super Duplex Steel S32750 Threaded Forged Fittings | Super Duplex Steel S32750 Threaded Forged Fittings
Meanwhile, these Super Duplex S32750 Forged Threaded Fittings are also being offered in different sizes and shapes to our customers. At high temperatures, above 2000 Degree F, Super Duplex S32760 Forged Threaded Coupling will become increasingly ferritic, becoming fully ferritic at temperatures just below the melting point. Super Duplex S32750 Forged Threaded Union has higher nitrogen increases the temperature at which austenite is stable within the duplex structure. Super Duplex S32760 Forged Threaded Bushing facilitates the formation of austenite subsequent to a high temperature exposure such as in the heat – affected zone adjacent to a weld.
Super Duplex Steel S32750 / S32760 Forged Threaded Fittings Specifications |
||
Specifications | : | ASTM A182 & ASME SA182 |
Size | : | 1/8” NB to 4” NB (Socket weld & Screwed-Threaded) |
Standards |
: | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Type | : | Threaded Fittings |
Super Duplex Steel S32750 / S32760 Forged Fittings Chemical Composition
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
Super Duplex Steel S32750 / S32760 Threaded Fitting Mechanical Properties
Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
S32750 / S32760 | 7.8 | 0.281 | 1350 | 2460 |
Equivalent Grades for S32750 / S32760 Super Duplex Steel Forged Fittings
STANDARD | WERKSTOFF NR. | UNS |
Super Duplex 2507 | 1.4410 | S32750 / S32760 |
Super Duplex Steel S32750 / S32760 Forged Fittings Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
