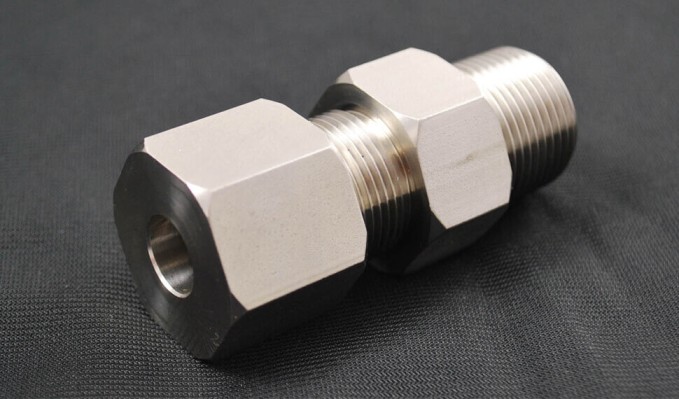

Sachiya Steel International is one of the Leading Manufacturer And Exporter of quality Nickel Alloy 201 Tube to Union Fittings, which is ferromagnetic. Our Nickel 201 Tube Fittings are solid solution strengthened, commercially pure wrought materials by means of good mechanical properties over a wide range of temperatures and excellent resistance to many corrosives, in particular hydroxides. These Nickel 201 Compression Fittings provides high thermal and electrical conductivity in comparison to nickel – base alloys, stainless and low alloy steels. Our Nickel 201 Union Fittings is not recommended for service above 600 Degree F (316 Degree C) because long – time exposures in the 800 Degree F to 1200 Degree F range result in precipitation of a carbon containing phase and loss of ductility.
These Nickel 201 Ferrule Fittings is a modification of Nickel 200 to control carbon which keeps it from being embrittled by inter – granular precipitates at temperatures of 600 Degree F to 1400 Degree F in many processes. Our Nickel 201 Double Ferrule Fittings also has a high Curie temperature and good magneto strictive properties. These annealed Alloy 201 Tube Fittings has a low hardness and good ductility and malleability.
Nickel Alloy 201 Tube to Union Fittings | Nickel Alloy 201 Tube to Union Fittings | Nickel Alloy 201 Tube to Union Fittings | Nickel Alloy 201 Tube to Union Fittings | Nickel Alloy 201 Tube to Union Fittings | Nickel Alloy 201 Tube to Union Fittings | Nickel Alloy 201 Tube to Union Fittings | Nickel Alloy 201 Tube to Union Fittings | Nickel Alloy 201 Tube to Union Fittings | Nickel Alloy 201 Tube to Union Fittings
These attributes, combined with good weldability, make our Alloy 201 Compression Fittings highly fabricable. These Alloy 201 Union Tube Fittings has a relatively low work – hardening rate, but it can be cold worked to moderately high strength levels while maintaining ductility.
Nickel Alloy 201 Tube to Union Specifications |
||
Standards | : | ASTM B366 / ASME SB366 |
Size Range | : | 1/16″OD to 2″OD, 2mm OD to 50mm OD |
Thread | : | NPT, BSP, BSPT, UNF, ISO, SAE etc. |
End | : | Threaded, Welding, JIC |
Pressure Rating | : | 1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi |
Type | : | Single Ferrule tube fitting, Double Ferrule tube fitting, Hydraulic tube fitting, Instrumentation tube fitting |
High Nickel Alloy 201 Tube To Union Chemical Composition
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Nickel Alloy 201 Tube To Union Mechanical Properties
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Nickel 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Equivalent Grades for 201 Nickel Alloy Ferrule Fitting Tube To Union
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | – | LC-Ni 99 |
High Nickel Alloy 201 Tube To Union Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
