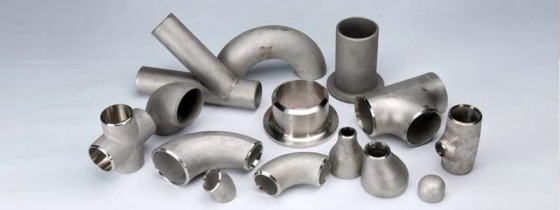

Sachiya Steel International is one of the Leading Manufacturer And Exporter Of Stainless Steel 904L Pipe Fittings, which is non – magnetic in all conditions and has excellent formability and weldability. Stainless Steel 904L Compression Pipe Fittings is the second most common grade after 904 and is popular chromium, nickel, molybdenum – bearing stainless steel grade. Stainless Steel 904L Ferrule Pipe Fittings is one of the few stainless steels that at temperatures of up to 35 Degree C / 95 Degree F which provide full resistance in dilute sulphuric acid environments within the entire range of concentration, from 0 % to 100 %.
SS 904L Double Ferrule Pipe Fittings is a non – stabilized austenitic stainless steel with low carbon content, which is also resistant to stress corrosion cracking and crevice corrosion. 904L Stainless Steel Ferrule Pipe Fittings is a low carbon high alloy austenitic stainless steel which is widely used in applications where the corrosion properties of SS 316L and SS 317L are not adequate. 904L Stainless Steel Compression Pipe Fittings is added with copper to improve its resistance to strong reducing acids, such as sulphuric acid.
Stainless Steel 904L Pipe Fittings | Stainless Steel 904L Pipe Fittings | Stainless Steel 904L Pipe Fittings | Stainless Steel 904L Pipe Fittings | Stainless Steel 904L Pipe Fittings | Stainless Steel 904L Pipe Fittings
904L SS Double Ferrule Pipe Fittings is non – magnetic, and offers excellent formability, toughness and weldability. Stainless Steel 904L Accessories contains high amounts of expensive ingredients, such as molybdenum and nickel. 904L Stainless Steel Accessories was originally developed to withstand environments containing dilute sulphuric acid.
Stainless Steel 904L Pipe Fittings / Accessories Specifications |
||
| Specifications | : | ASTM A182 ASME SA 182 |
| Tube Size | : | 1/16”OD to 2”OD, 2mm OD to 50mm OD |
| Thread |
: | NPT, BSP, BSPT, UNF, ISO, SAE etc. |
| Pressure Rating | : | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
SS 904L Pipe Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | Cu | |
| 904L | min. | – | – | – | – | – | 19.0 | 4.0-5.0 | 23.0 | 1.0 |
| max. | 0.20 | 2.0 | 1.0 | 0.045 | 0.035 | 23.0 | 28.0 | 2.0 | ||
Stainless Steel 904L Accessories Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 904L | 490 | 220 | 35 | 70-90 typical | – |
Equivalent Grades for 904L Stainless Steel Pipe Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
SS 904L Pipe Fittings / Accessories Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
