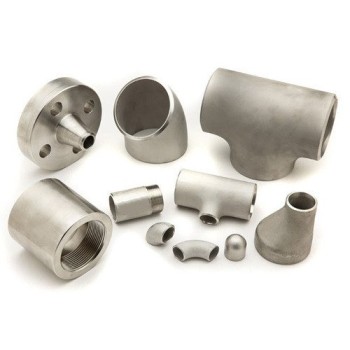

Sachiya Steel International is one of the Leading Manufacturer And Exporter of Stainless Steel 317L Threaded Forged Fittings, which show a much smaller rate of abrasion volume loss with increase in abrasion velocity than the austenitic steels. Stainless Steel 317L Forged Threaded Elbow derive their outstanding properties from their capacity to resist unstable fracture of micro shear lips on the abraded surface. This is due to the strain capacity in Stainless Steel 317L Forged Threaded Tee afforded by the mechanical inducement of the martensitic phase transformations and the high work – hardening characteristics of the transformation product.
The influence of this transformation has been studied as a function of prior cold work and velocity of abrasion on a range of austenitic Stainless Steel 317L Forged Threaded Cross. Notwithstanding these advantages of the austenitic grades, Stainless Steel 317L Forged Threaded Cap are superior in terms of cost per unit volume lost and the new ferritic – martensitic steel designated has potential as an abrasion resisting material in corrosive environments.
Stainless Steel 317L Threaded Forged Fittings | Stainless Steel 317L Threaded Forged Fittings | Stainless Steel 317L Threaded Forged Fittings | Stainless Steel 317L Threaded Forged Fittings | Stainless Steel 317L Threaded Forged Fittings | Stainless Steel 317L Threaded Forged Fittings
Complex design requirements can make Stainless Steel 317L Forged Threaded fittings necessary to combine different metallic materials within the same component. Also, chance combinations can often be found in Stainless Steel 317L Forged Threaded Coupling, governed only by the availability of, for instance, fasteners or shims. In certain circumstances, such mixed – material designs of Stainless Steel 317L Forged Threaded Union can lead to corrosion in one of the partner materials.
Stainless Steel 317L Forged Threaded Fittings Specifications
|
||
Specifications | : | ASTM A182 & ASME SA182 |
Size | : | 1/8” NB to 4” NB (Socket weld & Screwed-Threaded) |
Standards |
: | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Type | : | Threaded Fittings |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 317L | 0.035 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 317L | 1.4438 | S31703 | SUS 317L | – | – | – | X2CrNiMo18-15-4 |
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
About Us:
Sachiya Steel International are manufacturers & exporters of Pipes,Tubes ,Pipe Fitting, Fasteners.
Sachiya Steel International is an internationally acclaimed Pipes And Tubes manufacturing company that exports to more than 90 countries worldwide. We export our high-quality fasteners in Saudi Arabia, Oman, UAE, Dubai, Kuwait, Qatar, Mexico, USA, Malaysia, Iran, and many other countries.
Email: sales@sachiyasteel.com
For More Information Visit Our Website: Steel Tube
