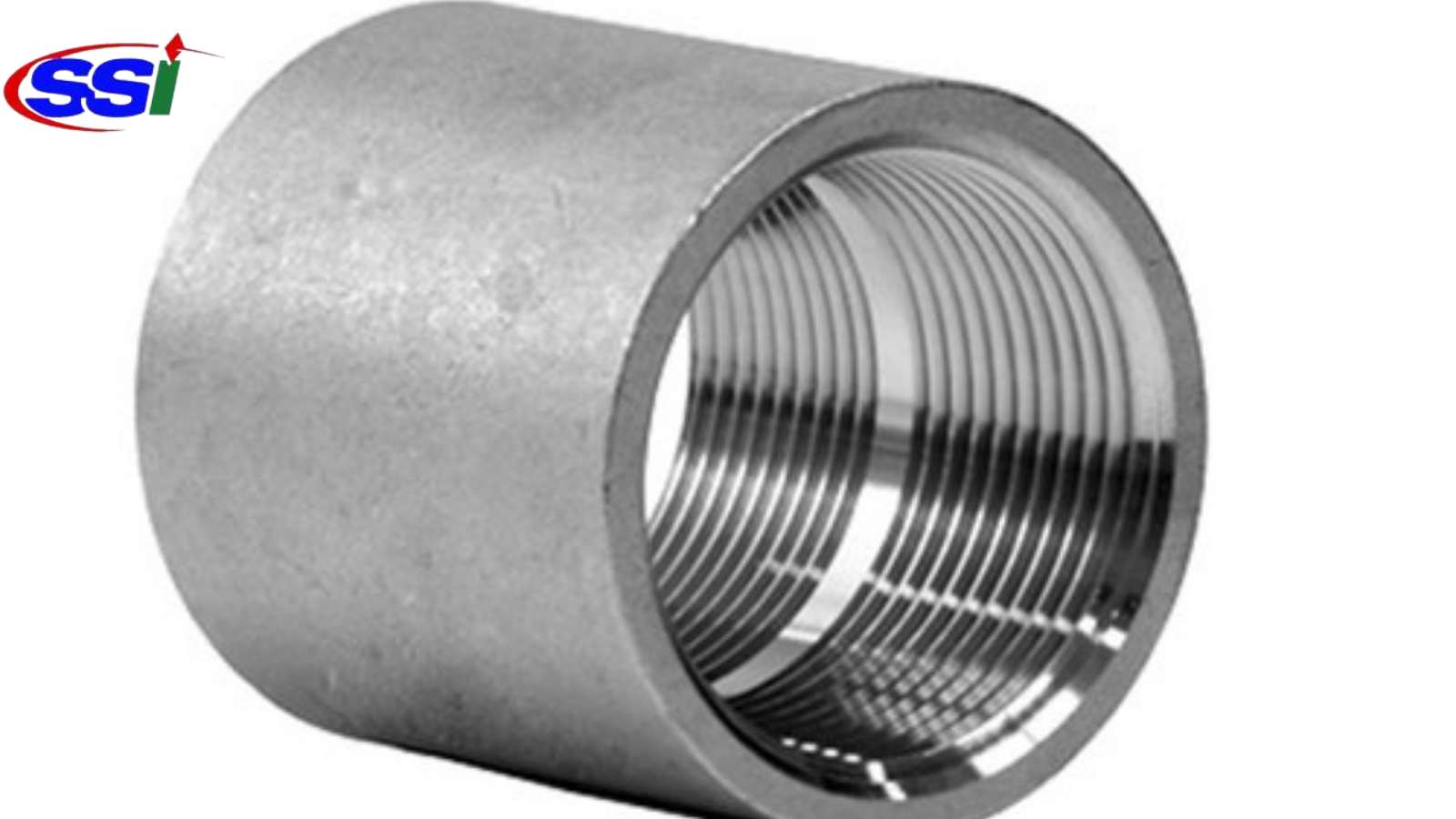

Hastelloy C276 Threaded Forged Fittings Manufacturer in India

avatar
sachiya steel

Sachiya Steel International is one of the Leading Manufacturer And Exporter of Hastelloy C276 Threaded Forged Fittings, which is available in variegated specifications which suits diverse requirements of our esteemed customers. Hastelloy C276 Forged Threaded Elbow Fittings (UNS N10276) has resisted the formation of grain boundary precipitates in the weld heat – affected zone, making it a candidate for most chemical and petrochemical processing applications in the as – welded condition. Hastelloy C276 Forged Threaded Tee Fitting has exceptional resistance to a wide variety of chemical environments.

Hastelloy C276 Forged Threaded Cross Fitting is resistant to the formation of grain boundary precipitates in the weld heat – affected zone, thus making it suitable for most chemical process application in an as welded condition. Hastelloy C276 Forged Threaded Cap Fitting is weldable by all common methods except that excessive heat input should be avoided. Meanwhile, these Hastelloy C276 Forged Threaded Bend Fitting are also being offered in customized sizes and shapes to our customers.

Hastelloy C276 Forged Threaded Coupling Fittings show only slightly better non – corrosive properties than straight carbon – steels, and the reason for their wide use is the high physical properties which will be brought about by heat -treatment. All of the common methods of welding can be used in Hastelloy C276 Forged Threaded Union Fittings, although the oxyacetylene and submerged arc processes are not recommended when the fabricated item is for use in corrosion service.

Hastelloy C276 Threaded Fittings Specifications
Specifications : ASTM B564 & ASME B564
Size : 1/8” NB to 4” NB (Socket weld & Screwed-Threaded)
Standards
: ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Threaded Fittings



Hastelloy C276 Forged Threaded Fittings Chemical Composition



Grade C Mn Si S Co Ni Cr Fe Mo P
C276 0.01 max 1.00 max 0.08 max 0.03 max 2.50 max 50.99 min* 14.50 – 16.50 4.00 – 7.00 15.0 – 17.0 0.04 max



Hastelloy C276 Threaded Fitting Mechanical Properties



Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52000 , MPa – 355 40 %



Equivalent Grades for C276 Hastelloy Forged Threaded Fittings



STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
C276 2.4819 N10276 NW 0276 ХН65МВУ NiMo16Cr15W ЭП760



Hastelloy C276 Forged Threaded Fittings Application Industries



  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry
