Earth spillage assurances are tested, because of the proceeding with development of intricacy in electrical offices and new guidelines.
In this article, a visitor specialized master clarifies the new RGU-2 gadget, prepared for these difficulties, that expands efficiency and recoveries in support of offices.
Introduction
Most electrical establishments these days progressively incorporate burdens that join gadgets.
Loads with gadgets impact the electrical establishment in different ways:
- They produce symphonious mutilation in the current they burn through.
- They produce current spillages at the mains recurrence, 50 Hz, and at higher frequencies under ordinary working conditions.
- When they are associated with the electrical power supply they create a spillage flow point.
- During a protection shortcoming, the spillage current probably won't be sinusoidal, but instead throbbing, for instance.
Instances of units consolidating gadgets:
PCs, low utilization lights, Broyce Control Earth Leakage Relay, clothes washers, dishwashers, microwaves, cell phone chargers, cooling units, electric vehicle chargers, dryers, machine devices, and so forth
Under typical conditions, this multitude of collectors creates spillage flow in the electrical establishment which makes the earth spillage insurance more inclined to trip.

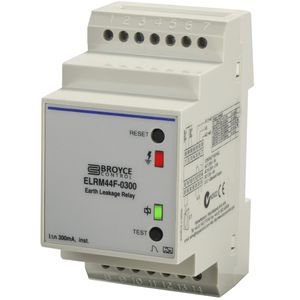

RGU-2 Earth spillage
The new RGU-2 unit gives the accompanying specialized subtleties that assist us with keeping an ensured establishment and simultaneously stay away from undesirable stumbling of the earth spillage security, in this manner supply has more assurance.
Trip range:
The assembling standard for earth spillage builds up that the excursion range should be somewhere in the range of half and 100% of the affectability, for instance, an earth spillage of 30 mA should trip somewhere in the range of 15 and 30 mA.
What occurs assuming that we have an earth spillage with an excursion affectability at 16 mA and one more at 25 mA?
- The two earth spillages conform to current enactment.
- The first will trip before the second.
- Assuming we likewise affirm that there is consistently a spillage current in an establishment with no breakdown, the primary will consistently be considerably more inclined to trip.
- If right now the power supply association is caused we have a transient spillage current, all things considered, the more delicate one will trip sooner.
What the RGU-2 gives:
- It has an excursion scope of somewhere in the range of 85% and 100% of its affectability.
- Subsequently, it ensures a more prominent, more hearty, and dependable stock.
Earth spillage type:
The most normally introduced earth spillages are type AC, yet they just distinguish 50 Hz rotating spillage flows. In this way, they are not appropriate when there are loads with hardware.
These units are set apart with the image:
The RGU-2 unit is equipped for recognizing throbbing and rotating spillage current, and it is delegated type A.
Type A units are set apart with the accompanying image:
Thusly, the RGU-2 gives our establishment greater security and can recognize both a throbbing and rotating spillage current.
Affectability with the recurrence:
Another significant detail is knowing how the earth spillage acts with the recurrence. Ordinary earth spillages are more delicate to 50 Hz substituting current.
This would be sufficient in case the office didn't have electronic burdens.
The RGU-2, other than being delicate to 50 Hz current, is less touchy to higher recurrence flows. At first, this probably won't show up as something useful for electrical security, yet that isn't totally evident.
We want to remember that:
- collectors that fuse hardware produce high recurrence spillages.
- The human body is more delicate to 50 Hz than 500 Hz. That implies that the higher the recurrence the more current is expected to create similar results.
Global standard IEC 479-2 expresses the current qualities that an individual can withstand relies upon the current recurrence. The Broyce Control Earth Leakage Relay spillage changes its affectability as far as possible set up by the security standard.
One more significant element concluded from the reaction to high recurrence is that it brings about more grounded resistance to troublesome outings. Also, assuming it has less affectability at higher recurrence, it implies that in the end, the earth spillage is more hearty to any transient aggravations that could contact us through the electrical organization itself.
The idea of Ultra-inoculation:
Super inoculated earth spillages securities are prominently known as ones that don't trip on account of bogus cautions, or which are very difficult to trip awkwardly.
Where do these characteristics come from? All things considered, essentially from the information we have effectively portrayed and which we sum up again time:
- Trips range somewhere in the range of 85% and 100% of the affectability.
- Recurrence reaction, specifically decreasing affectability when recurrence increments.
- Higher resistance to organize homeless people
Different elements of the RGU-2:
- Clear, straightforward presentation with a drove reference chart or with a mark of the specific spillage esteem on the LCD screen.
- Wide scope of outside toroidal.
- Affectability settings: 30, 100, 300, 500 mA, 1, 2, 3, 5 A.
- Customizable excursion time: Instantaneous, Selective, 0.1, 0.2, 0.3, 0.5, 1, 2, 3, 5 Seconds.
- 2 hand-off yields for showing pre-alert and caution.
This large number of highlights make conceivable to utilize the RGU-2 earth spillage transfer for a wide scope of uses, both for establishment at the principle board, on sub-boards, and in the last burden security, just as being substantial for VT, TN-S, and IT network systems, including single-stage and three-stage with and without impartial.
