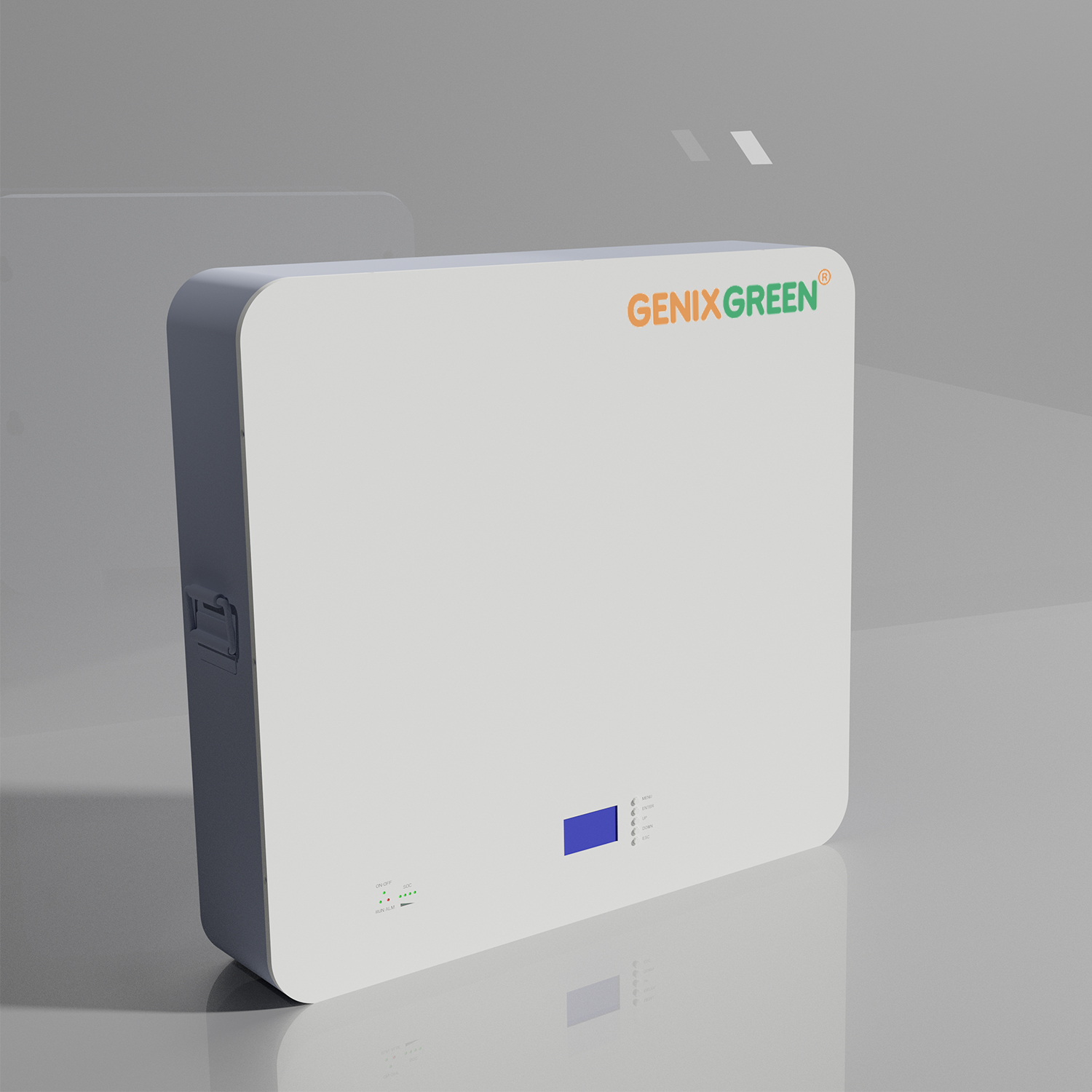

51.2V Lithium Ion Battery 100ah 150ah 200ah Powerwall Lithium LiFePO4 Solar Batteries Power Wall
Product model：ES-BOX5
Product specification：51.2V 200Ah
Cycle life：>6000 Cycles (80%DOD)
Weight：83Kg
Cell type：(LFP)
Standard charge voltage：58.4V
Max charge current ：100A
NiMH batteries
A Nickel Metal Hybrid (NiMh) battery is a rechargeable battery. It reacts chemically at the positive electrode, similar to what happens in nickel-cadmium batteries. The difference is in the negative electrode, because NiMH batteries use hydrogen-absorbing alloys instead of cadmium. A nickel-metal hybrid battery has two to three times the capacity of an equivalent nickel-cadmium battery of the same size. Its energy density is close to that of lithium-ion batteries.
Nickel-metal hydride batteries are widely used in hybrid vehicles, and a survey conducted in 2008 estimated that more than 2 million hybrid vehicles worldwide use nickel-metal hydride batteries.
In some parts of the world, such as the European Union, nickel-metal hydride batteries have replaced nickel-cadmium batteries in their applications.
In Japan, about 22 percent of all portable rechargeable batteries sold in 2010 were NiMH batteries. However, this percentage has been declining due to rapid technological advancements in the field of lithium-ion batteries.
Lithium Ion Battery
Lithium-ion batteries are used in almost all electronic devices and electric vehicles. Although more expensive than traditional alkaline batteries, lithium-ion batteries have a much longer lifespan.
Lithium-ion batteries are made from so-called batteries. Each of these cells is made up of three parts; a positive electrode, a negative electrode, and a chemical component called an electrolyte between the positive and negative electrodes.
The positive electrode in the battery is designed from lithium cobalt oxide. The negative electrode is designed from graphite. Electrolytes such as oxides and sulfides. The electrolyte must have a long shelf life and provide high mobility for lithium ions. Electrolytes can be liquid, polymer and solid electrolytes.
Lithium-ion batteries have the same working mechanism. When the battery is charged, the lithium cobalt oxide "positive electrode" releases some lithium ions that travel throughout the electrolyte to the negative electrode "graphite" and settle there. During this process, the battery stores energy. After the charging process and during the discharge process; lithium ions again travel from the negative electrode through the electrolyte back to the positive electrode, thereby generating energy to power the devices to which the battery is connected.
