LM741 Description
The LM741 series are general-purpose operational amplifiers that feature improved performance over industry standards like the LM709. They are direct, plug-in replacements for the 709C, LM201, MC1439, and 748 in most applications. The amplifiers offer many features which make their application nearly foolproof: overload protection on the input and output, no latch-up when the common-mode range is exceeded, as well as freedom from oscillations.

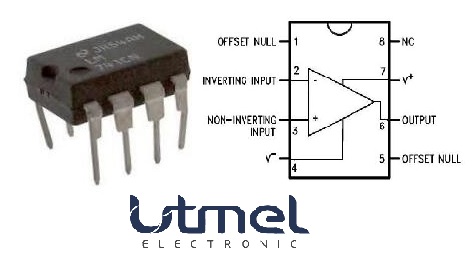

LM741 Pinout and Configurations
LM741 Applications
- Comparators
- Multivibrators
- DC Amplifiers
- Summing Amplifiers
- Integrators
- Differentiators
- Active Filters
LM741 Features
The electrical specs are discussed in this section. Overload protection is one of the most important characteristics of this op-amp. It also has overload safety for both inverting and noninverting pins. It has the following characteristics that distinguish it from other op-amps:
- No latch-up circuit requirement
- Freedom from oscillations
- Available in PDIP, CDIP, and TO99 packages
LM741 Equivalents
LM741A, LM741C, LM709C, LM201, MC1439, and LM748
LM741 Advantage
The LM741 is a multi-featured operational amplifier IC. The integrated circuit is available in a variety of packaging. The IC's internal circuitry contains a total of 20 transistors. The IC is suitable for a variety of analog tasks. It is suited for use in battery-operated circuits because of its high gain, low current consumption, and wide supply voltage. Furthermore, the IC is overload protected on both ends, i.e. input and output, which protects the IC's internal circuitry from damage caused by overload.
The following link will show you more details about LM741.
https://www.utmel.com/components/lm741-op-amp-datasheet-pinout-applications-equivalent-lm741-vs-lm358-faq-video?id=1896
How Does LM741 Working
When the voltage at the non-inverting input (+) is higher than the voltage at inverting input (-), then the output of the comparator is HIGH. And if the voltage of inverting input (-) is Higher than the non-inverting end (+), then output is LOW. The output of the operational amplifier is the product of the gain and the input voltage.
How to Safely Long Run LM741 in Circuit
It is recommended that ICs be kept under their maximum values for long-term good performance. If you want to use the lm741 IC in your projects/devices for a long time, don't use more than 500mW of power. The chip should not be operated at more than 22 volts, and the lowest operating voltage should be 10 volts. Always decouple power supplies using a 0.1uF capacitor and place it as close to the IC in your circuit as possible for best results. Always store and use the IC between -55 and +125 degrees Celsius.
The following link will tell you more details about LM741.
https://www.utmel.com/components/lm741-op-amp-datasheet-pinout-applications-equivalent-lm741-vs-lm358-faq-video?id=1896
