Check Valve Manufacturer in USA

avatar
SVR
Check Valve Manufacturer in USA

SVR Global is a prominent check valve manufacturer in USA. We have a broad product line of industrial valves to meet customer requirements. Our products in this diverse market provide another example of our customer-driven, problem-solving capabilities.


What is a Check Valve?


Check valves are classed as self-actuated, straight-line valves. An interesting feature of these valves is the possibility to set the valve opening with a specific pressure value, to ensure that the fluid reaches users, with a certain pressure value.


A check valve is a mechanical device that allows only unidirectional fluid flow. They are called 'One-way valves', 'Clack valves' or 'Non-return valves' since they only allow media to flow in one direction.


They have two media ports, one inlet and one output. Usually check valves are formed by a shutter, a spring and a gasket.


The operating principle is very simple: as soon as the fluid pumped into the pipe reaches a pressure value that overcomes the force of the spring, the shutter will open, and it will let the fluid flow through. The higher the fluid pressure, the bigger the shutter opening will be. When the pressure value falls below the value that counteracts the force of the spring, the shutter closes, preventing any backflow.


Applications of Check Valves:


Virtually every plumbing or fluid transfer application imaginable, be it industrial, commercial, or domestic, employs check valves. Check valves are often utilized for one of four reasons in a number of applications because of how they work:

  • To prevent backflow damage to downstream equipment
  • To avoid contamination as a result of reverse flow
  • To avoid siphoning
  • To maintain a vacuum seal


Advantages of Check Valves:

  • Backflow prevention
  • Capability to withstanding both high and low pressures
  • Can be utilized horizontally and vertically
  • Used as a backup and safety system
  • Self-actuated
  • Fast-acting
  • Reduce downtime and production losses.
  • Avoid water hammer.
  • Reduce unexpected valve failure.
  • Maintenance expenditures are reduced.
  • Adaptable to changing flow conditions
  • Operating without the use of electricity
  • Minimal pressure drop


Disadvantages of Check Valves:

  • Non-operational in pulsating system
  • The closing part may bang, resulting in seat damage and wear.
  • Work in a completely confined environment.
  • Impossible to tell whether they are open or closed.
  • Internal components cannot be examined.
  • Occasionally, discs become caught in the open position.
  • Slamming discs are noisy
  • Hammering with water
  • Problems with reverse flow
  • Tapping & Chattering
  • Disc banging in the open position, resulting in damage and wear.
  • Cannot be operated with fluid containing solid particles as they may accumulate between the seat and disc and stop the disc from closing.


Industries that use Check Valves:

Check valves are used in sewage, water treatment, medical, chemical processing, power generation, hydropower, petrochemical, and food, and beverage processing industries for effective backflow prevention. Offshore and onshore oil and gas production, gas plants, LNG, liquid gases, refineries, petrochemical, chemical, fertilizer, terminals, pipelines, power, desalination, water, and other industries all employ check valves.


Types of Check Valves-

Dual Plate Check Valve

Also known as Silent Check Valve, a Dual Plate Check Valve is an automatic mechanical non-return valve, which opens with a forward flow and shut to a reversal inflow. It consists of 2 discs attached to the valve body by a pin and operated by the action of springs, which immediately start closing the valve when the fluid stops.


Forged steel check valve

Forging steel check valves are compact, sturdy, and ideal for high-pressure and high-temperature applications. These are non-return valves that only operate in one direction. The body is built of forged steel and is available in two-port configurations: full and standard. A forged steel lid sits atop the body.

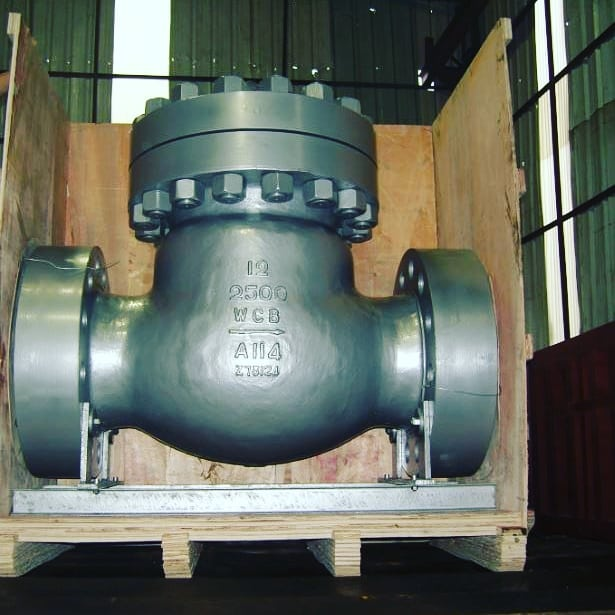

Swing Check Valve

Swing check valves use a swinging disc on a hinge to regulate the flow of a liquid, gas, or solid stream in one direction while preventing backflow from contaminating the source fluid. In other words, like all check valves, the swing valve is a non-return valve.

Swing check valves are the most common type of large check valve, and a typical example is a toilet flushing valve that rises and lowers. Swing valves normally require some type of physical motion to activate them, therefore manual twisting of the handle is a common subject. In some internal pipe systems, however, a spring check valve is integrated with the swing valve to eliminate the need for human intervention.


Description of Check Valves:

SVR Global is a prominent check valve manufacturer in USA that offers check valves having the following features-

Material:

All the valves are available under different materials based on media like Brass, Cast iron, Ductile iron, Carbon steel, Stainless steel, Duplex Steel, High Nickel Alloys, and Titanium.

Class:

150 to 2500; PN10 to PN450

Size:

1/2” to 40”

Ends:

Flanged, Wafer, Lug, Threaded, Buttweld, Socketweld


Visit us to know more about various valves provided by SVR Global - https://svrglobal.net/products/check-valve/
