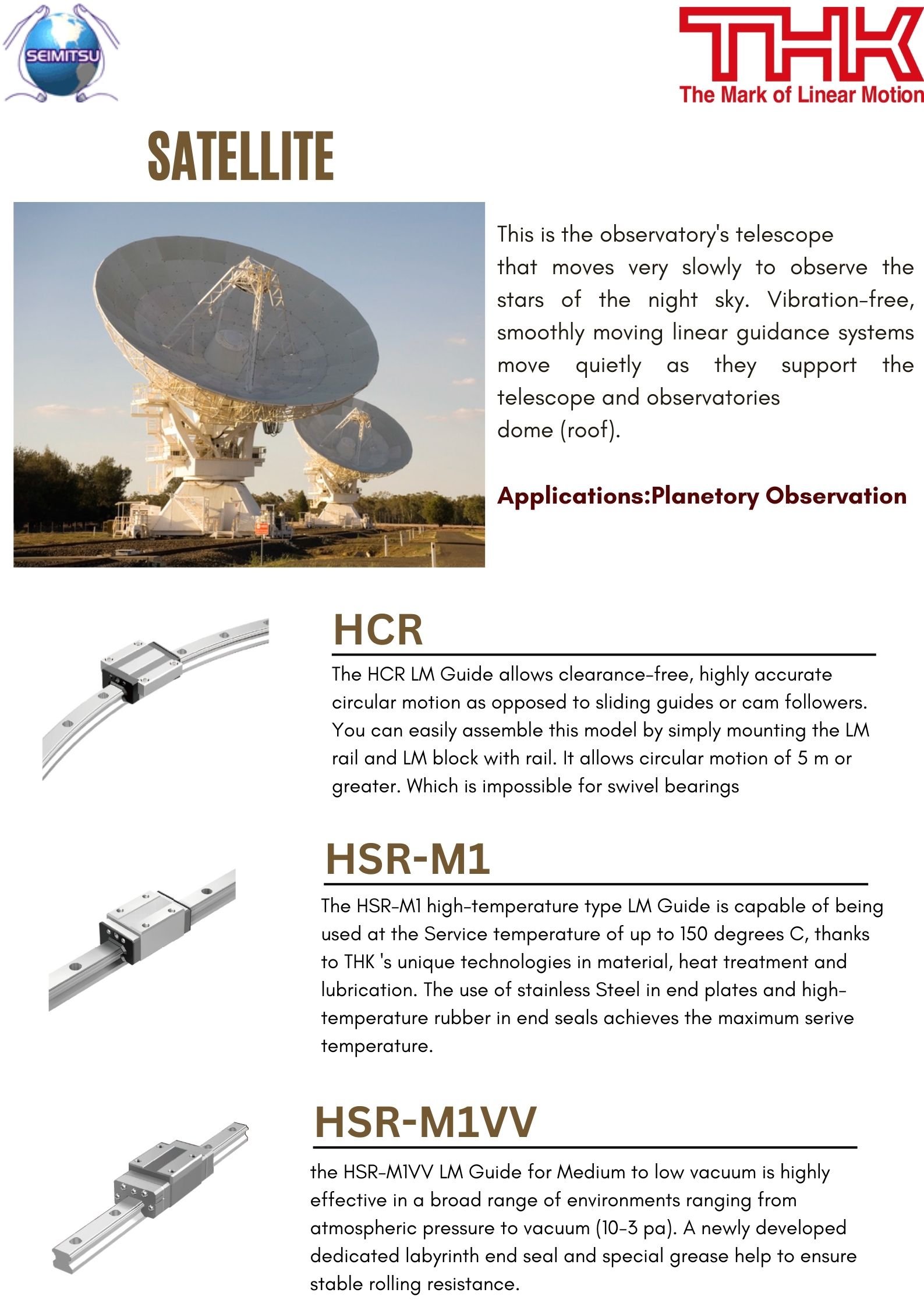

THK LM Guide Models HCR, HSR-M1 & HSR-M1VV use in Satellite for Planetary Observation

THK LM Guide Model HCR, HSR-M1 and HSR-M1VV uses in Satellite for the application of Planetary Observation.

This is observatory’s telescope that moves very slowly to observe the stars of the night sky. Vibration-Free, smoothly moving linear guidance systems move quietly as they support the telescope and observatories dome.

LM Guide Mode HCR: The HCR LM Guide allows clearance-free, highly accurate circular motion as opposed to sliding guides or cam followers. You can easily assemble this model by simply mounting the LM Rail and LM block with rail. It allows circular motion of 5 m or greater. Which is impossible for swivel bearings.

LM Guide Model HSR-M1: The HSR-M1 high temperature type LM Guide is capable of being used at the service temperature of up to 150° C thanks to THK’s unique technologies in material, heat treatment and lubrication. The use of stainless steel in end plates and high temperature rubber in end seals achieves the maximum service temperature.

LM Guide Model HSR-M1VV: The HSR-M1VV LM Guide for medium to low vacuum is highly effective in a broad range of environments ranging from atmospheric pressure to vacuum (10-3 pa). A newly developed dedicated labyrinth end seal and special grease help to ensure stable rolling resistance.

Here in India, SEIMITSU Factory Automation Pvt. Ltd. is an authorized distributor of THK and for getting detailed technical information or selection parameters about THK Linear Guideways please do contact us.

Reference link: https://www.seimitsu.in/THK-Linear-Motion-LM-Guide-Full-Ball-Type-LM-Guide.html

Click here to download technical catalogues: https://www.seimitsu.in/pdf/E_01_LMGuide.pdf

For more details contact us: +91 9975185459

Concern Person Email Id: [email protected]
