What are the different concrete scanning methods used in Dubai?

Concrete scanning is a class of non-destructive tests (NDT) that can identify and measure sub-surface anomalies and faults (targets).

Over the past few decades, several scanning technologies in Dubai have been created.

There are different methods used for concrete scanning in Dubai.

◈Ground Penetrating Radar

◈Ultrasonic Tomography

◈X-Ray Scanning

◈Half-Cell Corrosion Mapping

◈Seismic Tomography

Additionally, the fundamental physics of electromagnetic and ultrasonic wave propagation in solids has been designed to address specific problems in foundations and particular constructions such as mass concrete dams.

1. Ground Penetrating Radar — GPR

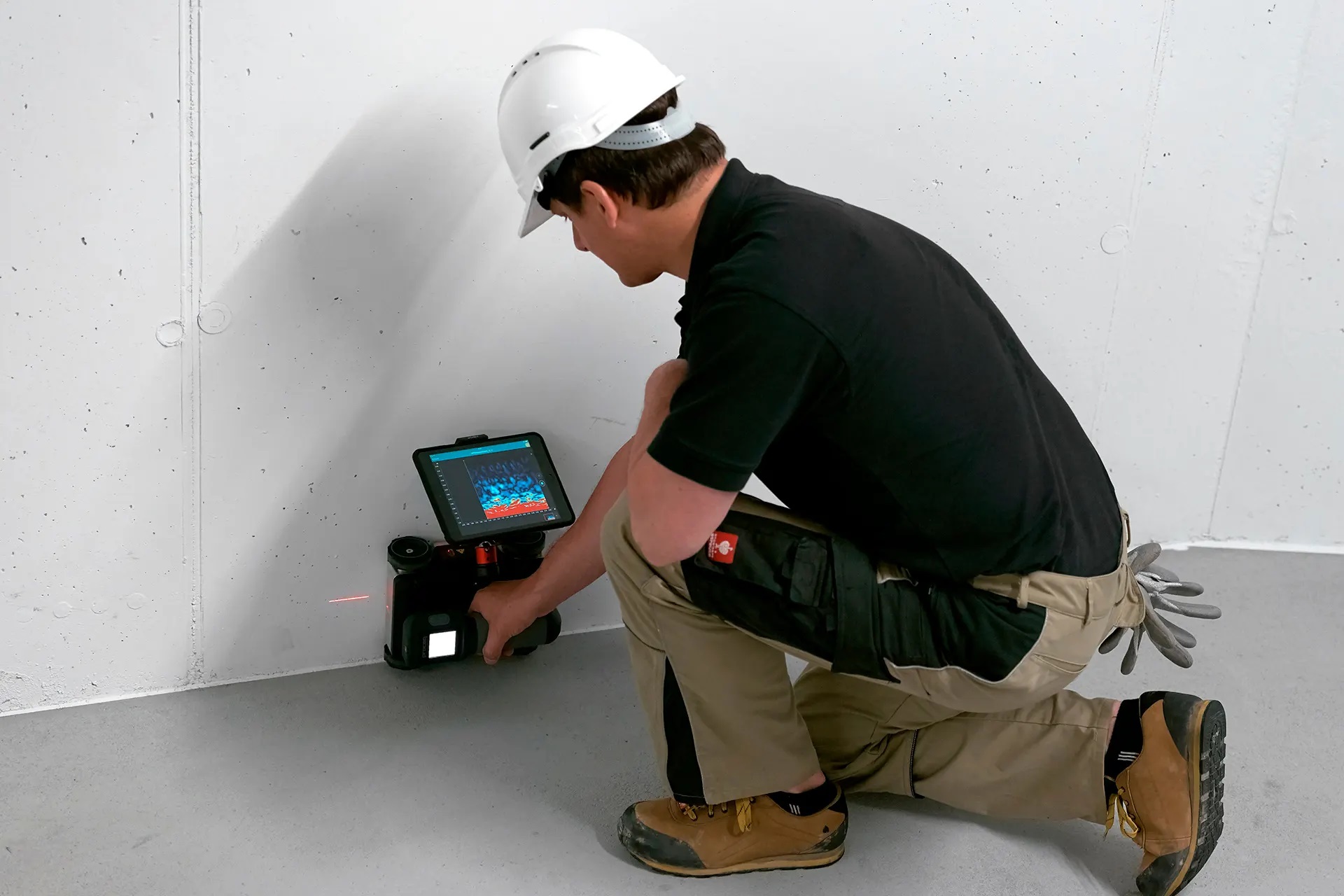

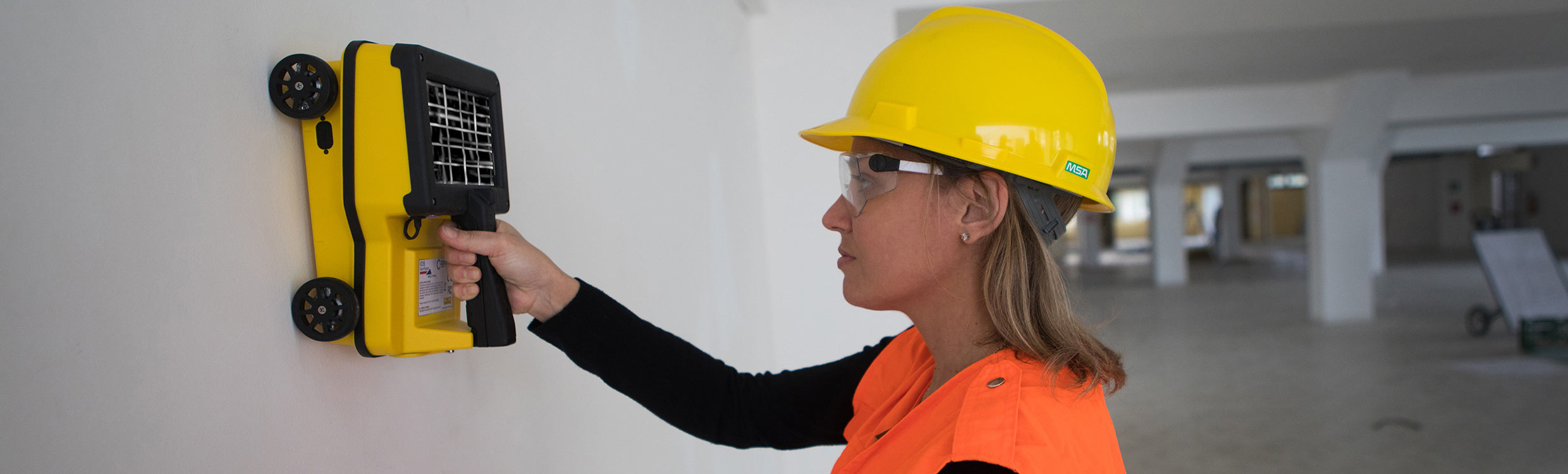

An extensively utilized non-destructive technique for scanning concrete is ground penetrating radar (GPR).

GPR scans concrete using electromagnetic radiation that is pulsed. A signal processing unit, a transmitter antenna, and a receiver antenna make up a GPR.

To scan the subsurface medium, GPR releases electromagnetic pulses (radar pulses) with predetermined center frequencies.

The reception antenna records the waves that are reflected off of objects and underlying layers.

2. Ultrasonic Tomography — Pulse Echo

Concrete imperfections and subsurface voids can be scanned using ultrasonic tomography.

Ultrasonic shear waves are used in tomography to examine the multilayer characteristics of concrete.

The idea behind this technique is based on how stress waves go through different kinds of materials.

At an accessible surface, a transmitter transmits a stress pulse into the item.

At the interface of internal targets, the pulse is reflected after propagating inside the test item (air voids, steel bars, boundaries).

At the receiving transducer, the emitted impulse and the reflected acoustic waves are both tracked.

The location and size of internal anomalies are reconstructed using mathematical solvers.

3. X-Ray Scanning of Concrete

Concrete X-Ray imaging is quite similar to X-Ray imaging performed in imaging labs.

X-ray scanning and imaging of concrete can be carried out utilizing traditional techniques or digital media.

The primary distinction is in image processing. Steel bars can be located in strongly reinforced parts using an X-Ray scan.

Corrosion of a half-cell Using potential mapping, locate areas more likely to experience corrosion.

4. Half-Cell Corrosion Potential Mapping

An efficient technique for determining the possibility of corrosion activity in concrete buildings is half-cell corrosion mapping.

The principle behind the Half-Cell Test is to measure the electrochemical potential difference between any location on the concrete surface and a transportable standard half-cell, usually a Cu/CuSO4 (CSE) standard reference electrode.

The test is typically run on a methodical grid, and measurements are frequently shown as a spatial distribution of potential value (2D contour maps).

5. Seismic Tomography for Mass Concrete

A unique test setting called seismic tomography is based on the idea of ultrasonic pulse velocity.

The sending transducer is moved over a predetermined grid while an array of numerous receiving transducers are fixedly installed in the test sites.

Receiving transducers take in the pulse that the transmitter produces. Every trajectory’s pulse velocity is measured.

A seismic tomography contour map in 2D or 3D that displays the state of the concrete components serves as a visual representation of the findings.

Seismic tomography is the best method for inspecting substantial concrete structures.

These are the different types of concrete scanning methods in Dubai.
