Wire mesh is a versatile material that has numerous applications in a variety of industries, including construction, agriculture, and manufacturing. In this blog, we will discuss the different types of wire mesh and their applications.
What is Wire Mesh?
Wire mesh is a grid of interconnected metal wires that are woven or welded together. The wires can be made from various materials, including stainless steel, aluminium, copper, and brass, among others. Wire mesh comes in various sizes, shapes, and configurations, depending on the application.
How is wire mesh made?
One of the more typical methods of creating wire mesh is to fuse or weave the intersecting wires together. The common method for creating solid wire is to gradually draw down a metal through a number of round dies until the necessary diameter is reached.
High quality wire mesh, made from 304 or 316 Stainless Steel wire, is stocked by Bhansali Wire Mesh as standard. Many specifications are also available in other metals, such as Plain Mild Steel, Galvanised Steel, Monel and Non-Ferrous Metals.
Types of Wire Mesh:

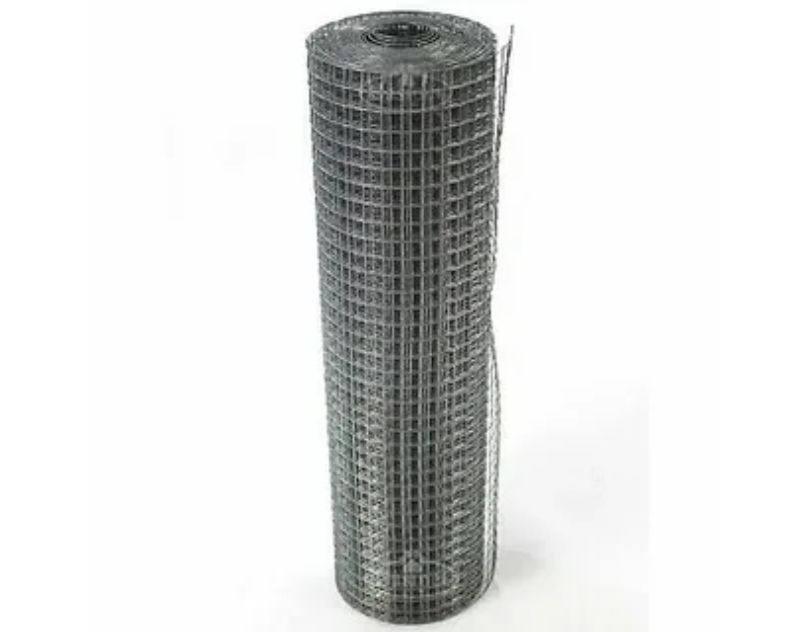

Welded Wire Mesh - Parallel wires are arranged in rows and columns that intersect and are welded together to form welded wire mesh. The wire is put into a machine that joins the numerous rows of wire at their intersection once it has been pulled down to the correct size.
Where the perpendicular lines converge, a parallel line of welds is produced concurrently while the mesh is fed through the machine. In order to connect each row of wires, the next intersection of wires is then sent through the machine to be welded. Typically, this equipment uses electrical resistance as the heat source to fuse the wires. Although there are various welding techniques available, this is typically the most cost-effective. Welded wire mesh is cut with a shear after it has reached the desired length, producing a flat, unyielding sheet of welded wire mesh.

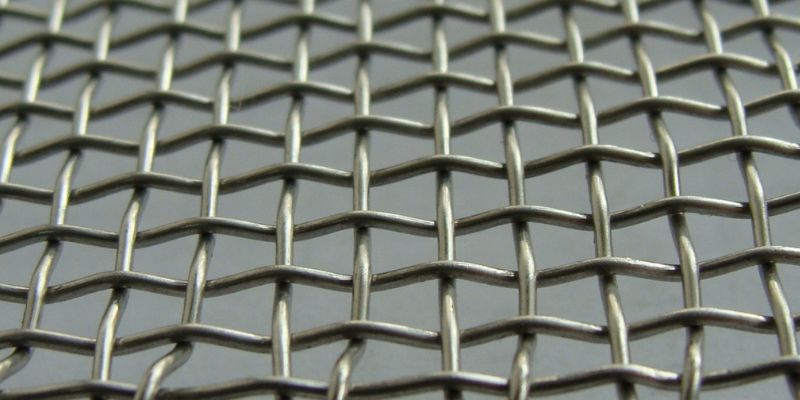

Woven Wire Mesh - The array of intersecting wires in woven wire mesh resembles the weave of a fabric. Usually, a sturdy sheet is created by weaving the wires over and under the perpendicular wires. The term "Plain Weave Mesh" refers to this design. A "Twill Weave" can be utilised in applications where a more flexible sheet is needed.
This includes weaving wire over two parallel wires, then beneath the following pair of parallel wires, and so on. There are no welds on woven wire mesh. Instead, they are fed into a device resembling a loom that weaves a straight wire across the pattern of your choice. The next straight wire is then run through the pattern once the wires have been bent in the other direction. The finished wire mesh sheet is then trimmed to the required size after the machine repeats this procedure until the desired dimensions are achieved.
Knitted Wire Mesh - Knitted wire mesh is made by knitting together the wires in a looped pattern. It is used in automotive, aerospace, and chemical processing applications.
Expanded Metal Mesh - Expanded metal mesh is made by stretching a flat sheet of metal and cutting it into a pattern. It is used in walkways, platforms, and fencing.

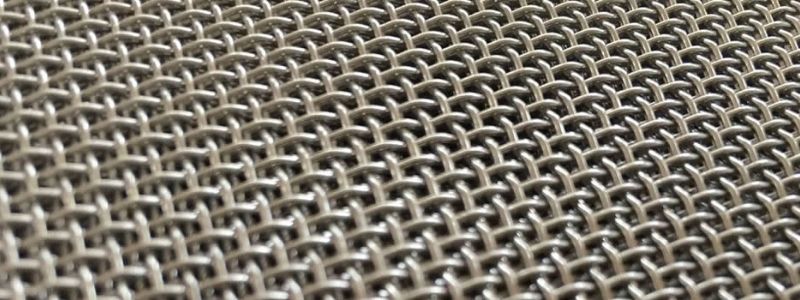

Different Types of Wire Mesh Weaves:
Pre-Crimp Weaves: Pre-crimped woven mesh is made using wire that has been crimped before it is woven, providing it two main advantages over plain weave mesh: Because it is more rigid, it is better suited for heavy-duty applications. Because the aperture is more consistent and exact, it is more suited for filtration.
Plain Weaves: This is the most frequent weave pattern for wire cloths. There is no pre-crimping before the wires are braided in this example. The crimping of both the warp and the shute is caused by the plain weave pattern, which requires each shute wire to pass over and under successive rows of warp wires.
Filter Cloth: Filter cloth is made of woven wire mesh with a heavier Warp wire than Shute wires. Filter cloth is more durable when it has a heavier warp wire. It also means that when used as a filter, filter cloth has a high flow rate, making it easy to clean and versatile.
Twill Weave: Individual wires in one direction run over two and beneath the next two cross wires in a twill weave. This weave is less stiff than plain weave, yet it is frequently employed in very fine meshes.
The Globally Recognised Manufacturer and Supplier of Wire Mesh
Bhansali Wire Mesh is one of the best Wire Mesh Manufacturers in India in addition to Perforated Sheet Manufacturer in India. We sell high-quality wire mesh to a wide range of wire drawing manufacturers around the world. Furthermore, we produce wire mesh from a variety of materials such as Nitronic, Inconel, and Monel. We also export wire mesh to countries such as Oman, the United Arab Emirates, Qatar, the United States, and others.
Wire mesh is a versatile material that has numerous applications in various industries. The different types of wire mesh, including welded, woven, knitted, and expanded metal mesh, can be used for different purposes. Wire mesh is commonly used in construction, agriculture, filtration, screen printing, and automotive applications.
