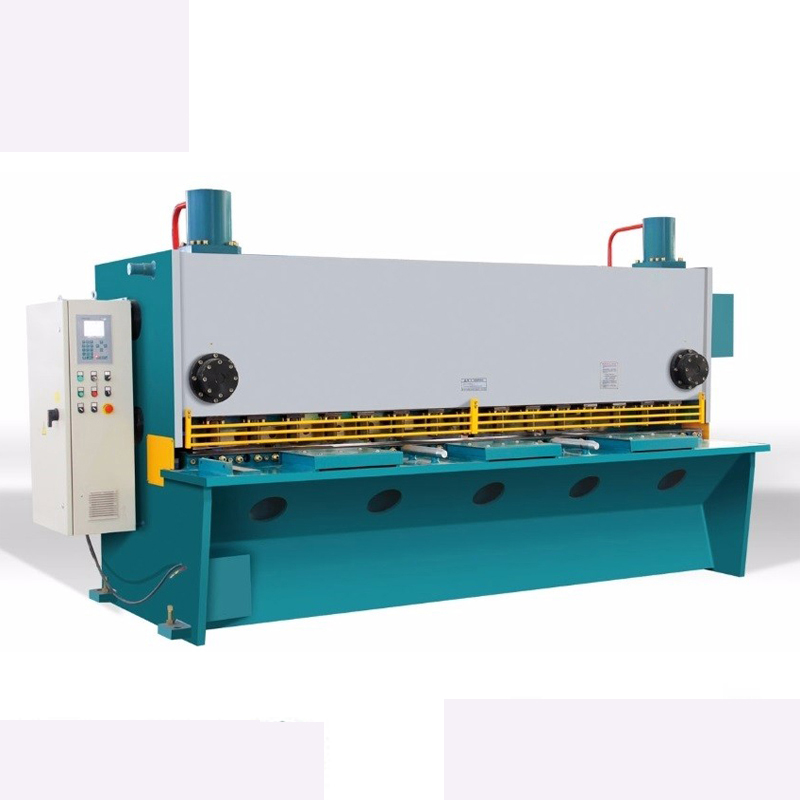

Hydraulic Guillotine Shear QC11Y
A hydraulic guillotine shear is a type of sheet metal cutting machine. It is a versatile tool that can shear various materials and also provide a fast cut.
The QC11Y series of shears features premium blades and a variety of other advanced options that allow for greater production. It is a top choice for machinists in many industries.
1.Full-side blades
The hydrauilc guillotine shear QC11Y is a heavy-duty shear capable of accurate shearing of mild steel up to 40mm thick. Its frame and cutting beam offer maximum rigidity, resistance to deflection and tensional force to ensure a clean, square edge and exact working tolerances.
Welded steel plate structure, heating to eliminate stress, high strength and good rigidity, with an advanced integrated hydraulic system. It is very reliable and easy to maintain.
Adjustable rake angle minimizes plate deformation and enhances shearing quality. The upper blade use inner-falling structure, making it easy to plate shear and increase plate precision.
2.Rectangle blades
The Hydraulic guillotine shear QC11Y has a rectangular blade with four cutting edges. It can shear stainless steel, aluminum and other metal sheets. It has a long service life and can shear thicker sheet metal.
The machine's frame is welded with steel plates. It is heating to eliminate stress, has good rigidity and stability.
It uses advanced integrated hydraulic system with good reliability; it adopts three-point supporting rolling guide to eliminate rail gap and improve shearing quality. It has motor-driven back gauge, manual fine adjustment and digital display.
The shearing process is by moving upper blade and fixed lower blade to apply a reasonable blade gap to apply shearing force to various thickness metal plate so that the plates can be broken and separated according to the required size.
3.Adjustable blade clearance
The Hydraulic guillotine shear QC11Y as well as hydraulic swing beam shear has an adjustable blade clearance, which helps in fine shearing results. It also reduces the distortion of sheet metal.
The blades of the guillotine shear are rectangular in shape, with four available cutting edges. They are made from 9CrSi or 6CrW2Si material, which is rigorously tested to provide high rigidity and quality results.
It is used for shearing sheet metal and plate metals. The guillotine shear can be operated manually or with an electric motor.
4.Adjustable shearing angle
A hydraulic guillotine shear is a machine that shears a metal sheet by reciprocating linear motion with one blade relative to the other blade. It applies a reasonable blade gap to apply shearing force to the metal plates of various thicknesses, so that they can be broken and separated according to the required size.
Hydraulic shearing machines are compatible with advanced integrated hydraulic systems for reliable results and accurate shearing. They also have handwheels that can be used to quickly adjust the gap between the plates.
The QC11Y Hydraulic guillotine shear has an adjustable shearing angle that reduces the deformation of the sheet. It also has a three-point bearing rolling guide that eliminates bearing clearance and improves cutting quality.
5.Motorized back gauge
The Hydraulic guillotine shear QC11Y has a motorized back gauge which is easy to use. This back gauge can be adjusted in several ways, including the blade clearance and rake angle.
This back gauge can be a great way to ensure accuracy and precision on any project. It also helps to cut metal with minimal waste.
The Hydraulic guillotine Shear QC11Y is a powerful tool for cutting and separating metal sheets of various thicknesses. It is suitable for a wide range of industries, such as automotive, construction, shipbuilding, and electric power. It is especially helpful for transforming scraps into new products.
6.Digital display
Hydraulic guillotine shear QC11Y and hydraulic press brake are impressive machine, with a few tricks up its sleeve. It has a number of advanced features, including the digital display, which is a nod to the latest in machine technology.
The most impressive feature is the LED lighted blade, which can be operated with a single hand and offers improved productivity in comparison to traditional blades. Its cutting performance and longevity are unmatched. It also has a cleverly engineered blade positioning system, which is a must for optimum shearing results. Its shearing capabilities are matched by its user-friendly controls and safety features. It is a clear choice for any sheet metal engraver.

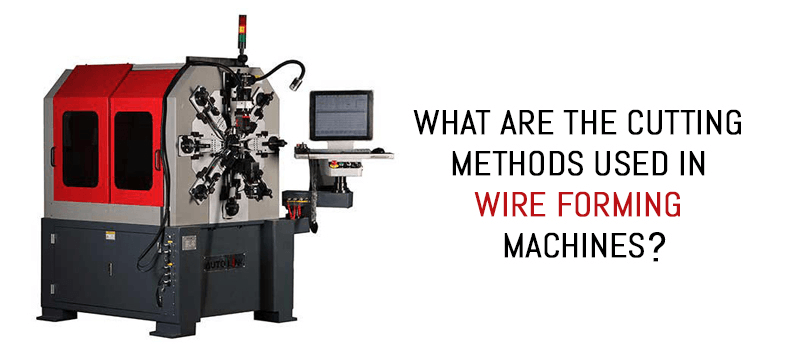

The wire forming machine process the wire by feeding, straightening, bending forming and cutting to produce the desired wire forming part.
Cutting is a very important step of the whole process of wire forming machine.
If there is any issue in cutting performance, it will affect the overall processing efficiency, precision and molding quality.At present, the most common cutting methods used in wire forming machines are servo shearing and hydraulic shearing.
Autolink Technology Co., Ltd explains you the difference between two cutting methods.Servo Shearing:Servo-controlled method of cutting wires.The speed reducer is installed in the middle of the machine.It is lightweight, fast and powerfulThe cutting surface is smooth and flat.It is easy to cut the thick wire diameter and solve the high failure rate.The problem is that the cutting is quick and convenient, and the production efficiency is improved.Hydraulic Shearing:This cutting method is the same as that of the hydraulic dilator.Hydraulic fluid flows into the hydraulic cylinder and pressure is applied to the piston for cutting.The hydraulic shear has a large cutting head and is not suitable for the fine cutting.If hydraulic shear is used for a long time to break the diameter of the thick wire, it is easy to cause oil leakage or other minor malfunctions.It is a better choice to use Servo Shearing.
Every part of the wire forming machine processing process is very important.
Autolink Technology Co., Ltd is a manufacturer and supplier of wire forming and wire bending machines.
