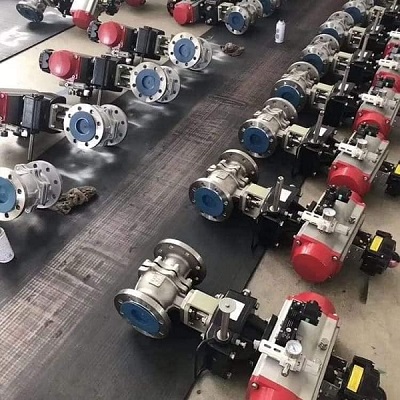

Pneumatic actuated ball valve in Riyadh

Middleeast valve is the largest  Pneumatic actuated ball valve in Riyadh. We supply to cities like Dammam, AI Khobar, AI Jubail, and Jeddah.

Description:

Body Material: Cast steel (WCB, WCC, WC6, LCC, LCB), Stainless steel (SS304, SS316), Carbon steel(CF8, CF8M),

Class: 150 to 2500; PN10 to PN450

Size: ½” to 4”

End: Buttweld, Flanged, Socket weld, Threaded

Operation: Pneumatic actuated ball valve

Configuration of a Pneumatic Actuator:

• 4-20 amp
• Pneumatic single acting actuators
• Pneumatic double acting actuators
• Pneumatic rotary actuators
• Pneumatic Scotch and Yoke actuators
• Pressure: 228 bar

Temperature:

• Standard -4°F to 200°F (-20°C to 93°C)
• Low -40°F to 176°F (-40°C to 80°C)
• High 0°F to 300°F (-18°C to 149°C)

A pneumatic actuated ball valve is a type of valve that uses compressed air or gas to control the opening and closing of a ball inside the valve body. It is commonly used in industrial applications where remote control or automation is required.

The valve consists of a hollow ball with a hole through its center, known as the bore. When the ball is rotated 90 degrees, the bore aligns with the flow path, allowing fluid or gas to pass through. In the closed position, the bore is perpendicular to the flow path, preventing the passage of fluid or gas.

The pneumatic actuator is attached to the valve body and is responsible for rotating the ball. It converts the energy from compressed air or gas into mechanical motion to open or close the valve. The actuator typically has a piston or diaphragm that moves in response to the air pressure, which in turn rotates the ball.

Middleeast valve is the best Pneumatic actuated ball valve in Riyadh and have simpler designs, require fewer components, and are easier to install and maintain. The availability of compressed air or gas in many industrial settings makes pneumatic actuation a convenient and economical choice.

Advantages:

1. Quick and easy operation

2. Simple design

3. Wide temperature and pressure range

4. Minimal leakage

Applications:

1. Process control

2. Industrial piping

3. Heating and cooling systems

4. Chemical processing

Industries:

· Textile Industry

· Water Industry

· Construction Industry

· Electric Power Industry
