Unveiling the Precision: A Deep Dive into Zero Backlash Gearboxes

Introduction:

Zero Backlash gearboxes have become synonymous with high-precision applications that demand accurate positioning. To understand the significance of zero backlash, let's understand the mechanical concept of backlash and its role in ensuring seamless gear operation.

Defining Backlash:

In mechanical terms, backlash represents the clearance between two mating gears, allowing for smooth operation. Simply put, it refers to the angle that the output shaft of a gearhead can rotate without the input shaft moving.

Measuring Backlash:

Backlash is quantified in degrees, and this angle is further broken down into minutes and seconds. When Deg. is dissected by 1/60th, we get one arc minute, and another dissection of arc minute gives us one arc second. In the context of moving gears, their path forms a circle, and a small portion of this circle is referred to as an arc.

Understanding Arc-Min and Arc-Sec:

Backlash is essentially measured in the lost motion, represented by an arc. This measurement is expressed in arc-minutes (arc-min) or arc-seconds (arc-sec), capturing the precision of the gear movement.

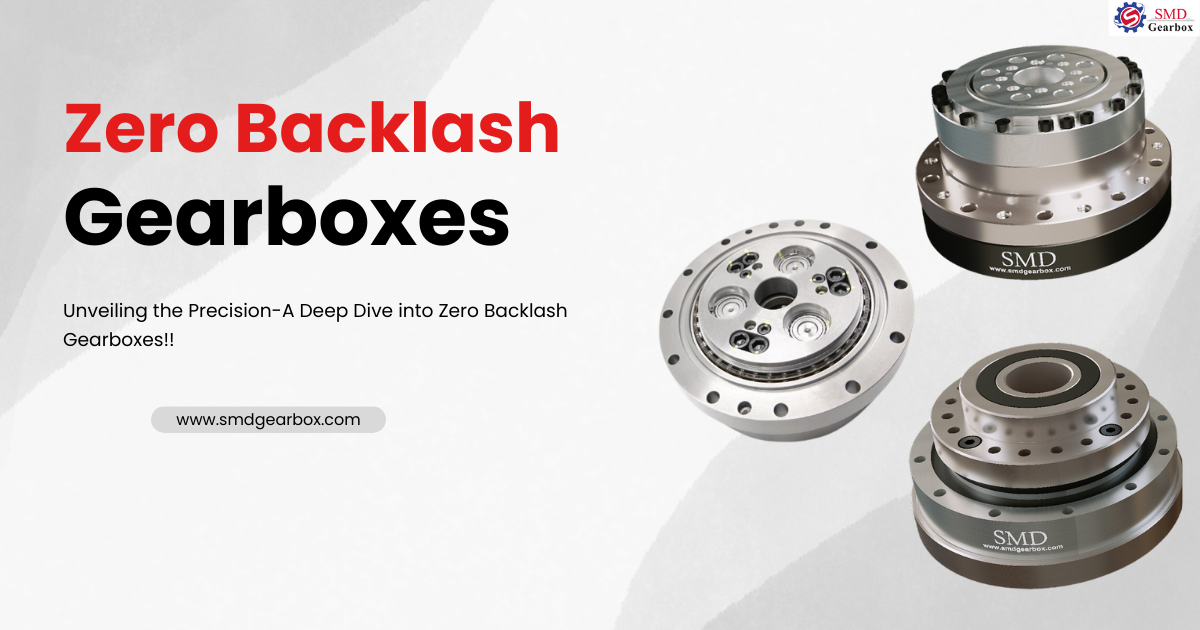

Zero Backlash Gearboxes by SMD:

When we talk about zero backlash gearboxes, we are specifically referring to backlash measured in arc-seconds. Notable examples from SMD include the Harmonic Series, SCSG Series, and SSHG Series, showcasing high precision with backlash as low as 6 arc-seconds.

Advantages of Zero Backlash Gearboxes:

1. Unparalleled Precision: Zero backlash gearboxes ensure precise positioning in applications where accuracy is required.
2. Enhanced Efficiency: The elimination of backlash contributes to improved efficiency by minimizing any lost motion in gear systems.
3. Optimal Performance: Applications requiring seamless motion and tight tolerances benefit from the optimal performance delivered by zero backlash gearboxes.
4. Reduced Wear and Tear: With minimal play between gears, the wear and tear on components are significantly reduced, leading to increased longevity.
5.


Zero Backlash equivalent SMD Gearbox

1). SMD Cycloidal Gearbox: - SMD Cycloidal Gearbox also known as Cycloidal Drive are designed for smooth and precise motion. Unlike traditional gears with teeth, cycloidal gearboxes use eccentric cams to create a wave-like motion, ensuring a continuous and vibration-free operation. The uniqueness lies in their ability to distribute loads evenly, reducing wear and tear on components. This Gearbox are typically employed in 1^st or 2^nd Axis of industrial robot due to the excessive amounts of axial loads and torque requirement at those axis

Application

1). In Robotics

2). In Antenna Positioner

3) In Machine tool Industries

2). SMD Harmonic Gearbox (SCSG): - SMD Harmonic gearboxes are advanced mechanical devices known for their precision in motion control applications. This Gearbox utilizes wave-generator and flexible spline to achieve Higher reduction ration and unparalleled accuracy. Unlike conventional gear systems, harmonic gearboxes minimize backlash, making them exceptionally suitable for applications demanding precise and controlled movements like robotics.

Application

1). In Medical industries for patient beds

2) In Solar panel positioning

3) Printing Press machine

3). SMD Harmonic Gearbox (SSHG Series):

This Series is similar to the SCSG Harmonic gearbox but the difference lies in the mounting. SMD SSHG Series has larger mounting flange and hollow shaft design. This helps in attaching bigger size application such as index table, Rotating station, etc. Also, the hollow shaft design make is suitable to impart motion thorough belt or chain drive. Most suitable application for SSHG Series is in 5^th Axis of Industrial Robot where the power sometimes has to be transferred in 180 degree.

Application

1). CNC Machining

2). Automated Packaging

3) Dentist patient chair

Conclusion:

Zero backlash gearboxes represent incredible precision engineering, offering unparalleled accuracy and reliability in applications that demand high standards. SMD's line-up of zero backlash gearboxes stands as a testament to the commitment to delivering top-tier performance in the world of high-precision gear applications.

SMD Gearbox provides various types of Servo Gearboxes such as Planetary, Right Angle, Hollow Rotary, Harmonic etc. SMD experienced Technicians are in close contact with the customers to provide a proper UpToDate solution. SMD Gearbox are widely used in Automation, Automobile, Pharmaceutical, Aerospace, Engineering, Medical, Agriculture, Machine tool, etc. Industries.
