Oilfield Drill Bits: The Foundation of Drilling Operations

Oilfield drill bits are one of the most important tools used in the oil and gas drilling process. They play a critical role in extracting oil and natural gas deposits from deep underground reservoirs. Without efficient and robust drill bits, drilling operations simply would not be possible. In this article, we will explore the different types of drill bits used in oilfield operations and how their design and functionality has evolved over time to support modern drilling technologies.

Types of Oilfield Drill Bits

There are three primary types of drill bits used in oil and gas drilling - fixed cutter bits, roller cone bits, and diamond bits. Each type has its own advantages depending on the formation being drilled.

Fixed Cutter Bits

Fixed cutter bits, also known as drag bits, have cutting elements fixed to the face of the bit. These cutting elements, usually made of tungsten carbide, scrape and shear away rock as the bit rotates. Fixed cutter bits work best in soft, relatively unconsolidated formations like shale, coal, and chalk. They tend to drill faster than roller cone bits in such formations. However, they do not hold up as well in hard, abrasive rock.

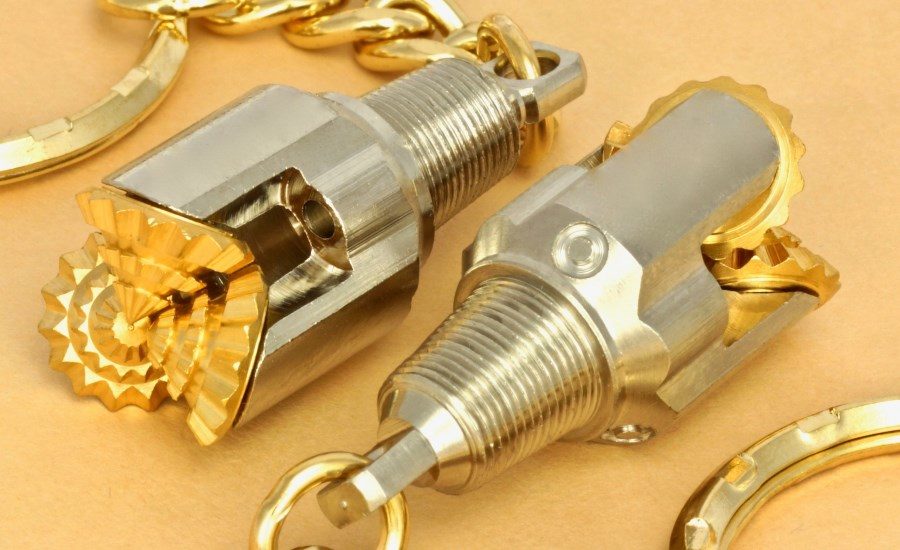

Roller Cone Bits

Roller cone bits use rolling cones, usually three, that dot the face of the bit. Each cone is set with cutting elements, usually tungsten carbide inserts, that crush and grind the rock as the cones roll and slide across the bottom of the wellbore. Roller cone bits are durable and can drill a wide range of formation hardness, from relatively soft to very hard and abrasive. They are commonly used when drilling through formations containing sand, silt, and hard shale.

Diamond Bits

Diamond Drill Bits use industrial diamonds as the cutting elements. Set in a metal matrix, these superhard cutting faces allow diamond bits to drill the hardest geological formations with great efficiency. They are primarily used for drilling through hard rock like granite, basalt, and limestone. Fixed cutter diamond bits are best for horizontal and directional drilling applications.

Evolution of Drill Bit Design

Oilfield drill bits have evolved significantly since their early inception in the 1800s to keep pace with drilling technology improvements and challenging downhole conditions. Some key advances include:

- Tungsten Carbide Inserts - Replacing jagged steel teeth with removable tungsten carbide cutters in the 1930s drastically improved bit durability and longevity.

- PDC (Polycrystalline Diamond Compact) Cutters - Developed in the 1970s, PDC cutters embedded with synthetic diamonds delivered far greater hardness for drilling hard rock formations. They became popular on fixed cutter bits.

- Roller Cone Improvements - New cone and bearing designs in the 1980s reduced wear and improved stability for directional drilling. Hardfacing applied to cones added longevity.

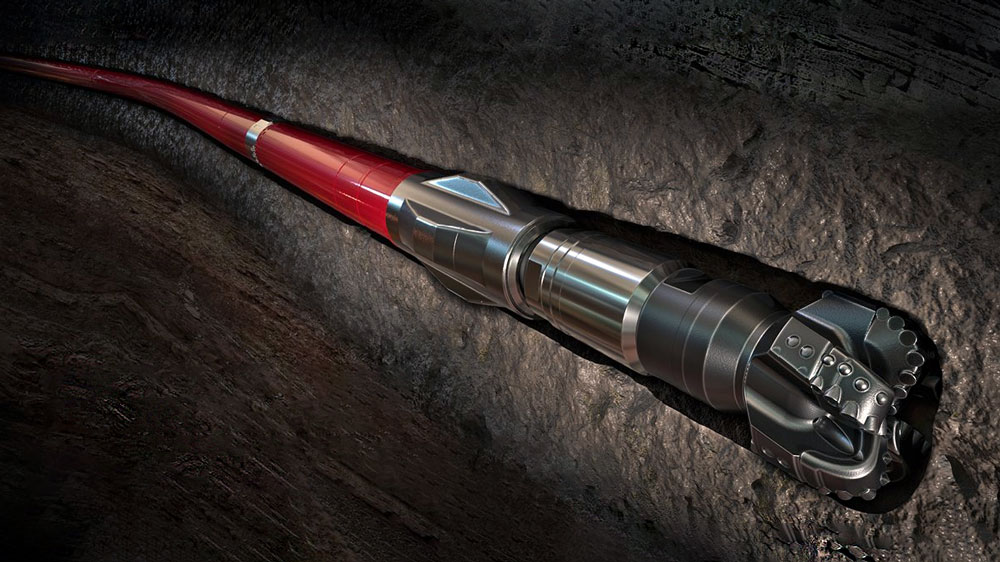

- Bottom Hole Assembly Design - Integrating relevant sensors and optimizing spatial arrangement of drill bit, stabilizers, and other BHA components afforded better weight transfer, directional control for extended runs.

- Bearing Seals - More robust bearing seals starting in the 1990s kept dangerous drilling fluids and cuttings out of bearings for reliable performance in harsh downhole conditions.

- Impregnated and Coated Bits - Applying advanced coatings reduces friction and wear, optimizes hydraulics, and improves durability for extended bit runs even in abrasive sections.

Towards the Future

Looking ahead, drill bit innovations are expected to continue advancing efficiency and performance. Some promising areas of ongoing research and development include:

- Nanoparticle Applications - Utilizing nanoparticles in the tungsten carbide matrix and on bit surfaces to decrease friction and wear, optimize hydraulics and fluid flow properties.

- 3D Printed Elements - Three-dimensional printed PDC cutters, nozzles and hybrid functional elements could deliver customized, optimized designs for specific applications and formations.

- Sensor Technology - Integrating more robust sensors into bits will provide real-time data on downhole conditions, failure detection and improved steering functionality.

- Formation Specific Designs - Software modeling and big data will enable drill bit designs tailored to the unique parameters of specific reservoirs globally for optimized drilling campaigns.

Oilfield drill bits represent the critical foundation upon which the success of drilling operations is built. Decades of innovation have transformed these tools to handle today's most advanced technologies and challenging geological formations around the world. Looking ahead, continued advancements in materials science, manufacturing techniques and downhole technologies promise to take drill bit performance - and the economics of oil and gas production - to new heights.
