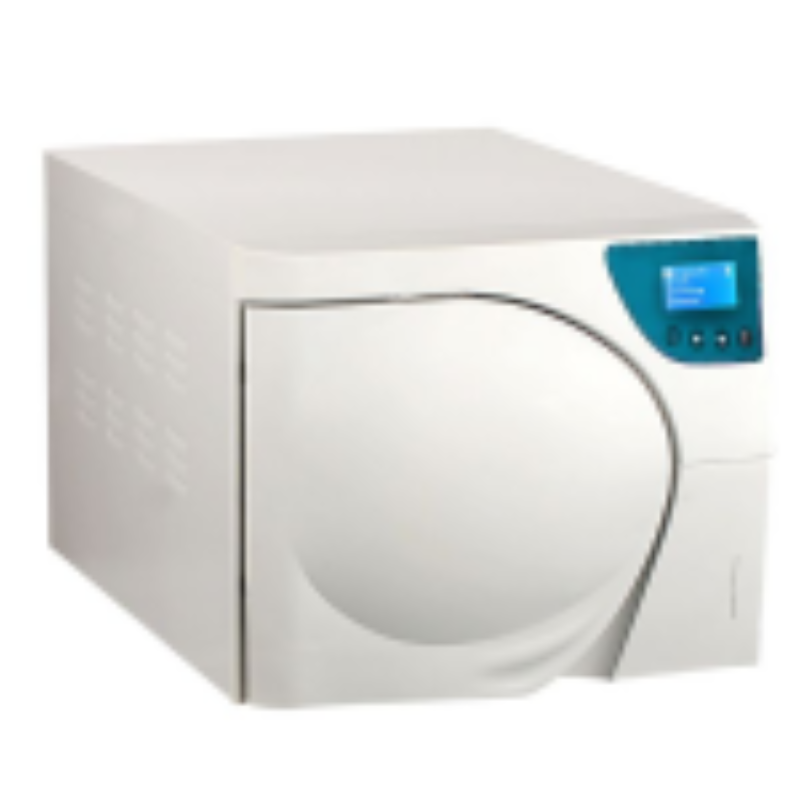

Labexpo Medical Autoclave: High-Performance Class B Fractionated Sterilization
The Labexpo Medical Autoclave is a cutting-edge Class B fractionated automated autoclave designed for precision sterilization in medical and laboratory settings. Equipped with 8 versatile sterilization systems and 2 test programs, this autoclave can be easily monitored and controlled via a computer interface, ensuring meticulous oversight of the sterilization process.
Key safety features include an automatic power shutdown mechanism that activates in case of overheating and an alarm system to signal low water levels, preventing potential damage and ensuring user safety. The autoclave also features automatic power and water cut-off with an alarming indicator in the event of water shortages, further enhancing its reliability and safety.
With a 17-liter capacity, the Labexpo Medical Autoclave can accommodate a substantial amount of instruments for sterilization. It operates with a sterilization time ranging from 4 to 20 minutes at temperatures of 121 °C and 134 °C, suitable for a wide range of sterilization needs. The unit is equipped with 2 stainless steel trays, providing ample space for instrument placement while ensuring efficient and thorough sterilization. The chamber dimensions are 250 mm in diameter and 380 mm in depth, while the overall dimensions are 480 × 560 × 420 mm. The autoclave has a net weight of 33.5 kg and a gross weight of 42 kg, making it a robust yet manageable unit. It operates at an input power of 1200 W and is compatible with power supplies of 220 ± 10%, 110 V, 50/60 Hz, 20 A. A minimum desk size of 480 × 400 mm is required for installation.
The autoclave features a digital LCD display that allows for real-time monitoring of working status and parameters, providing clear and user-friendly control. The working temperature is maintained at a consistent 134 °C, ensuring the effectiveness of the sterilization process. The automated drying function ensures that instruments are dried thoroughly after sterilization, reducing the risk of contamination and extending the longevity of the instruments.
The door lock feature is designed to prevent the door from being opened until the internal pressure drops to a safe level of 0.027 MPa, ensuring safe operation. The self-inflating leak-proof chamber enhances durability and reliability, while the safe door lock system provides additional protection during sterilization cycles. The autoclave's stainless steel sterilizing shelves offer a durable and hygienic surface for instruments.
In summary, the Labexpo Medical Autoclave combines advanced technology, safety features, and user-friendly design, making it an excellent choice for effective and reliable sterilization in various medical and laboratory environments.
