What is Generative Design?A generative design process utilizes algorithms and computational tools to automate the generation of design alternatives that meet given goals or specifications. With it, designers define metrics like strength, weight or cost that matter most for a particular application. They then allow algorithms to explore thousands of design possibilities in a fraction of the time it would take humans alone. The software essentially designs on its own within predefined constraints set by engineers and manufacturers.BenefitsSome key benefits that it provides over traditional manual design processes include:Exploring the Design Space More ThoroughlyGenerative Design algorithms can evaluate exponentially more design options than humans are capable of exploring alone. This allows designers to reach optimized designs that may have otherwise been overlooked. By exploring the full design space, it leads to stronger, lighter and more innovative solutions.
Accelerated Product DevelopmentWith it, prototypes can be produced in hours or days rather than the weeks or months of traditional design processes. This dramatically reduces development timelines and gets new products to market faster. Early concepts that take days or months for engineers to conceive can now be generated in just hours by design software.Improved Design PerformanceBecause it evaluates thousands of design permutations to optimize for metrics like strength, weight, cost and manufacturability, the resulting designs often surpass the performance of those produced manually. Engineers are able to achieve lighter, stronger, and more efficient parts that push the envelope of what's possible.Reduced Design and Prototyping CostsIt virtually eliminates the costs associated with multiple rounds of physical prototyping. Design workflows are digital from start to finish, completely done on the computer without any physical modeling. This dramatically cuts overall development expenses and gets products to market faster.
Applications Across IndustriesGenerative design is being leveraged in many industries to develop improved and more innovative products in less time. Here are some key applications:AutomotiveAutomakers are using it to develop ultra-lightweight vehicle components like engine brackets, drive shafts and control arms optimized for strength and weight savings. This lowers vehicle weight for improved fuel efficiency and performance.AerospaceThe aviation industry relies on it to develop lighter, high-performing aircraft structures and jet engine components. Even minor weight reductions can result in substantial overall fuel savings.
Medical DevicesMedical device manufacturers employ it to develop custom implants and surgical tools precisely tuned for individual patient anatomies resulting in better patient outcomes.Consumer ProductsConsumer goods companies are leveraging generative design to rapidly develop and iterate on new product concepts, shaving months off traditional design cycles. Functionally optimized designs get to market quicker.

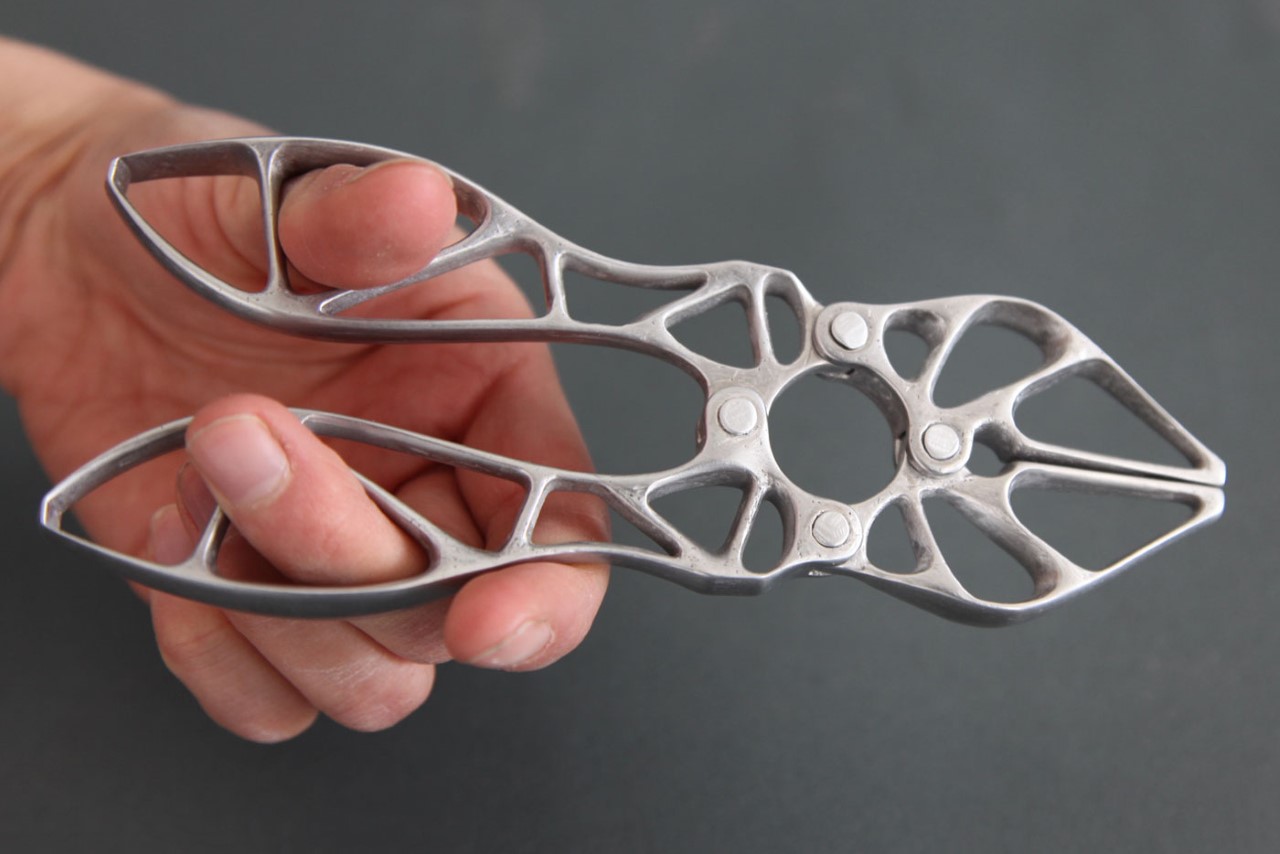

3D Printing ApplicationsIt combined with 3D printing technologies opens up possibilities for highly complex, tailored designs not possible with conventional manufacturing. Iterations are produced digitally and on demand.Challenges and LimitationsWhile generative design shows great promise, there are still hurdles around data, optimization methods and meshing/topology challenges that need to be addressed:Data-Rich RequirementsIts algorithms require extensive material property data, manufacturing process constraints and other parametric inputs. Greater model sophistication requires larger datasets that take time and resources to compile.Local Optima IssuesLike all optimization techniques, it has challenges around getting stuck in local optima rather than reaching globally optimized solutions. Combining multiple algorithm types helps address this challenge.Topology Complexity ConstraintsMeshing and topology generation for complex, interpenetrating designs remains computationally intensive. Software is still limited in producing highly complex, interwoven structures versus more elemental component topologies.Despite current limitations, generative design represents an important new direction in product development that builds on advances in computational capabilities, data processing, and AI/machine learning. As algorithms and hardware continue getting more powerful, its methods will only grow in their ability to help designers and engineers develop better, more optimal products faster than ever before.
