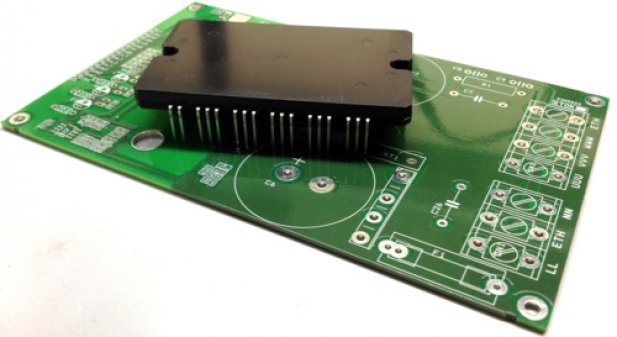

What are Intelligent Power Modules?
The intelligent power module (IPM) is an electronic component or device that integrates a power switch and its gate drive, protection and isolated control elements in a single package. IPMs are used in applications like variable frequency drives (VFDs), servo drives, DC/DC converters, UPS systems and motor controls among others. At their core, IPMs have power switching elements like IGBTs or MOSFETs along with integrated gate drive and protection circuits. IPM Packaging and Thermal Management IPMs employ advanced packaging technologies to effectively isolate control signals and power channels within a single module. The power switches and associated components are packaged in an insulated metal substrate (IMS) or direct bonded copper (DBC) substrate in most designs. These substrates allow for high current conduction while maintaining electrical isolation. For thermal management, IPMs incorporate baseplate structures made of aluminum, copper or other thermally conductive materials. Advanced cooling methods like Direct Fin cooling are also used optimize heat transfer from the power devices. This helps in achieving compact module sizes while ensuring reliable thermal performance even under continuous high power operation. Integrated Protection and Control Circuits To fulfill their intelligent functions, IPMs integrate various protection and control circuits internally. Overcurrent, short-circuit and overtemperature protection circuits constantly monitor operating conditions and turn off the power devices instantaneously if faults are detected. Advanced designs also integrate desaturation circuits for accurate gate turn-off control under short circuit conditions. Gate drivers optimized for IGBT or MOSFET switching characteristics are also embedded within the module. Logic interfaces allow external control of switching timing and protection responses as per application requirements. This eliminates the need for discrete protection and drive components, simplifying external component counts. Benefits of Intelligent Power Modules Compared to discreet component solutions, IPMs deliver significant benefits to power electronic equipment design: - Higher reliability - Integrated protection circuits prevent device damage from faults. Consistent switching performance extends lifespan. - Ease of use - Plug-and-play modules require minimal external components. This simplifies PCB design and assembly. - Reduced component counts - Integrated drivers, protection and controls eliminate needs for many external parts. - Compact size - Dense packaging minimizes module footprint. This enhances power density at system level. - Improved efficiency - Optimized materials and layouts lower conduction and switching losses. - Simplified thermal management - Effective baseplates and substrates consolidate heat zones within modules. - Flexible interface options - Variety of logic-level, analog and digital interfaces suit diverse control schemes. IPM Applications in Motor Drives and Power Supplies Intelligent Power Module find widespread use in adjustable speed drives for industrial motors and motion control systems: - Integrated IPMs consisting of several parallel-connected power blocks enable precise phase control in medium and high power 3-phase VFD applications up to several hundred kW ratings. - In servo drive systems, IPMs combining high speed, high current power devices allow realization of compact digital servo amplifiers for robotics, CNC machines and other precision motion control equipment. - For uninterruptible power supply (UPS) systems, IPMs integrate multiple high frequency DC/DC converter stages enabling compact cabinet footprints and modular power scalability. - In solar PV string inverters and energy storage systems, IPM based multiphase converter modules are key to grid-tie inverters and bidirectional charger designs. IPM Trends - Wide Bandgap Devices and Automotive/Aviation Markets Going forward, IPMs are being redesigned to take advantage of newer wide bandgap power semiconductors like silicon carbide (SiC) and gallium nitride (GaN). These boost power density multiples while improving efficiency compared to existing IGBT and MOSFET based modules. Automotive and aviation industries also offer great opportunities for IPM adoption driven by factors like: - Electrification of vehicles - IPMs enable high power on-board chargers, motor drives and DC/DC converters for xEVs. - More electric aircraft - Advanced IPMs support all-electric concepts replacing hydraulic/pneumatic systems. - Functional safety - Integrated diagnostics and redundancies in IPMs meet ASIL safety standards. - Thermal management challenges - IPMs consolidate heat zones enabling air-cooled dense packaging. The future looks promising for intelligent power modules with wider proliferation expected across major industry verticals driven by the aforementioned technological and market forces.
