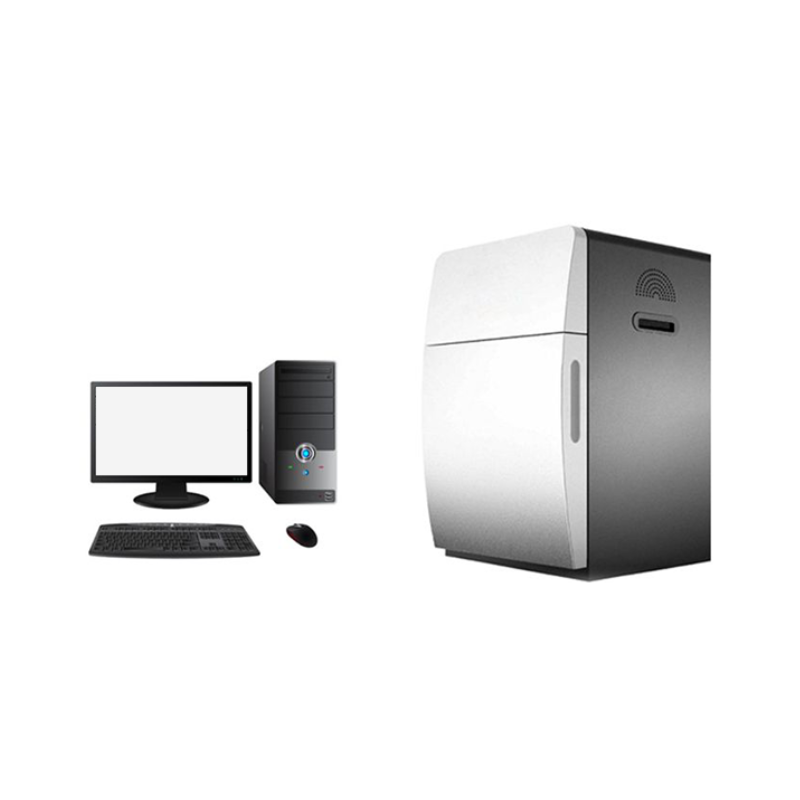

LabExpo Chemiluminescence Imaging System represents a cutting-edge advancement in imaging technology, specifically designed for applications requiring high sensitivity and accuracy. With its ability to detect extremely weak signals, this system is ideal for laboratories focused on precision documentation of luminescent signals.
One of the core features of this system is its 16-bit cooled CCD camera. This camera significantly reduces background noise during long exposure times, ensuring high-quality images even when capturing low-intensity signals. The cooled CCD offers a pixel resolution of 2750 × 2200 with a pixel size of 4.54 × 4.54 µm, allowing for detailed and accurate imaging. The camera’s CCD size of 12.49 mm × 9.99 mm ensures a broad detection range, and with a quantum efficiency of over 78%, it maximizes signal detection efficiency, capturing more light for clearer results.
This imaging system is designed for user convenience and precision with its motorized F0.95 lens and motorized filter wheel with 5 sockets, allowing for easy switching between filters and fine-tuning of image quality. It comes equipped with a 590 nm filter and an Epi-LED white light source, providing illumination for a variety of imaging needs, while the blue LED light transmission source enhances image contrast for specific applications.
With automatic pixel binning technology, the system automatically adjusts pixel grouping to optimize image resolution and noise reduction, enabling better visualization of fine details. The system’s software includes comprehensive tools for image acquisition, analysis, navigation, and browsing, offering intuitive controls for cropping, rotating, and counter-color processing of the obtained images.
An optional attachment allows for the use of different fluorescent light sources and filters, further enhancing the system’s versatility across multiple imaging applications. The cooling mechanism maintains a temperature of 65°C below ambient, ensuring the system operates efficiently under extended usage conditions without overheating.
Key features include:
- High sensitivity and wide dynamic range
- 16-bit cooled CCD camera for noise reduction
- Motorized F0.95 lens for precise focus control
- Automatic exposure adjustment
- 590 nm filter and Epi-LED white light source
- Blue LED light transmission for enhanced contrast
- Optional fluorescent light sources and filters
The LabExpo Chemiluminescence Imaging System is an exceptional tool for laboratories seeking high-performance imaging with advanced features, offering flexibility, efficiency, and precise control.
