High tension power lines are essential for transmitting electricity over long distances from power plants to substations and eventually to homes and businesses. Traditionally, these lines have been mounted on towers or poles, forming an extensive network above ground. However, the question arises—can high voltage lines be buried in the ground, and what are the pros and cons of such an approach?
In this article, we will explore the technical, economic, and environmental factors that come into play when considering underground high voltage lines, as well as the feasibility of burying such lines in different scenarios.
1. Overview of High Voltage Transmission Lines
High voltage transmission lines, typically defined as those carrying 100 kV (kilovolts) or higher, are critical for reducing energy loss during long-distance transmission. These lines operate at high voltages to minimize the amount of current needed, which in turn reduces resistance losses in the wires. The three main types of high voltage transmission lines are:
· Overhead Transmission Lines: Mounted on towers, these lines are the most common and visible form of high voltage transmission.
· Underground Transmission Lines: These lines are buried in the ground and protected by layers of insulation and other materials.
· Submarine Transmission Lines: These run under bodies of water to connect different landmasses or supply power to offshore platforms.

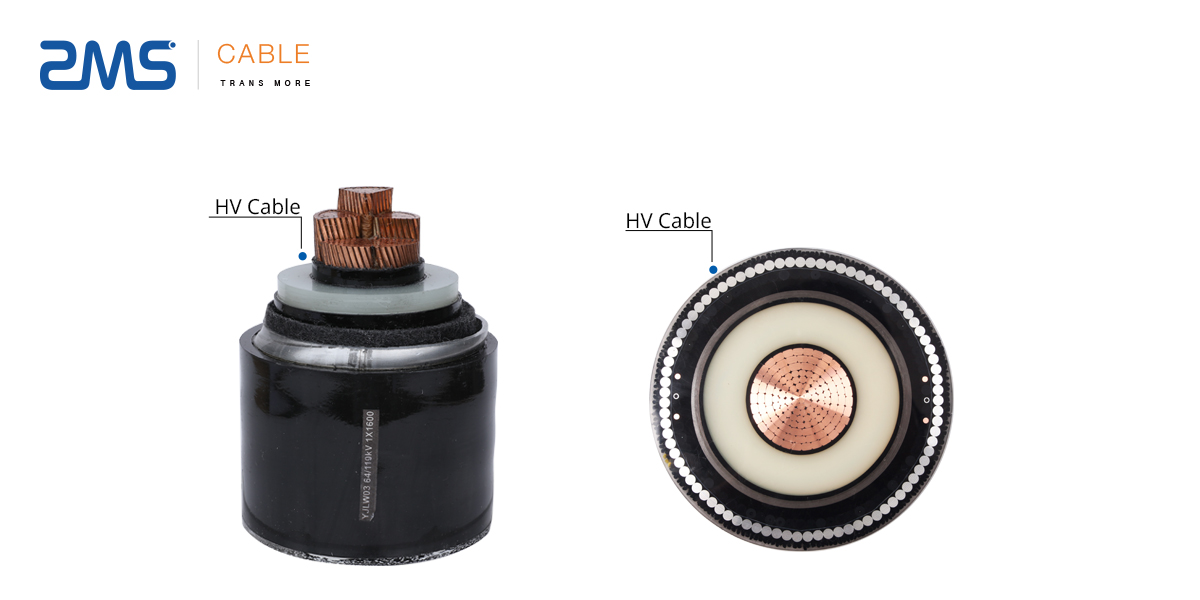

2. Can Insulated High Voltage Cable Tage Cable Be Buried?
Yes, high voltage lines can indeed be buried underground. However, burying these lines comes with significant challenges compared to overhead lines. Undergrounding is more complex because high voltage cables require special insulation, cooling, and protection to prevent overheating and to avoid damage from external elements.
Let’s explore the advantages and disadvantages of burying high voltage lines.
3. Advantages of Underground High Voltage Lines
3.1. Aesthetics and Land Use
One of the most obvious benefits of burying high voltage lines is the improvement in aesthetics. Overhead lines with their massive towers can be considered eyesores, especially in residential or scenic areas. Underground cables eliminate this visual clutter and free up land, which can be used for other purposes, such as urban development, parks, or agriculture.
3.2. Reduced Vulnerability to Weather
Underground cables are much less vulnerable to weather-related issues like strong winds, ice storms, and lightning strikes, which can lead to outages or damage to overhead lines. This makes underground high voltage lines more reliable in areas prone to extreme weather conditions.
3.3. Lower Maintenance Costs
Although the initial cost of installing underground high voltage lines is much higher, maintenance costs are generally lower. Once installed, underground cables are less exposed to environmental factors that cause wear and tear, reducing the need for frequent inspections and repairs. They are also less prone to accidental damage from tree branches or vehicle collisions.
3.4. Safety Benefits
Burying high voltage lines can improve safety. Overhead high voltage lines pose risks of electrocution for people and animals if they come into contact with the cables. In densely populated areas, underground cables can significantly reduce these risks.
4. Challenges and Disadvantages of Undergrounding High Voltage Lines
Despite the clear advantages, there are several reasons why high voltage lines are not commonly buried.
4.1. Higher Installation Costs
One of the most significant drawbacks of burying high voltage lines is the cost. According to the International Energy Agency (IEA), installing underground high voltage cables can cost between 5 and 10 times more than overhead lines. This cost disparity is due to the complex engineering required to bury and insulate cables properly.
The ground must be excavated, and in urban areas, this can be particularly challenging due to existing infrastructure such as water pipes, gas lines, and other utilities. Additionally, specialized materials are required to protect the cables from moisture, heat, and other underground conditions.
4.2. Thermal Management Issues
One of the main technical challenges of underground high voltage lines is heat dissipation. Overhead lines release heat directly into the air, but underground cables are enclosed, making it harder for heat to escape. Underground cables can overheat without proper cooling, leading to insulation breakdown or cable failure.
To manage this, cooling systems such as forced air or liquid cooling must often be incorporated into underground installations, adding to the complexity and cost.
4.3. Repairs and Fault Detection
While underground cables require less frequent maintenance, repairing them when something does go wrong is more difficult and expensive. Locating the exact point of failure can be time-consuming, as it may involve digging up significant portions of the cable. In contrast, overhead lines are easier to inspect, and repairs can often be made quickly without the need for extensive excavation.
4.4. Environmental Impact
Although underground cables reduce visual impact, they can have environmental consequences for installation. The excavation process disrupts the soil and can affect local ecosystems. In areas with sensitive environments, such as wetlands or forests, the process of burying high voltage lines may not be feasible without significant environmental harm.
Additionally, the materials used to insulate and protect underground cables may include plastics and metals that have their environmental impacts in terms of production, disposal, and potential leaks.
4.5. Longer Installation Time
Due to the complexities involved, installing underground high voltage lines takes considerably longer than setting up overhead lines. The process includes detailed planning, excavation, cable laying, backfilling, and in some cases, installing cooling systems. This extended timeline can be a disadvantage when power lines need to be quickly deployed or repaired.
5. When is Undergrounding High Voltage Lines Feasible?
Despite the challenges, underground high voltage lines are a viable option in certain situations, especially where overhead lines are impractical or undesirable.
5.1. Urban Areas
Overhead lines would take up valuable space and pose safety hazards. Therefore, in many cities, high voltage transmission cables are buried underground. The added cost of undergrounding is often justified by the benefits of freeing up land for development, improving aesthetics, and enhancing public safety.
5.2. Environmentally Sensitive Areas
In environmentally sensitive areas such as national parks, forests, or coastal regions, the visual impact and potential harm of overhead lines can outweigh the costs of burying them. Underground cables can preserve the natural landscape and avoid disturbing wildlife habitats.
5.3. Subsea and River Crossings
In cases where high voltage lines need to cross large bodies of water, such as seas or rivers, underground (or more accurately, submarine) cables are used. These cables are specially designed to withstand water pressure and other environmental conditions.
5.4. Extreme Weather Zones
Underground cables offer enhanced reliability in regions prone to extreme weather events like hurricanes, tornadoes, or heavy snowstorms. For example, in hurricane-prone areas like Florida, utilities are considering undergrounding more lines to prevent frequent storm-related outages.
6. Future of Underground High Voltage Lines
As urbanization continues and technological advancements are made, the demand for underground power infrastructure may increase. Some emerging trends include:
· Advanced Cable Materials: Innovations in insulation materials and cooling technology may make underground cables more affordable and efficient in the future.
· Renewable Energy Integration: With the rise of renewable energy sources such as offshore wind farms, there will be an increasing need for submarine and underground cables to connect these installations to the grid.
· Government Policies: In some areas, governments are pushing for more underground installations to improve reliability, reduce storm damage, and enhance aesthetics, especially in urban areas.
While high voltage lines can indeed be buried in the ground, the decision to do so must carefully weigh the advantages against the challenges. Underground high voltage lines offer benefits in terms of aesthetics, safety, and protection from weather, but they come with higher costs, complex installation processes, and technical challenges such as heat management and repair difficulties.
In certain scenarios, such as in urban centers or environmentally sensitive areas, underground high voltage lines are the best option. However, in many cases, the cost and complexity still make overhead lines the more practical choice for long-distance power transmission. As technology advances, the future may bring more efficient underground power solutions, but for now, both underground and overhead lines will continue to play essential roles in global power infrastructure.
