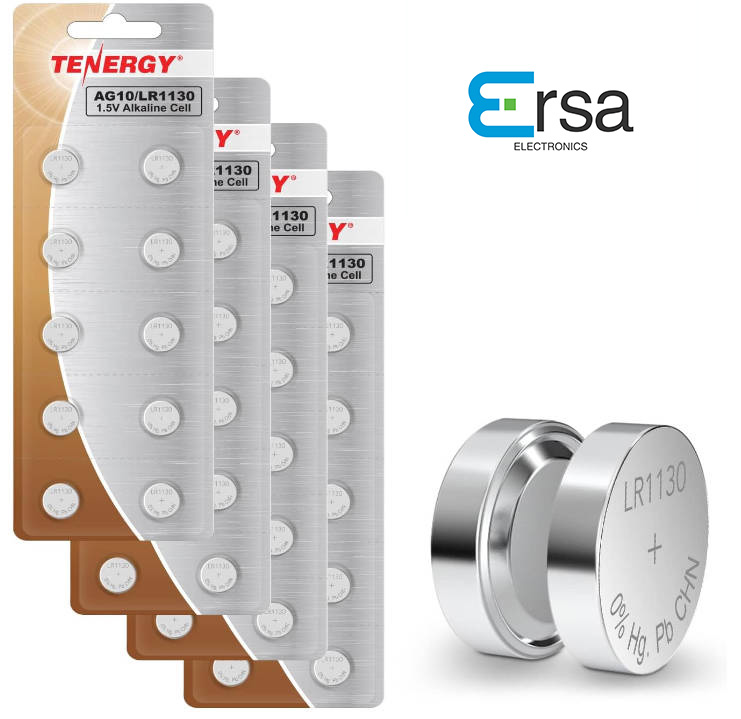

All You Want to Know About LR1130 Battery Equivalent

What is the LR1130 battery?

The LR1130 battery is a compact and reliable alkaline button cell that is frequently employed. Key specifications of the device include a nominal voltage of 1.5V, dimensions of 11.6mm in diameter and 3.1mm in height, and a typical capacity of 50 to 80mAh, which is contingent upon the device's current depletion. Its cutoff voltage is between 0.8 and 1.0 volts. The AG10, LR54, 389, 390, and SR1130 (a silver oxide version with 1.55V and a higher capacity) are all equivalent batteries.

Digital thermometers, calculators, laser pens, lamps, security systems, wristwatches, and medical devices are among the most prevalent applications of the LR1130 battery. The LR1130's voltage may decrease rapidly under heavy loads, and its shelf life is approximately 2 to 3 years, despite its affordability and reliability. The SR1130 silver oxide variant is frequently a superior choice for devices that necessitate more consistent or extended power. In conclusion, the LR1130 battery is a versatile power source that is frequently employed in medical applications and consumer electronics.

Features of the LR1130 Battery

The LR1130 battery is a popular choice for small electronic devices due to its numerous important features:

Alkaline button cell type

Dimensions: 11.6 mm in diameter and 3.1 mm in height

The nominal voltage is 1.5 volts.

Capacity: Typically between 50 and 80 milliamperes (mAh)

Cutoff Voltage: 0.8V to 1.0V

Shelf life: 2 to 3 years

Performance: Reliable under moderate loads; however, rapid voltage drops may occur under high loads.

Cost: Cost-effective and easily accessible

Equivalents include the AG10, LR54, 389, 390, and SR1130 (silver oxide version, which has a slightly higher voltage of 1.55V and a higher capacity).

The LR1130 battery is an excellent choice for compact devices, including medical instruments, calculators, and watches, due to its exceptional features.

Applications of the LR1130 Battery

The diminutive size and dependable performance of the LR1130 battery make it a popular choice for a wide range of electronic devices. The LR1130 battery is employed in the following primary applications: Wrist timepieces: The LR1130 is a battery that is frequently employed in both analog and digital timepieces to power the timekeeping system. Calculators: Its consistent voltage output is optimal for calculators, which require minimal power consumption. Digital thermometers are powered by a battery, which guarantees precise readings with minimal energy consumption. Remote Controls: The LR1130 is a dependable component of a variety of remote controls that are utilized in household electronics. Electronic Toys: Numerous diminutive toys depend on LR1130 batteries to execute sound and movement functions. Laser Pointers: The laser pointer is suitable due to its compact size and adequate voltage. Medical Devices: Frequently encountered in medical instruments such as digital thermometers and glucose monitors, where consistent power is essential. Security System Panels: Ensures the functionality of alarm systems during disruptions by providing backup power. Memory Backup: Utilized in devices that necessitate memory retention, including specific types of timers and settings in electronics. The LR1130 battery is appropriate for low-drain applications due to its alkaline chemistry, which enables it to provide a nominal voltage of 1.5 volts. It is also available in a variety of equivalent forms, including AG10 and 389, which can be used interchangeably based on the device's requirements. The LR1130 is a favored option for a variety of commonplace electronic devices due to its dependability and adaptability.

LR1130 Battery EquivalentThe LR1130 battery is an extensively used alkaline button cell battery that is commonly found in a variety of electronic devices. It is possible to substitute it with a variety of equivalents. The following is a comprehensive description of the battery equivalents to the LR1130: Key Equivalents of the LR1130 Battery AG10: The AG10, an alkaline battery, is frequently interchangeable with the LR1130. It has a nominal voltage of 1.5V and a diameter of 11.6 mm and a height of 3.1 mm. It is frequently employed in calculators and timepieces. LR54: The LR54 is an additional equivalent that has the same voltage and physical dimensions as the LR1130. It is appropriate for applications that require minimal drainage. SR1130: This is a silver oxide variant of the LR1130 that offers a higher capacity (typically 80-100 mAh) and a nominal voltage of 1.55V. The SR1130 is an optimal choice for devices that necessitate consistent voltage over an extended period, including medical instruments and high-precision electronics. 389/390: Additionally, these batteries are interoperable with LR1130. The 389 is a high-drain silver oxide battery, whereas the 390 is a low-drain variant. The dimensions of both are identical to those of the LR1130. LR1131: This designation is consistent with the IEC standard and is functionally equivalent to the LR1130 in terms of voltage and dimensions. Performance Characteristics of the LR1130 Battery Voltage and Capacity: The LR1130 battery typically provides 1.5V of power and has a capacity of 50 to 80 mAh, depending on the brand and the specific application conditions. Conversely, silver oxide equivalents such as SR1130 exhibit marginally improved performance under load and a slightly higher voltage. Shelf Life: Alkaline batteries, such as the LR1130, typically have a shelf life of approximately 2-3 years. In contrast, silver oxide batteries (e.g., SR1130), which have reduced self-discharge rates, can last for up to 4-6 years. Reasons for Replacing the LR1130 Battery When replacing an LR1130 battery: Ensure that your device is compatible with its specifications, particularly in terms of its voltage and discharge characteristics. Alkaline batteries are appropriate for the majority of low-drain applications; however, silver oxide variants are advised for devices that require consistent performance over time. AG10, LR54, and SR1130 are among the numerous equivalents of the LR1130 battery. It is imperative to select the appropriate variety of equivalents based on the specific requirements of your device, as each may provide distinct benefits in terms of performance and longevity. Before selecting a replacement battery, it is crucial to consult the manual or specifications of your device to ensure compatibility.
