The SMT assembly process involves a series of precisely controlled steps performed on an SMT production line. Each step is crucial for achieving high-quality PCB assemblies used in consumer electronics, industrial applications, and automotive industries. This blog provides a comprehensive look at how an SMT line works for PCB assembly.
Key Steps in SMT PCB Assembly
1. PCB Preparation and Solder Paste Application
The SMT process begins with the preparation of the PCB. A bare PCB is cleaned to remove contaminants and oxidation. Once the board is ready, solder paste is applied to the surface where components will be placed.
- Solder Paste Application: A stencil is placed over the PCB, and solder paste—a mixture of tiny solder particles and flux—is spread over the stencil using a squeegee. The paste adheres to the exposed pads, ensuring precise application.
- Stencil Printing Inspection: An Automated Optical Inspection (AOI) system checks the solder paste deposition to ensure accuracy and prevent defects like insufficient or excessive paste

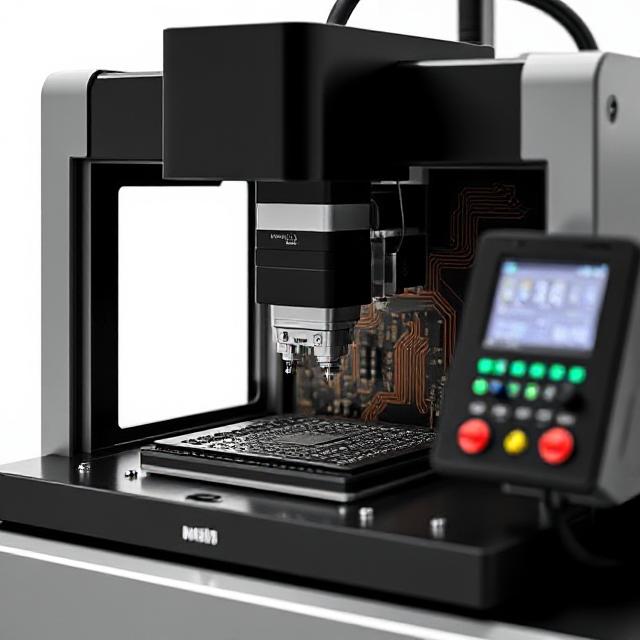

2. Component Placement
After solder paste application, electronic components are mounted onto the PCB using high-speed pick-and-place machines. These machines use vacuum nozzles and vision systems to accurately place components.
- Component Feeder Setup: Electronic components are fed into the machine from reels, trays, or tubes.
- Vision Alignment: The machine's camera system aligns each component before placing it on the PCB.
- Placement Accuracy: Modern machines achieve placement speeds of tens of thousands of components per hour with micron-level precision.
3. Reflow Soldering
Once components are placed, the PCB moves to the reflow soldering oven, where the solder paste is melted to form strong electrical connections.
- Preheat Zone: The PCB gradually heats up to prevent thermal shock and activate the flux in the solder paste.
- Soak Zone: The temperature stabilizes, allowing flux to clean the metal surfaces for a strong solder bond.
- Reflow Zone: The temperature peaks, melting the solder and forming connections between the component leads and PCB pads.
- Cooling Zone: The PCB is cooled in a controlled manner to solidify the solder joints.
4. Automated Optical Inspection (AOI) and Quality Control
After reflow soldering, the assembled PCB undergoes quality inspection to identify defects such as solder bridging, misalignment, or insufficient solder.
- AOI Inspection: High-resolution cameras capture images of the PCB, and software algorithms detect any soldering or placement issues.
- X-ray Inspection: Used for Ball Grid Array (BGA) components, X-ray systems examine hidden solder joints beneath components.
- Manual Inspection: In some cases, human inspectors conduct a final visual check for any remaining defects.
Benefits of SMT Assembly
- High Component Density: Enables compact, lightweight designs.
- Automated Manufacturing: Increases efficiency and reduces human errors.
- Lower Production Costs: Reduces material waste and speeds up production.
- Improved Electrical Performance: Minimizes signal interference and enhances circuit reliability
SMT Assembly Services and Their Importance
Many electronics manufacturers rely on SMT assembly services to ensure high-quality and efficient PCB production. These services provide state-of-the-art equipment and expertise to handle complex
PCB designs with precision. By outsourcing SMT assembly services, companies can reduce costs, improve production speed, and maintain consistent quality in their electronic products.
