Cartridge Heater Applications: A Comprehensive Overview

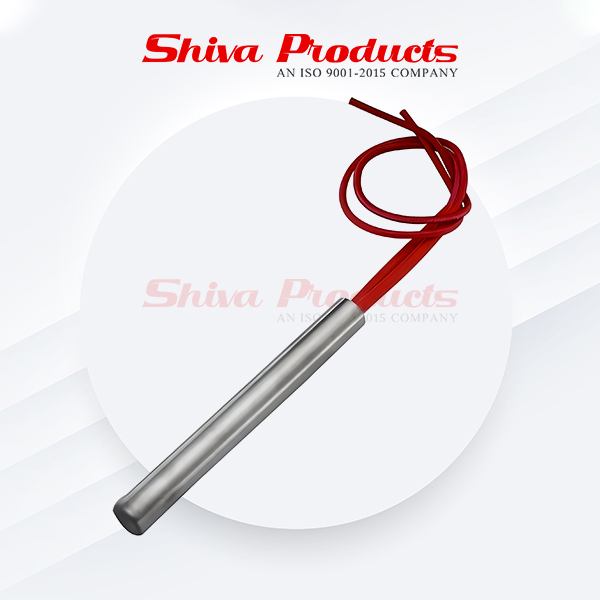

A cartridge heater is a cylindrical tubular heating device that may be used to heat a wide range of materials, machinery, and equipment. This heater, unlike an immersion heater, is inserted into a hole in the item to be heated and produces internal radiant heat. It is commonly used to heat a metal block from the inside, and it may be customized to a certain watt density based on the application's requirements.

How do cartridge heaters work?

Cartridge heater manufacturers emphasize the simplicity of their heaters' design and operation. The heater is made out of a ceramic core wrapped with resistance wire. The core and resistance wire are wrapped in a dielectric metal sheath composed of steel or stainless steel. Heat is delivered from the resistance wire to the sheath, then to the substance to be heated. It's a rather straightforward technique.

An alternating current heats the coil within the heater, which in turn heats the resistive wire. Conduction transports heat energy from the wire to the metal sheath and subsequently to the surroundings. Cartridge heaters are the most efficient way to transmit heat into a metal solid because the entire heat energy is transferred from the element to its surroundings.

Application of Cartridge Heaters

These industrial heaters are most commonly used to heat dies, platens, molds, and other metal items by inserting them into pre-drilled holes. They are also suitable for liquid immersion applications. Here are some examples of specialized applications:

Cartridge heater in plastic molds

These heaters are installed within the stamping mold according to the mold's geometry to heat the stamping surface to a high temperature, which is particularly useful for stamping high-strength or thick plates to boost stamping efficiency.

Cartridge heater for stamping dies

These heaters are utilized in packing machines and hot cutting knives. The heater is implanted into the sealing die or hot cutting knife die to ensure that the entire die reaches a consistent high temperature, allowing the material to be both melted and fit, or melted and sliced. Uniform heat single-headed heating tubing is ideal.

Packaging machinery

Melt spray molds use these heaters, which are installed in the internal melt spray die to ensure that the internal die, particularly the location of the filament hole, is kept at a consistent high temperature, allowing the material in the melt to achieve uniform density through the filament hole spray. A single-headed heating tube that produces uniform heat is ideal.

Cartridge heater in a meltblown mold

The usage of these heaters in the uniform heating platform is to embed many heaters horizontally in the metal plate and regulate the power of each cartridge heater by calculating the power distribution, allowing the metal plate's surface to attain a uniform temperature. The uniform heating platform is extensively used for target heating, precious metal stripping and recycling, mold preheating, and other applications.

Consistent heating platform using a cartridge heater

The core heating element of the heater is nickel-chromium heat-resistant alloy wire coiled on a magnesium oxide core rod with high insulation and thermal conductivity. Following machine compression to release the air within, the heating wire and the shell between the filling magnesium oxide powder for insulating material become complete.

Conclusion

At Shiva Products, our objective is to assist all industries by offering a cartridge heater suitable for your specific application. Our industrial heaters and heating components are all quite affordable and offer excellent value for money. So why not check over the complete collection right now? Contact us if you have any inquiries about cartridge heaters.
