Transformer manufacturers produce a wide variety of transformers designed for different stages of the electrical power network, with distribution transformers and power transformers being two of the most important categories. While both serve the essential function of voltage conversion and power transmission, they differ in purpose, capacity, design, and operational characteristics. Understanding these differences is crucial for engineers, utility planners, and industries involved in energy distribution and infrastructure development.
Power transformers are primarily used in transmission networks for stepping up or stepping down voltage levels between generation plants and high-voltage transmission lines. They typically operate at voltage levels above 33 kV and handle very high power capacities, often exceeding 200 MVA. Power transformers are designed for maximum efficiency at full load since they operate continuously at or near rated capacity. Their robust design includes superior insulation systems, high-grade silicon steel cores, and advanced cooling methods such as oil-immersed radiators or forced air and water cooling. The main focus in power transformers is energy efficiency, reliability, and minimal transmission loss over long distances.

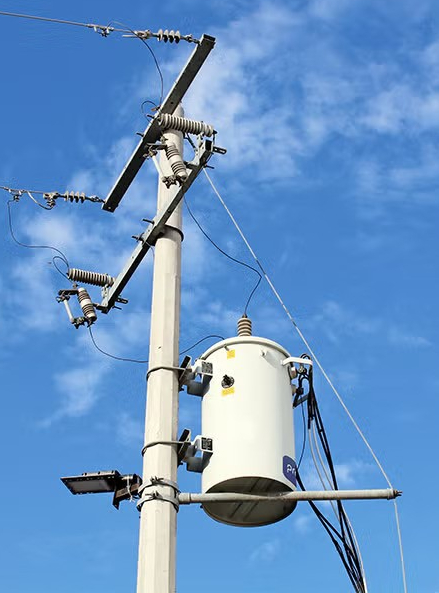

In contrast, distribution transformers function at the final stage of the electrical distribution system. They step down the voltage from the transmission level (usually 11 kV to 33 kV) to lower voltages suitable for household, commercial, or small industrial use—typically 415/240 V. Distribution transformers are generally smaller in size, have lower capacity (often below 5 MVA), and are designed to operate efficiently under variable load conditions rather than full load. These transformers are installed closer to end users, often mounted on poles or pads, and play a key role in ensuring safe and stable power delivery to consumers.
One of the main design differences between the two lies in their operational cycles. Power transformers operate continuously under high load conditions, while distribution transformers experience frequent load fluctuations throughout the day. As a result, distribution transformers emphasize minimal iron losses (no-load losses) because they remain energized even when demand is low, whereas power transformers focus on reducing copper losses that occur during full-load operation.
Another distinction is in construction and cooling. Power transformers typically employ more advanced cooling systems—such as ONAN (Oil Natural Air Natural), ONAF (Oil Natural Air Forced), or OFWF (Oil Forced Water Forced)—to manage the significant heat generated during high-load operation. Distribution transformers, on the other hand, often use simpler cooling mechanisms like ONAN or dry-type systems suitable for lower power levels and compact installations.
Maintenance and installation requirements also differ. Power transformers are usually installed in substations with elaborate protection, monitoring, and control systems, while distribution transformers are designed for easier installation and minimal maintenance in local networks. This makes them ideal for urban, rural, and remote power distribution.
In summary, both power transformers and distribution transformers play indispensable roles in the electrical power system. Power transformers ensure efficient voltage regulation and long-distance power transmission, while distribution transformers deliver safe, usable electricity to end consumers. Together, they form the backbone of the modern power grid. With innovative technologies and expertise from trusted transformer manufacturers like Welldone Power, today’s power infrastructure continues to evolve toward greater reliability, efficiency, and sustainability in global energy distribution.
