Installing a New Stabilizer Bar Link on Your Toyota: A Step-by-Step DIY Guide

If you have observed knocking noises when driving over bumps, inadequate cornering stability, or excessive body roll in your Toyota, replacing your stabilizer bar link may be a necessary project. The stabilizer (or sway) bar link is the component that connects the sway bar to your vehicle's suspension. Stabilizer bar links assist the swaying motion of lateral roll to occur with a minimal amount of body roll to help your vehicle with greater stability when turning.

A worn-out stabilizer bar link can also affect your steering precision and overall ride comfort. Luckily, this is a project many car owners can perform at home with basic tools and some mechanical expertise.

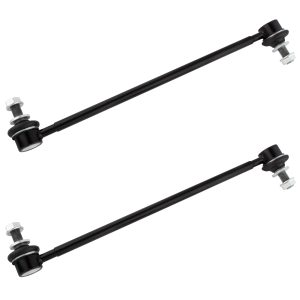

The BOXI Stabilizer Bar Link, available at Tetron Auto Parts, is a direct-fit replacement that is engineered for durability and reliability. Knowing how to perform the installation will save you valuable time and money while maximizing the performance of your Stabilizer Bar Link Fit for Toyota.

Step 1: Check Compatibility and Collection of Tools

Check that the link of the new stabilizer bar will fit your model Toyota before beginning the replacement. BOXI Stabilizer Bar Link fits a large variety of car models, such as the Toyota Corolla iM (2017), Prius (20102015), Prius Plug-In (20122015), Prius V (20122018), and RAV4 (20062018). It also fits a variety of Lexus and Scion. When purchasing the part, always verify the part number of the part e.g., K750043 or 48820-0R010.

You’ll need a few basic tools:

• A wrench or socket set

• A car jack and jack stands

• Oil penetration (rusty bolts)

• Torque wrench

Step 2: Lift and Support Your Vehicle in a safe way

Park in a flat area and set the parking brake on. Before lifting the vehicle, loosen the lug nuts a bit. Raise the front or rear end (which stabilizer link needs replacing) with a car jack, and then place the vehicle on jack stands to be safe. Take out the wheels to reach the suspension assembly.

Step 3: Find and Take out the Old Stabilizer Bar Link

Find the stabilizer bar connection. It joins the sway bar with the strut or control arm. Apply some penetrating oil on the bolts in the event they are rusted or hard to loosen. Apply your wrench and hold the nut on one hand, and turn the bolt with the other. When it is loose, take out the two bolts and push the old stabilizer bar link out.

Check the ancient connection whether it is worn in any way through cracks on the rubber, loose joints or corrosion. When one of the links is broken, then both sides should be replaced to ensure the balance and even operation.

Step 4: Fit the New Stabilizer Bar Link

Install the BOXI Stabilizer Bar Link there, being careful to position it similarly to its original position. Install the bolts into the sway bar and control arm, and make sure to first tighten the nuts by hand. Next, attach them to your wrench until you have achieved the appropriate torque value (in the vehicle service manual, you will find the exact figure).

The major benefit of the BOXI Stabilizer Bar Link is its design as an easy-to-install type of stabiliser bar, as it is a direct replacement, and it does not need any modifications. The connecting rod is of high-strength, and the bearings are made of precision metals which guarantee long and smooth performance.

Step 5: Reassemble and Test

Once you have the new stabilizer bar hooked, install your wheel again and screw on your lug nuts. Slowly put the car down on the ground. After you are ready, bring your car out to do a little test drive. Watch out and listen to any strange sounds and how your Toyota is handling corners. The steering response and stability should be more refined.

Step 6: Maintenance and Warranty

BOXI Stabilizer Bar Toyota is a high-quality product that is manufactured with the utmost materials and under stringent tests to handle up to or more than the OEM performance. Its 12-month warranty would enable you to drive confidently knowing that your suspension system is backed by high-quality and durable components. To maintain a stable performance, make sure to inspect your stabilizer links, particularly when you drive a lot on rough or uneven surfaces.

Conclusion

Changing your stabilizer bar attachment is a simple but rewarding DIY project that would make your Toyota feel safer, safer and more comfortable. With the right process, checking compatibility, lifting the car safely, fitting parts into the appropriate fitting, etc., you will have a lifelong successful repair. The BOXI Stabilizer Bar Toyota by Tetron Auto Parts is of OE-quality, easy to install and reliable. And to the drivers who want other quality replacement parts including the Tie Rod Ends Fit to Acura, searching the list of parts available in Tetron Auto Parts will make sure that all the parts of your suspension system in the car are functioning equally well.
