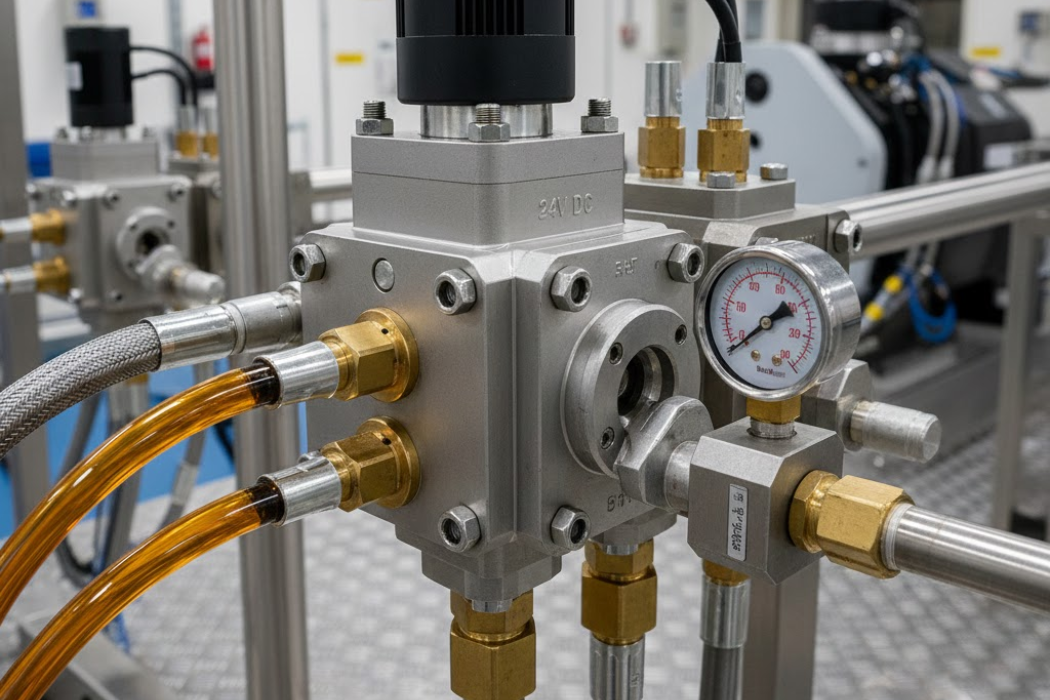

How to Identify the Right Hydraulic Solenoid Valve for Your System?

^{Choosing the right hydraulic solenoid valve is essential for smooth, safe, and efficient system performance. A wrong selection can cause pressure imbalance, slow response, leakage, and reduced machine life. To avoid these problems, it is important to understand your system requirements and match them with the correct valve specifications.}

^{Understanding the Role of a Hydraulic Solenoid Valve}

^{A hydraulic solenoid valve uses an electrical coil to control the movement of hydraulic fluid. When the coil energizes, it opens or closes internal passages to regulate direction, flow, and pressure.}

^{Even though the mechanism is simple, the selection process requires attention to key system parameters.}

^{1. Check Your Operating Pressure}

^{Every hydraulic system runs within a specific pressure range. To choose the right valve:}

• ^{Match the valve’s maximum pressure rating with the highest system pressure.}
• ^{Avoid selecting a valve with lower pressure capability to prevent failure.}
• ^{Consider pressure spikes that may occur during heavy load or start-up.}

^{2. Evaluate Flow Rate Requirements}

^{A valve that cannot handle enough flow will restrict movement and slow down machine operations.}

^{Always check:}

• ^{The required flow rate or speed of the actuators.}
• ^{The valve’s Cv value to understand its flow capacity.}
• ^{Whether the system needs higher flow for rapid movement.}

^{A properly sized valve ensures stable and efficient performance.}

^{3. Ensure Electrical Compatibility}

^{Hydraulic solenoid valves come in various voltage options such as 12V, 24V, 110V, and 220V. Before selecting:}

• ^{Identify whether your system uses AC or DC power.}
• ^{Match the coil voltage exactly with the power supply.}
• ^{Check coil power consumption for response speed and heat levels.}

^{A mismatch can damage the coil or cause slow valve response.}

^{4. Choose the Correct Valve Type}

^{Your system may require different valve configurations based on flow control needs.}

^{Key selections include:}

• ^{2-way, 3-way, or 4-way valves}
• ^{Normally open (NO) or normally closed (NC)}
• ^{Direct-acting or pilot-operated valves}

^{Direct-acting valves are ideal for low-flow, low-pressure systems, while pilot-operated valves suit high-pressure, high-flow applications.}

^{5. Consider Fluid Compatibility}

^{Hydraulic systems use different types of fluids, including mineral oils, synthetic oils, and water-glycol blends.}

^{Make sure:}

• ^{The valve body and seals are compatible with your fluid.}
• ^{Materials like NBR, Viton, or EPDM are selected based on chemical resistance.}
• ^{The system has proper filtration if fluid contamination is expected.}

^{Right material selection prevents leakage, seal swelling, and early failure.}

^{6. Assess Temperature and Environmental Conditions}

^{Your valve must operate reliably in its working environment. Always check:}

• ^{Minimum and maximum fluid temperature}
• ^{Exposure to dust, moisture, and vibration}
• ^{IP rating needed for protection}
• ^{Whether corrosion-resistant materials are required}

^{Outdoor or heavy-duty applications often need sealed coils and durable construction.}

^{7. Check Port Size and Connection Type}

^{Correct port size ensures smooth fluid flow.}

^{Match the system with:}

• ^{BSP, NPT, or SAE connection standards}
• ^{The required port diameter to maintain velocity and pressure stability}

^{A wrong port size can reduce efficiency and increase energy consumption.}

^Conclusion

^{Identifying the right hydraulic solenoid valve becomes easy when you understand your system’s pressure, flow, voltage, fluid type, and environmental needs. By checking these factors carefully and selecting the correct valve configuration, you ensure long-term performance, safety, and efficiency. If the system is complex or pressure-sensitive, consulting a hydraulic expert can help you make the perfect choice.}
