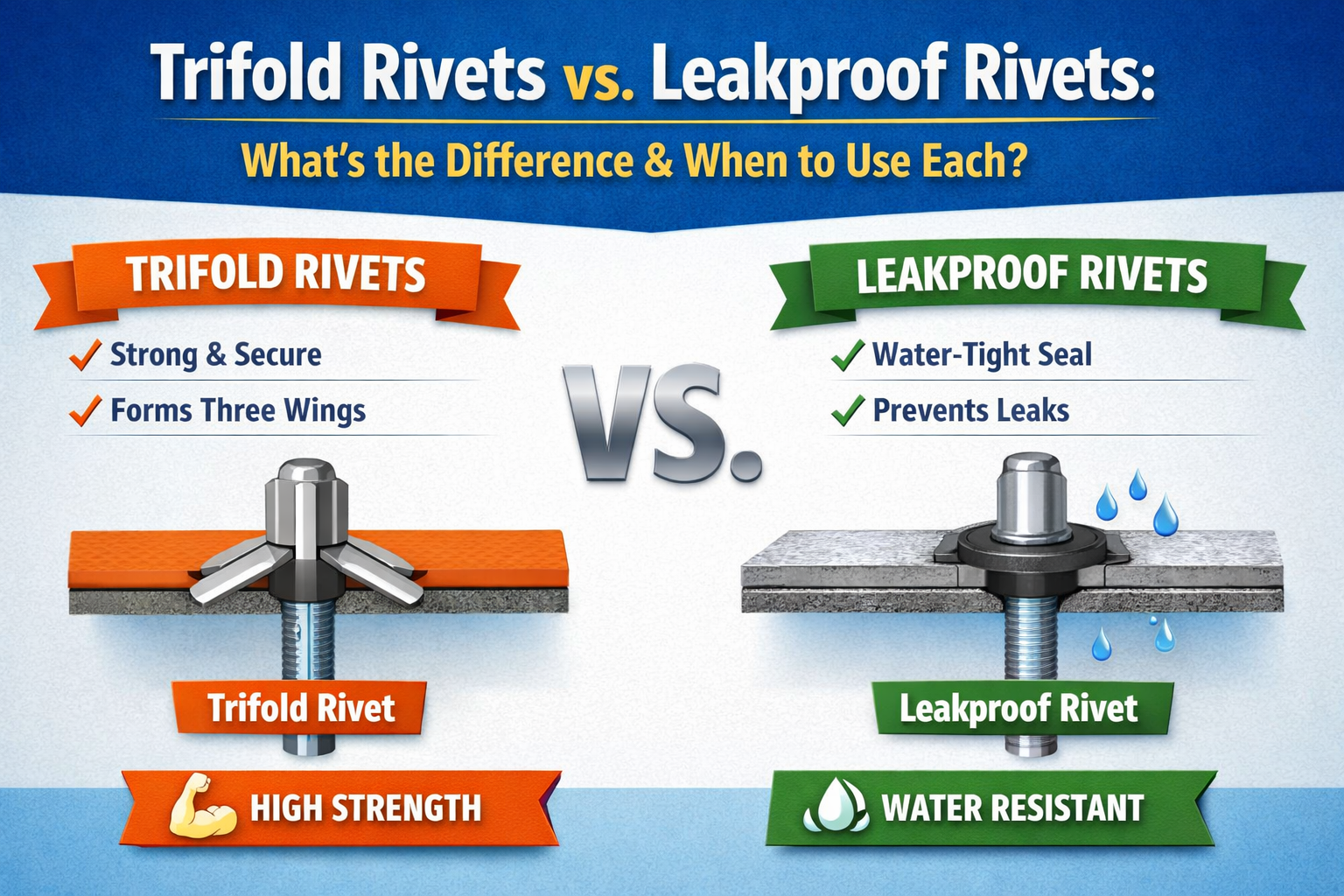

Trifold Rivets vs. Leakproof Rivets: What's the Difference & When to Use Each?

Introduction

Why Rivet Selection Matters More Than You Think

Rivets may appear simple, but the wrong choice can compromise joint strength, sealing, vibration resistance, and product lifespan. When you compare a trifold rivet with a leakproof rivet, the difference goes far beyond shape or installation. Each serves a distinct purpose and performs differently under load, vibration, and environmental exposure.

This article explains the real, functional differences between trifold rivets vs. leakproof rivets. You will learn how each rivet works, where it performs best, and when one is more suitable than the other. The goal is to help you make confident, application-driven fastening decisions backed by engineering logic and real-world case studies.

Understanding Rivets in Modern Manufacturing

Rivets are permanent mechanical fasteners used to join materials when welding or threading is impractical. They offer speed, consistency, and vibration resistance.

Why Specialized Rivets Exist

Standard rivets cannot solve every fastening challenge. Some joints require:

Load distribution

Gap filling

Fluid sealing

Vibration resistance

This is where specialized options like trifold rivets and leakproof rivets become essential.

What Is a Trifold Rivet?

A trifold rivet is a type of blind rivet designed to split into three legs on the blind side during installation.

How a Trifold Rivet Works

When installed, the rivet body expands and folds into three distinct legs. This creates a wide bearing area behind the application.

Key Characteristics of a Trifold Rivet

Excellent load distribution

Strong grip in thin or soft materials

Reduced pull-through risk

Good vibration resistance

A trifold rivet is often chosen when material integrity is a concern.

What Is a Leakproof Rivet?

A leakproof rivet, also known as a sealed rivet, is designed to prevent the passage of liquids, gases, or air through the rivet body.

How a Leakproof Rivet Works

The mandrel is retained or sealed inside the rivet body. This blocks any path for fluid migration.

Key Characteristics of a Leakproof Rivet

Airtight and watertight sealing

Improved corrosion resistance

Cleaner joint finish

Better protection for enclosed components

A leakproof rivet is selected when sealing performance is critical.

Trifold Rivet vs. Leakproof Rivet: Core Design Differences

Expansion Behavior

Trifold rivet: Expands into three legs for load spreading

Leakproof rivet: Expands conventionally but seals the mandrel path

Primary Function

Trifold rivet: Structural support in weak materials

Leakproof rivet: Sealing against fluids and air

Joint Outcome

Trifold rivet: Strong mechanical anchoring

Leakproof rivet: Secure, sealed joint

Understanding these differences is essential when comparing trifold rivets vs. leakproof rivets.

Strength and Load Performance Comparison

Trifold Rivet Strength Behavior

The tri-leg expansion distributes load over a larger area. This reduces stress concentration and material deformation.

Leakproof Rivet Strength Behavior

A leakproof rivet focuses more on joint integrity and sealing than on load distribution.

If your priority is mechanical support in thin materials, a trifold rivet often performs better.

Sealing Performance: Where Leakproof Rivets Excel

Why Sealing Matters

Unsealed joints can allow:

Moisture ingress

Air leakage

Dust contamination

Corrosion initiation

A sealed rivet prevents these risks by design.

Trifold Rivet Limitations in Sealing

While a trifold rivet offers a strong mechanical grip, it does not fully seal the mandrel hole unless specifically engineered for sealing.

Vibration and Fatigue Resistance

Trifold Rivet Behavior Under Vibration

The expanded legs grip firmly, reducing loosening in vibration-prone environments.

Leakproof Rivet Behavior Under Vibration

Leakproof rivets maintain joint integrity and sealing but may not distribute load as widely as trifold designs.

When vibration is high and sealing is secondary, a trifold rivet may be preferable.

Material Compatibility Considerations

Both rivet types are available in multiple materials.

Why Material Choice Matters

Prevents galvanic corrosion

Maintains joint strength

Supports environmental durability

Selecting compatible materials is as important as choosing between a trifold rivet and a leakproof rivet.

Case Study 1: Trifold Rivet Solving Material Pull-Through

The Challenge

A manufacturer faced repeated pull-through failures when fastening thin sheet materials using standard blind rivets.

The Solution

Switching to a trifold rivet increased the bearing area on the blind side.

The Result

Improved joint strength

Reduced rework

Longer service life

This case highlights how trifold rivets solve structural issues without increasing material thickness.

Case Study 2: Leakproof Rivet Preventing Fluid Ingress

The Challenge

An enclosed assembly experienced internal corrosion due to moisture entering through fastener points.

The Solution

Replacing standard rivets with a leakproof rivet eliminated the leakage path.

The Result

Zero fluid ingress

Improved corrosion resistance

Enhanced product reliability

This case demonstrates why a sealed rivet is essential for enclosed or sensitive assemblies.

Trifold Rivets vs. Leakproof Rivets: When to Use Each

Choose a Trifold Rivet When:

Materials are thin or soft

Load distribution is critical

Pull-through risk exists

Vibration resistance is required

Choose a Leakproof Rivet When:

Sealing is essential

Moisture or air ingress is a risk

Internal components need protection

Corrosion prevention is critical

Understanding these conditions simplifies the decision between trifold rivets vs. leakproof rivets.

Common Mistakes When Selecting Rivets

Choosing based on price alone

Ignoring sealing requirements

Overlooking material thickness

Assuming all blind rivets perform the same

Avoiding these mistakes improves joint reliability and product lifespan.

Why Rivet Engineering Support Matters

Rivets may be small, but their impact is significant. Working with experienced manufacturers helps ensure:

Correct rivet selection

Consistent quality

Reliable performance

Avlock International India Pvt. Ltd focuses on engineered fastening solutions designed to meet real-world demands across industries.

Conclusion

The difference between a trifold rivet and a leakproof rivet lies in purpose, not preference. One prioritizes load distribution and grip, while the other ensures sealing and protection. When you understand joint requirements, material behavior, and environmental exposure, choosing between trifold rivets vs. leakproof rivets becomes straightforward.
