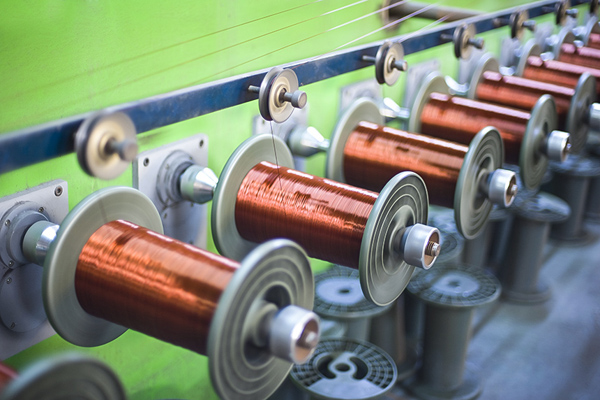

Appllication of Xinyu Copper Winding Wire

Xinyu Electrical is an integrated industrial and trade enterprise specialized in Copper Winding Wire with UL certification. There are more than 120 employees and 20 production lines in the company with an annual output of over 7,200 tons and yearly export volume of over 4,000 tons. Our products have exported to more than 30 countries, including Thailand, Malaysia, Indonesia, Turkey, South Korea, Japan, Spain, Mexico, Brazil, etc.

The company is always committed to producing various specifications (0.18~6.50mm) and temperature levels (130~220C) of enameled aluminum wire, enameled copper wire, enameled copper clad aluminum wire(ECCA). Under the the guidance of “Quality First, Customer Uppermost”, Xinyu has made great efforts in technological innovation and market development. After years of development, Xinyu brand becomes one of the best-known manufacturers in the field of enameled wire both in China and worldwide. As a professional and reliable supplier, Xinyu is willing to cooperate with friends all around the world for a win-win future.

Winding Wire consist of a solid or multistranded bald chestnut aqueduct cloistral by agency of a artificial sheath either fabricated of PVC or PE2. PVC-insulated ambagious affairs are about acclimated for voltages up to 1,000 V and at temperatures up to 75 °C. PE2-insulated ambagious affairs can be acclimated in submersible motors operating at college voltages as able-bodied and at temperatures of up to a best of 90 °C. Increased calefaction attrition is accomplished by cross-linking the polyethylene.The insulation bank array depends on the operating voltage.For voltage aloft 3kV, advocacy is to use a semiconducting band (HL) amid the chestnut aqueduct and the careful sheath. The apparent of NSW Ambagious Affairs which are cloistral with PE2 accept a attenuate alien band of polyamide (PA) for apparent protection.

200 Enameled Copper Clad Aluminum Wire

STANDARD :Q/320584 EIW001-2010
DATE :14th,Jul.,2017
SIZE : 0.900mm


1 Appearance Smooth Surface OK OK
2 Conductor Dimension 0.900±0.009mm 0.900 OK
3 Over-all Diameter ≤0.985mm 0.968 OK
4 Minimum Increase in Diameter ≥0.060mm 0.068 OK
5 Electrical Resistance (Ω/m, 20℃) 0.0399-0.0418 0.0408 OK
6 Elongation ≥23﹪ 31 OK
7 Breakdown Voltage (Room Temperature) ≥5.0KV 7.5, 8.2, 7.7, 7.8, 8.6 OK
8 Continuity of Covering ≤ 5 Pinhole 0 OK
10 Jerk Test Covering No Crack No Crack OK
11 Flexibility Covering No Crack 1d No Crack OK
12 Heat Shock Covering No Crack 3d                         No Crack OK
13 Solvent Test "H" No Crack OK
14 RoHS Confirmation RoHS Requirement OK OK


Used in electrical appliances, communication tools, instruments, transformers, generators,electromotors, and so on.


  • Advantages of Enameled Copper Clad Aluminum Wire:

    1.With composite characteristics: the bimetallic wire combines different beneficial properties in a single wire. Copper Clad Aluminum wire integrates the beneficial properties of the wonderful conductivity of copper and the light-weight of aluminum;

    2.With wonderful plasticity and easy to process further: CCA wire can be done in the same way as with copper wire. CCA wire is easy to be processed to fine wire , and CCA wire can be tinned.

    3.Economical effect: the density of CCA is about 32~40% of the copper, its length is 2.45~3.00 times of copper in same weight and diameter. All of these contribute to reduce production cost for wire manufacturers.

    4.Social and environmental effect: It is helpful to save copper resource by using copper-clad wire. The finished product will be easy to transport and install for light weight, and there is no pollution discharged during the production with clad-welding technique.

  • Xingsheng Zhou

    General Manager

    Tel: 0086 512 63818901

    Mob & Whatsapp: 0086 13801553500

    Email: [email protected]

    Enameled copper wire: http://www.xinyu-enameledwire.com/product/enameled-copper-wire/
