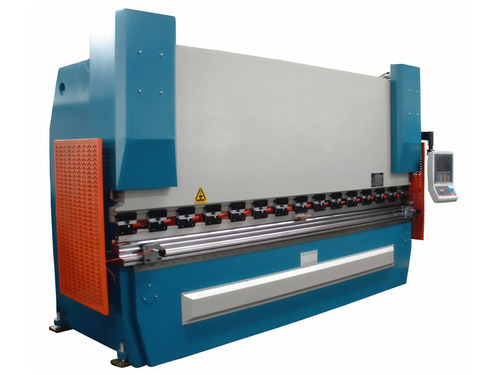

A press brake may be a machine pressing tool for bending sheet and plate material, most typically flat solid. It forms planned bends by clamping the work between an identical punch and die.

Typically, 2 C-frames kinds the perimeters of the press brake, connected to a table at rock bottom and on a movable beam at the highest. Rock bottom tool is mounted on the table, with the highest tool mounted on the higher beam

A brake will be delineated by basic parameters, like the force or tariff and therefore the operating length. Extra parameters embody the stroke length, the gap between the frame uprights or facet housings, distance to the rear gauge, and work height. The higher beam sometimes operates at a speed starting from one to fifteen mm/s.

There are many forms of brakes as delineating by the suggests that of applying force: mechanical, pneumatic, hydraulic, and servo-electric.

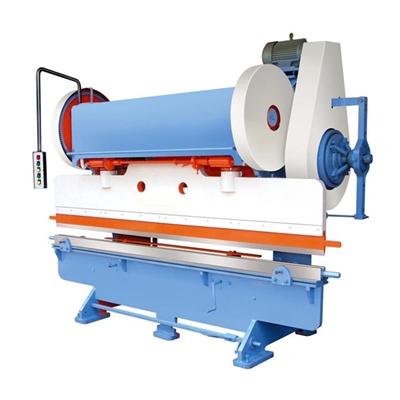

In a press, energy is extra to a regulator with an electrical motor. A clutch engages the regulator to power a crank mechanism that moves the ram vertically. Accuracy and speed are 2 benefits of the press.[4]

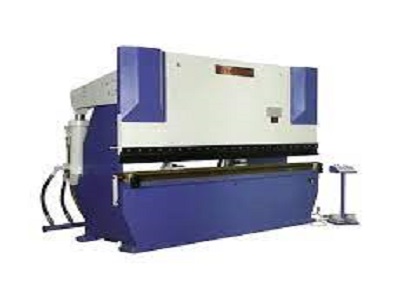

Hydraulic presses operate by suggests that of 2 synchronized hydraulic cylinders on the C-frames moving the higher beam. Servo-electric brakes use a servo-motor to drive a ball screw or belt drive to exert tariff on the ram.

Pneumatic presses utilize atmospheric pressure to develop tariff on the ram.

Until the Fifties, mechanical brakes dominated the planet market. The arrival of higher fluid mechanics and laptop controls have a light-emitting diode to hydraulic machines being the foremost in style.

Pneumatic and servo-electric machines are usually utilized in lower tariff applications. Hydraulic brakes turn out correct high-quality merchandise, are reliable, use very little energy and are safer as a result of, in contrast to flywheel-driven presses, the motion of the ram will be simply stopped at any time in response to a security device, e.g. a light-weight curtain or different presence sensing device.

Recent enhancements are chiefly within the management and a tool is known as a back gauge. A back gauge may be a device that may be accustomed to accurately position a bit of metal in order that the brake puts the bend within the correct place. What is more, the rear gauge will be programmed to maneuver between bends to repeatedly create advanced elements. Early brakes relied on the tooling to work out the bend angle of the bend. The animation to the proper shows the operation of the rear gauge, setting the gap from the sting of the fabric or previous bend to the middle of the die.

Press brakes typically embody multi-axis computer-controlled back gauges. Optical sensors permit operators to create changes throughout the bending method. These sensors send period of time knowledge regarding the bending angle within the bend cycle to machine controls that change method parameters.

Press brakes will be used for several totally different forming jobs with the proper die style. Forms of dies include:

  • V-dies—the commonest kind of die. Rock bottom dies will be created with different-sized die openings to handle a spread of materials and bend angles.
  • Rotary bending dies—a cylindrical form with AN 88-degree V-notch cut on its axis is seated within the "saddle" of the punch. The die is AN anvil over that the rocker bends the sheet.
  • 90 degree dies—largely used for bottoming operations. The die gap dimension depends on material thickness.
  • Acute angle (air-bending) dies—used in air bending, these will really be accustomed turn out acute, 90 degree, and obtuse angles by varied however deeply the punch enters the die by adjusting the ram.
  • Gooseneck (return-flanging) dies—The punch is intended to permit for clearance of already shaped flanges
  • Offset dies—a combination punch and die set that bends 2 angles in one stroke to supply a Z form.
  • Hemming dies—two-stage dies combining AN oblique angle die with a flattening tool.
  • Seaming dies—there is variety of how to create dies to supply seams in sheets and tubes.
  • Radius dies—a radiuses bend will be created by a rounded punch. Rock bottom die is also a V-die or might embody a spring pad or rubber pad to create rock bottom of the die.
  • Beading dies—a bead or a "stopped rib" is also a feature that stiffens the ensuing half. The punch incorporates a rounded head with flat shoulders on all sides of the bead. Rock bottom die is that the inverse of the punch.
  • Curling dies—the die forms a curled or volute edge on the sheet.
  • Tube- and pipe-forming dies—a initial operation bends the perimeters of the sheet to create the piece roll up. Then a die like a curling die causes the tube to be shaped. Larger tubes are shaped over a mandrill.
  • Four-way die blocks—a single die block might have a V machined into every of 4 sides for easy transmutation of tiny jobs.
  • Channel-forming dies—a punch will be ironed into a die to create 2 angles at rock bottom of the sheet, forming AN annulated channel.
  • U-bend dies—Similar to channel forming, however with a rounded bottom. Spring back is also a haul and a method might have to be provided for countering it.
  • Box-forming dies—while a box is also shaped by easy angle bends on all sides, the various facet lengths of an oblong box should be accommodated by building the clock on sections. The punch additionally must be high enough to accommodate the peak of the ensuing box's sides.
  • Corrugating dies—such dies have a wavy surface and should involve elastic device punch parts.
  • Multiple-bend dies—a die set is also in-built {the shape the kind} of the required profile and form many bends on one stroke of the press.
  • Rocker-type dies—a rocker insert within the punch might give some region motion, additionally to the up-and-down motion of the press.
