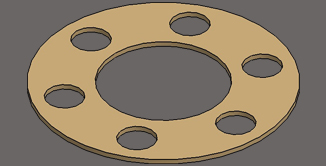

Dxfcreator, the website for online creation of flat pattern sheet metal parts and generation of DXF files of these sheet metal parts, all this without using CAD software and within a very short space of time.

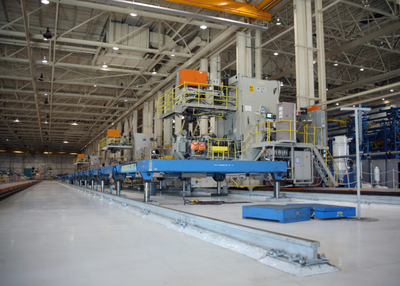

Through the use of dies and punches, metal stamping creates custom designs for various parts and equipment.
With the punch creating the inside shape of the mold, and the die creating the outside shape of the mold, they come together to form a unique design “blank”.Considerably more affordable than other forms of metal fabrication such as extrusion or forming, metal stamping is an ideal choice for producing high quality sheet metal products at a large scale.
Additionally, this process is utilized for producing custom, complex designs at unmatched efficiency and precision.In order to choose the best metal stamping manufacturers for your unique production needs, it is important to check on a number of factors relating to their production capacity rates, reputation in the industry and how many years of experience they bring to the table.How long has this company been in business?
Are there verified reviews, press releases or articles online, documenting past projects they have performed?
Make sure the company you choose stands out to you for their exceptional reputation.
Do they have experience in your specific industry?
Often custom sheet metal fabrication is required to product complicated HVAC duct work, metal roofs, structural siding or column wraps, and sheet metal shop drawings that contain precise geometry of the folded and flat sheet is required to ensure the the end product is manufactured as needed by the engineer.
This type of drafting is very specialized and requires a true knowledge of the machines that cut, bend and punch sheet metal.
With accurate sheet metal shop drawings, the metal fabricating shop will experience less error and scrap, as often the geometric data is sent from the CAD file directly to a cutting or bending machine.
Sheet metal for duct work is first drafted as required by the HVAC routing plan, along with all junctions, bends and risers necessary.
Our drafters use CAD software to unfold sheet metal parts and have full training in creating corner and edge reliefs; adjustments for bend allowances; creating hems and hinges; and accurate placement of all knockouts, countersinks or tapped holes.
With precise drafting of sheet metal, we can provide the data required for laser cutting, CNC or CAM fabrication machines.
