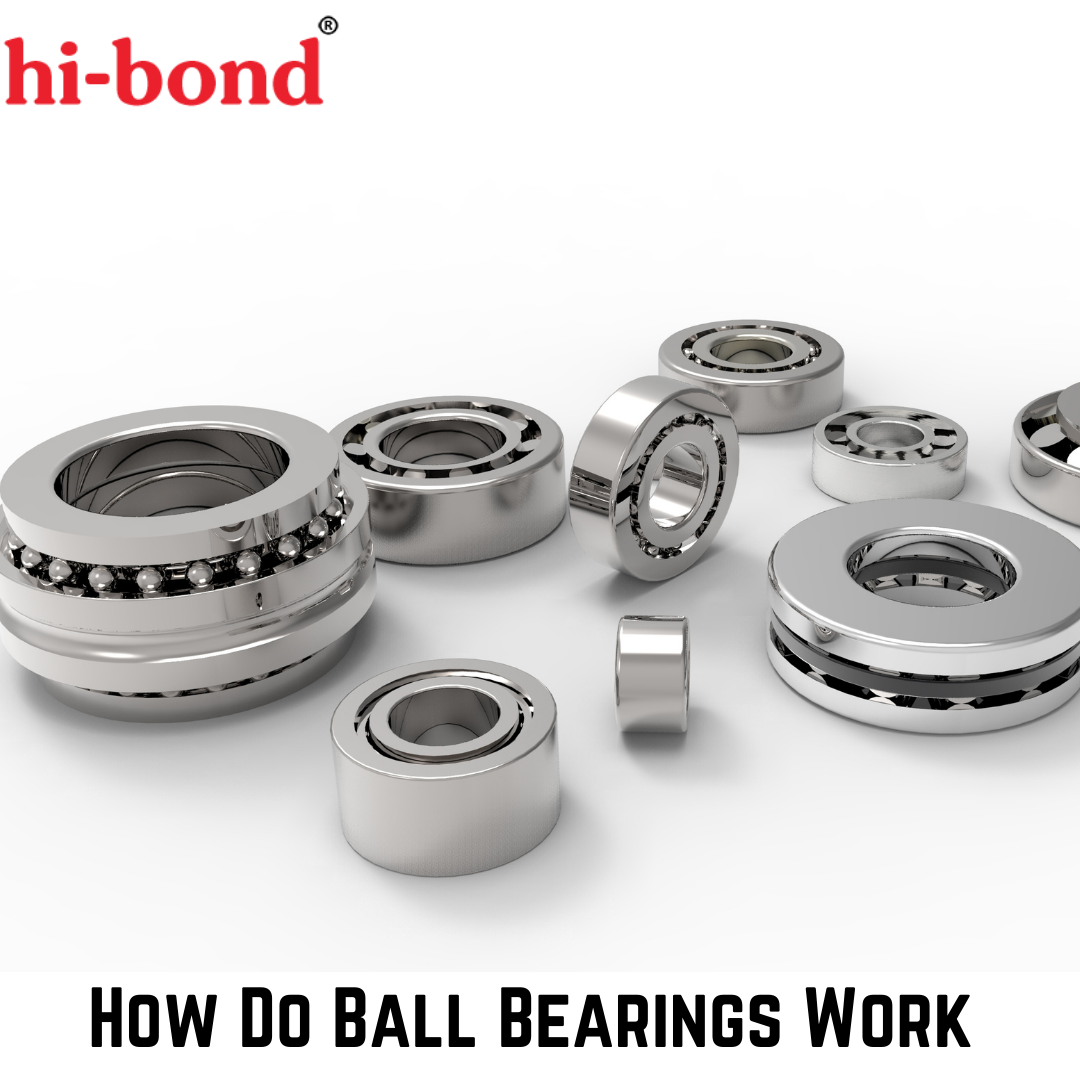

Ball bearings are regularly used in rotary movement applications. It comprises a row or multiple rows of balls between inner and outer raceways. These design concept elements produce less friction than the sliding parts. One ring is attached to the shaft, and it rotates the balls around the inner raceway. While the other ring remains stationary.
Moreover, the rotational movement has low friction, making it great for applications with high-speed and low-friction requirements. Bearing manufacturing company handles two types of loads: Thrust loads and radial loads. Thrust is called axial; it forces acting parallel to the bearing axis. While the radial loads act perpendicular to the bearing axis. Ball bearings withstand both thrust and radial loads.
The relative load capacity they are typically used in applications with load requirements. The spherical roller shape leads to minimal contact between balls and raceways. Smooth movement of ball bearings to provide some misalignment of the inner or outer raceway.
Types of ball bearings
Different types of bearings that specialize in different applications:
Angular contact: These bearings are axially asymmetrical. And this redistributes radial load-bearing gives great support to load in both axial and radial directions. Large contacts support higher axial load and lower radial loads.
Axial: Bearings and bushings of axial utilize multiple raceways side by side. They are specialized for axial and radial loads, and it damages the bearing by forcing the raceways.
Deep-groove: Unique design of these bearings supports a higher load than other ball bearings. However, they cannot handle misalignment as normal ball bearings.
Features of ball bearings
Ball bearings have many features, and it provides different types of support the performance of bearings.
Rows: Bearing manufacturer, installed bearings to distribute loads. Double-row bearings have two rows and balls rather than one to install multiple bearings eliminating needs.
Flange: The bearing housing can install to fix the bearing onto the mounting surface.
Cage: Cages secure the balls within the bearings to keep in place and reduce friction. It is commonly made of steel or polyamide plastic; all depend on the application. It is cheaper to produce cages, and it may be suitable under temperature.
Material: Generally, the ball bearings are made from steel or ceramic. Ceramic is usually used for challenging condition applications as vacuum or underwater. Ceramic dense is 40% less than steel. These bearings are different from others and do not need lubrication. Featuring hybrid bearings and ceramic balls are used to decrease friction.
Self-alignment: The feature of it is an outer ring with a spherical raceway. It allows the bearings to tolerate angular misalignment for shaft deflections. These typical bearings have a lower load capacity than the other ball bearings. It is used in applications with the long shaft of transmissions or textile factories.
Assembly types
Ball bearings can be assembled in many ways, impacting the load capacity and performance of the bearing.
Conrad: This method putting the inner ring at the outer ring with an eccentrically single point contact. Balls are inserted opposite to the connection and distributed, which forces the ring into proper distribution.
Usually, the cage is installed as well as maintain even ball distribution. A limited number of balls can insert in the assembly method, limiting the bearing's load capacity.
Slot fill: In this method, balls can slip into place, and it allows the number of balls to be inserted in higher radial load capacity. However, the lower axial load capacity notches the raceways. Lead to discontinuity in the rings that can impact on the strength of bearing.
Relieved race: The inner ring's outer diameter or the inner diameter's outer ring is altered to produce a large space to insert the balls. It allows for any number of balls to be inserted. Bearings can only support the axial load, and with the assembly method, the direction of it away from the relieved race.
Fractured race: This ring completely allows for the ball insertion and then re-assembles. A pair of steel bands also support the fractured section during bearing alignment. This method also allows for any number of balls and supports the axial load in each direction.
Conclusion:
Hi-bond Bearings Pvt. Ltd. has a large variety of ball bearings types. Sometimes, it isn't easy to choose the most effective type for your application. But our experts always supply available outfits and help you with whatever bearing you need.
