A port is a crucial software-based physical component which serves as a communication endpoint at the transportation layer of the Internet Protocol Suite, mainly TCP/IP. It has a unique id which is the port number mentioned along with the associated IP address to facilitate inter-device communication, whether remote or wired. It is commonly required while communicating with external network devices, and is really the point from where data is sent and received. This network port is process or application specific, which means the destination port is matched with the source port when sending data packets. This way, multiple ports may be required for sending and receiving data in connected networks. There are various types of ports depending on the type of network such as legacy copper cable and fiber optics. Both RJ45 and SFP ports are a part of most switches which are compatible with any type of network. There are RJ45 port connectors for copper cables, while SFP ports or small form factor pluggable are used for connecting fiber optic cables. This post discusses the difference between RJ45and SFP ports and more.
Various Types of Ports
As mentioned, there are various types of ports depending on the network and process type. For instance, RJ45 for Ethernet cable, SFP and SFP+ for fiber cables, GBIC for Gigabit Ethernet, and so on are used in various network devices such as switches, routers, and storage devices.
- RJ45 connector ports: These are simple in design and compatible with all Ethernet cables including the advanced ones such as Cat5e, Cat6, Cat7, Cat8, and beyond. These are commonly used in legacy as well as blended networks. However, they have limitations with regards to speed and transmission distance among other factors.
- SFP Modules: These small form factor pluggable fiber modules with small form factor (SFF) connectors are typically used for connecting fiber optic cables. There are various types of connectors such as LC, SC, ST, and many others to connect these cables, wherein choosing the right connector is crucial. These ports are more versatile and also useful to connect copper SFP modules with Ethernet cables. They can be used in both single mode as well as multimode networks. These are typically meant for high speed and seamless connectivity for long geographical distances. They offer a high signal strength throughout the transmission process.
Difference Between RJ45 and SFP Ports
While both these types of ports can be used together in a switch or router, they have many differences based on several factors. Here are some of the pointers which explain the difference between RJ45 and SFP ports:
- Connection types: As mentioned, one can connect an SFP module to fiber cables as well as copper Ethernet cables ranging from Cat5e onwards. On the other hand, RJ45 connectors are designed for all types of Ethernet cables, wherein cat5e and Cat6 are the most commonly used.
- Transmission distance: The transmission distance using Ethernet cables can go up to 100 meters. Also, as the distance increases, the signal strength may decrease. On the other hand, with SFP port switches, you can increase the distance up to 100 km without really compromising on the signal strength. For both the port types, the data rate is around 1000Mbps.
- Security and reliability: Fiber optic cables are proven to be more reliable compared to Ethernet cables, and the former are difficult to hack. Also they use light signals instead of electricity which makes them more secure than Ethernet cables. Also, RJ45 ports may confront issues such as electromagnetic interference (EMI) and voltage fluctuation.
- Latency: Latency issues can happen in case of a long transmission distance over an Ethernet cable. This is because of connectivity disruptions and signal attenuation. This also depends on the distance between two connected devices. However, with fiber optics, there are no latency issues regardless of the distance of transmission.
- Power consumption: SFP ports consume lesser power than RJ45. SFP ports can remain dormant till they are activated because of an SFP module installation and data transmission. This is also one of the reasons for power savings.
- Affordability: While RJ45 port based devices are less expensive compared to the ones with SFP modules, the latter are cost efficient in the long run as they speed up the network and consume less power. However, the best option are combo port switches or routers which have a combination of RJ45 and SFP ports. These are especially suitable for blended networks. The number of ports can range from 2 to 20 and beyond with roughly a quarter of the ports being SFP.
Gaining an understanding on RJ45 vs. SFP ports will be certainly helpful. However, it is equally important to focus on the quality and other factors. If you are looking for good quality Fiber Optic Network Switches with multiple RJ45 and SFP ports for your existing or upgraded network, ensure you check their compatibility with the existing network devices. Also, it is crucial to source these devices from a well-known and certified manufacturer and supplier who deals in network devices suitable for copper as well as fiber networks. Ensure, the supplier has a variety of switches with various configurations and the number of ports to match your requirement. Additionally, it is important to discuss your requirements with the manufacturer or to get the right type of switches with the required ports.
Prior to rolling out any improvement or substitution of the handset part we should make certain to have a completely equipment viable module when utilizing it with the facilitating gear like switch/switch or optical vehicle network hardware.
Some Cisco organizing hardware for instance will acknowledge just CISCO sourced optical handsets through an underlying firmware similarity check at the hour of inclusion.
Just SFP modules that pass this check are usable.
There are two undocumented orders which can be utilized to constrain the Cisco Catalyst change to empower the GBIC port and utilize the outsider SFP/SFP+.Read the full article here:https://www.cbo-it.de/en/blog/transceiver/how-to-install-and-remove-a-sfp-sfp-plus-transceiver.html
“Chawla Electronic Your Wholesale Distributor for All the Consumer Electronic Products”Our PCB mount connectors can be soldered to PCBs or Printed Circuit Boards with ease and provide the right pin headers to help connect circuits.

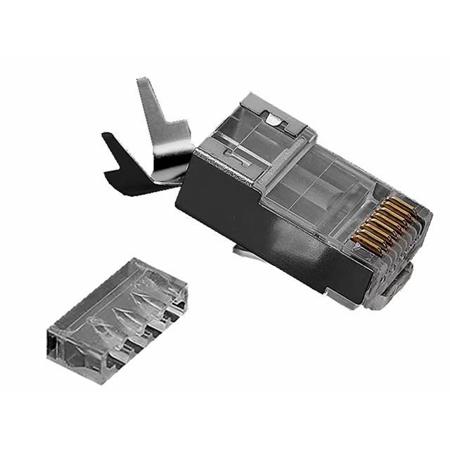

These are great for implementing all kinds of electrical and computer projects.Specifications:• RJ45 modular plug supports 4 twisted pairs,8 positions, 8 connectors of 100pcs/Pack• Housing: PC, UL94V-2, transparent color• Contact Terminal: Copper Alloy• Finished: 03MU micro-inch gold plating• Operating temperature:-40⁰C to 80⁰C• Use for 24-26 AWG stranded wires,meet wiring scheme T568A/T568B
