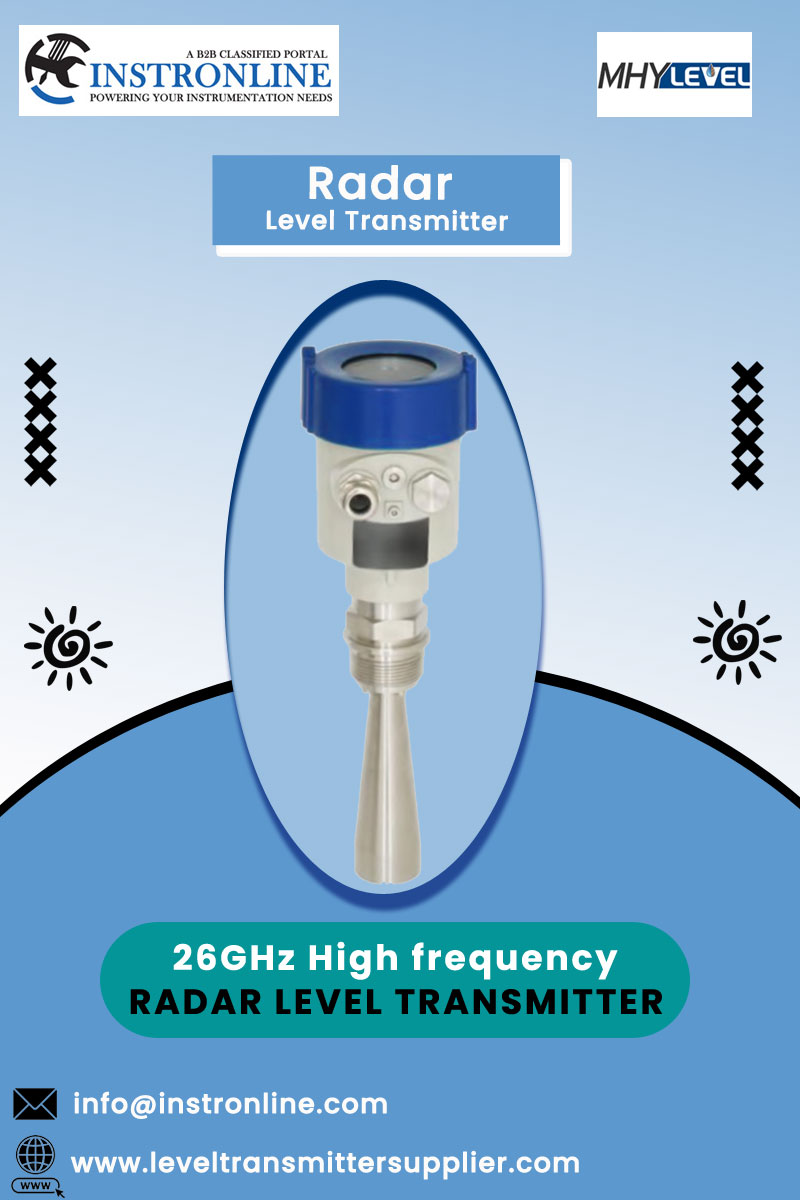

MHYlevel 26GHz High frequency Radar Level Transmitter SEAL02 : Level Transmitter Suppliers and Exporter In India
Application : Liquid
Measuring Range : 30meter
Process Connection : Thread, Flange
Medium Temperature : -40 °C ~ 150 °C
Process Pressure : -0.1~0.3 MPa
Accuracy : ± 3mm
Protection Grade : IP67
Frequency Range : 26GH
Signal Output : 4... 20mA/HART (2wire/4) Rs485/ Modbus
Explosion-proof Grade : ExiaII C T6 Ga
Features of 26GHz Radar Level Transmitter
• Small antenna size, easy to install; non-contact radar, no wear, no pollution.
• Almost free from corrosion, foam impact; hardly affected by the change of the temperature, pressure and water vapor in the atmosphere.
• Severe dust environment is not likely to affect the work of the high-frequency level meter.
• Shorter wavelength can achieve better reflection for the inclined solid surface.
• The small field angle and energy concentration, enhanced echo capabilities, and beneficial to avoid interference.
-Minimized measuring blind spot can gain better result of small tank measurement. -High SNR, even in the case of fluctuations can result in better performance.
• High frequency, the best choice to measure solids and low dielectric media.
