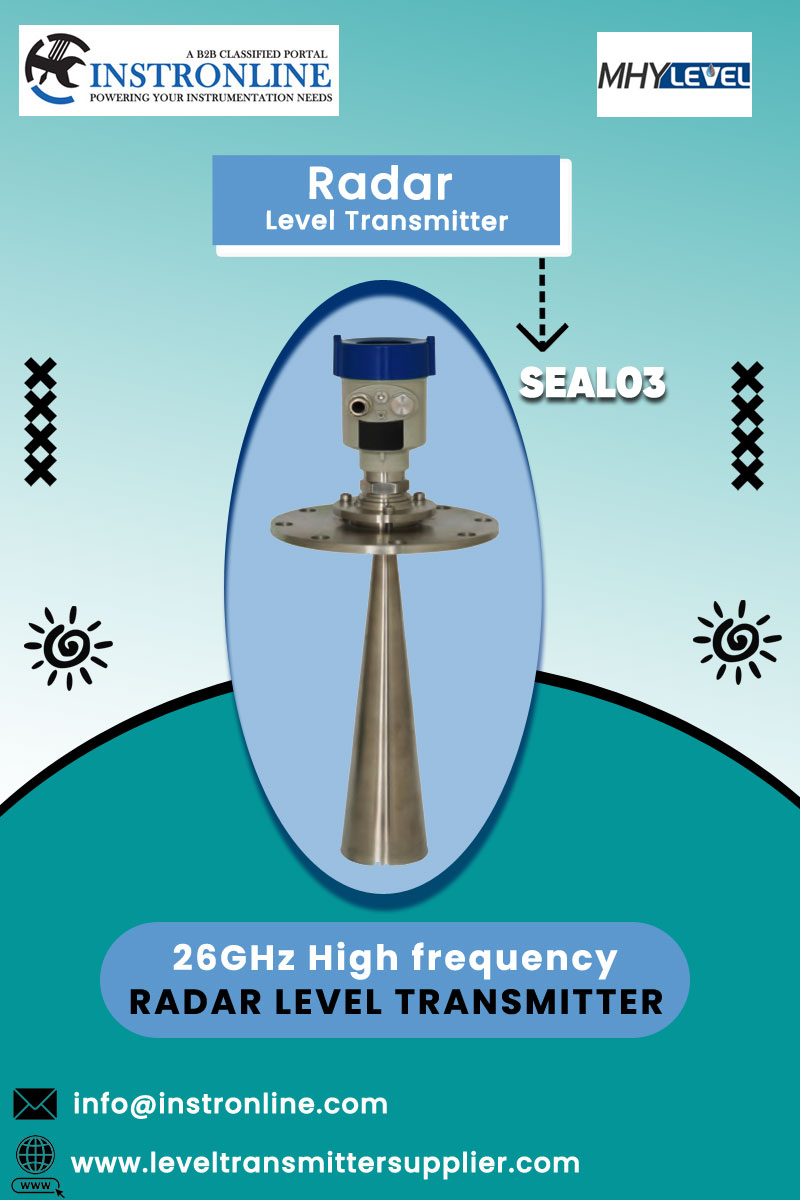

High frequency Radar Level Transmitter SEAL03

avatar
Level Transmitter Supplier
High frequency Radar Level Transmitter SEAL03

MHYlevel 26GHz High frequency Radar Level Transmitter SEAL03 : Suppliers and Exporters


Application : Solid material,Strong dust

Measuring Range : 70meter

Process Connection : Universal Flange

Medium Temperature : -40 °C ~ 250 °C

Process Pressure : -0.1~0.1 MPa

Accuracy : ± 15mm

Protection Grade : IP67

Frequency Range : 26GH

Signal Output : 4... 20mA/HART (2wire/4)Rs485/Modbus

Explosion-proof Grade : ExiaIIc T6 Ga


Features of 26GHz Radar Level Transmitter


• Small antenna size, easy to install; non-contact radar, no wear, no pollution.

• Almost free from corrosion, foam impact; hardly affected by the change of the temperature, pressure and water vapor in the atmosphere.

• Severe dust environment is not likely to affect the work of the high-frequency level meter.

• Shorter wavelength can achieve better reflection for the inclined solid surface.

• The small field angle and energy concentration, enhanced echo capabilities, and beneficial to avoid interference.

•Minimized measuring blind spot can gain better result of small tank measurement. •High SNR, even in the case of fluctuations can result in better performance.

• High frequency, the best choice to measure solids and low dielectric media.


For More Information visit:- http://www.leveltransmittersupplier.com/

Drop a mail on- [email protected]
