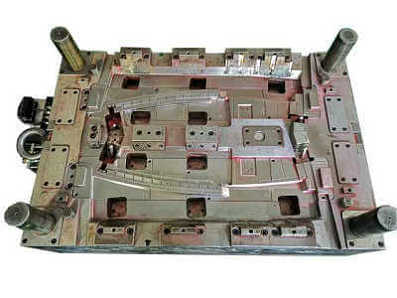

plastic injection mold

plastic injection mold


Due to advances in plastic injection molding machines and mold manufacturing machinery, there will definitely be a trend to manufacture both larger sized and smaller plastic mold.

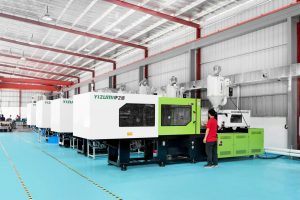

Molding machines organizations are producing larger machines to accommodate product designs that were not possible before because of


Overview of the Industry 5


molding-machine overall size restrictions. Products including auto fenders and wrap-around bumpers will be formed on molding machines that are the dimensions of small houses. The much more this is done, the much more it will push producers to construct much bigger and larger machines. Certainly, each and every injection molding machine must have a plastic injection mold. So the molds will be developed larger and larger to accommodate product size needs.

Alternatively, advancements in products and developing systems have resulted in the manufacturing of little pieces that previously were not candidates for injection molding. Products including small electrical connections and little medical valves are now being actually designed. The tolerance needs and little dimension of these types of units require extremely accurate, sophisticated plastic injection moulding machines; these are being built now in sizes that will match on the top of an ordinary desk. The molding machine tool producers are trying to develop even small machines as the need rises. So, the mold for these machines are also smaller sized and smaller. There are molds now that can fit in the palm of a human hand, and the trend is towards even smaller plastic molds to suit near future item requirements.

Lead Times

time scale is defined as the total period of time demanded to acquire a product, from order to end up unit. To put it simply, the time scale for an injection mold extends from the time a purchase order is obtained by the plastic mold maker to the moment the mold is supplied to the firm purchasing the mold. A typical lead time today extends from 10 to 20 weeks for an average injection molds. (This does not include time to fix the mold or test it out in a production environment.).

A lead time of 10 to 16 weeks might not feel like much to those who have been in business a while. In fact, it is a terrific improvement over what dominated before. In earlier days, the lead time might have been 30 weeks or more time. Nonetheless, in today's very competitive surrounding, lead times are critical since they dictate when a goods can get to its market. The sooner the item could be introduced, the faster it can start bringing in revenues, and the faster the company can begin spending those profits in new goods development.

There are numerous means to lessen lead times, and many are being actually pursued today. Particular of these promise to bring lead times down to unheard-of numbers:.

Computer-generated data. Computers permit moldmakers and product designers to work very closely with each other even when they live in different capitals, states, or countries. As computers end up being faster and more powerful, and as computer programs become more versatile, product designs can be generated and evaluated faster, and the same data can be.


6 Plastic Injection Molding.


used to make the mold. Indeed, these factors may be done as parallel efforts so the moulds can be started before the item design is even completed.

mould materials. The common method has been to use top-quality mold steels to construct the cavities of the injection mold. Nonetheless, new metal alloys and update to present aluminium alloy are allowing the plastic moulds to be built faster and weigh less. One material that will be used frequently is aluminum alloy. Aluminum is now used mostly for prototype mold, but advances in the component alloys and approval by moldmakers has made it possible to use aluminum in lots of manufacturing injection mold cases. Beryllium copper material, brass, soft steels, and even plastics like epoxies are being made use of increasingly more in an effort to reduce lead times for producing plastic injection and thus get products into the marketplace faster.

Using these kinds of materials and new computer tools and programs can drastically reduce lead times. Sometimes, lead times have been minimized from the ordinary 12 to 16 weeks to only 10 days. And the technology will soon be available to carry it down to only a few hours.



Advances in plastics fabrics have been profound. In 1995, there were approximately 18,000 different materials available for molding. These are increasing at an average rate of 750 each year. The majority of offered materials are alloys or blends of previously established materials, and an item engineer will probably be able to select from them a material that offers exactly the right properties for a particular need. Again, computers come into play because the designer can not potentially review the property values of all those materials in a practical amount of time. The computer can do it in a few seconds and will certainly list the materials that meet no matter what requirements the designer demands. Then the part designer can decide from just a few resin as opposed to 18,000. But even if a precise plastics match does not exist, the designer will have the ability to call a compounder to produce a material that does precisely fit the requirements. Naturally, that adds one more material to the list of 18,000, and that's how the list progressed to begin with.


Reusing will remain to be a huge issue later on, as it is today. Consumer acceptance of goods constructed from recycled plastic resin will enhance, making it more beneficial for firms to create such products. Technological advances will make it easy to separate discarded plastic products so they may be properly recycled. Advances in machinery and material.


Overview of the Industry 7.


additives will allow mingled plastics (that can not be separated) to be used in products such as parking lot bumpers, picnic tables/benches, and water-sport products such as boating docks. Some of these products are available today, but with future advances, they can be sold at more competitive prices, and their availability and use will grow. Products will be designed with recycling in mind so they may be easily dismantled and identified for material content.

If you are looking for plastic molding and plastic injection mold service, you are welcome to contact us by plasticmold.net
