A Comprehensive Description About Three Level Orientation of Terminal Blocks

Wire-entry orientation:

There are three common wire-entry orientations for terminal blocks. Which is best depends on your overall design requirements. A screw terminal tightens a clamp around a wire, while a push-button terminal opens a spring clamp when the button is pressed. Push-in terminals are similar, but they support the direct insertion of wires. Each style has its benefits and disadvantages. Wire-entry orientation is an important consideration when constructing an installation.

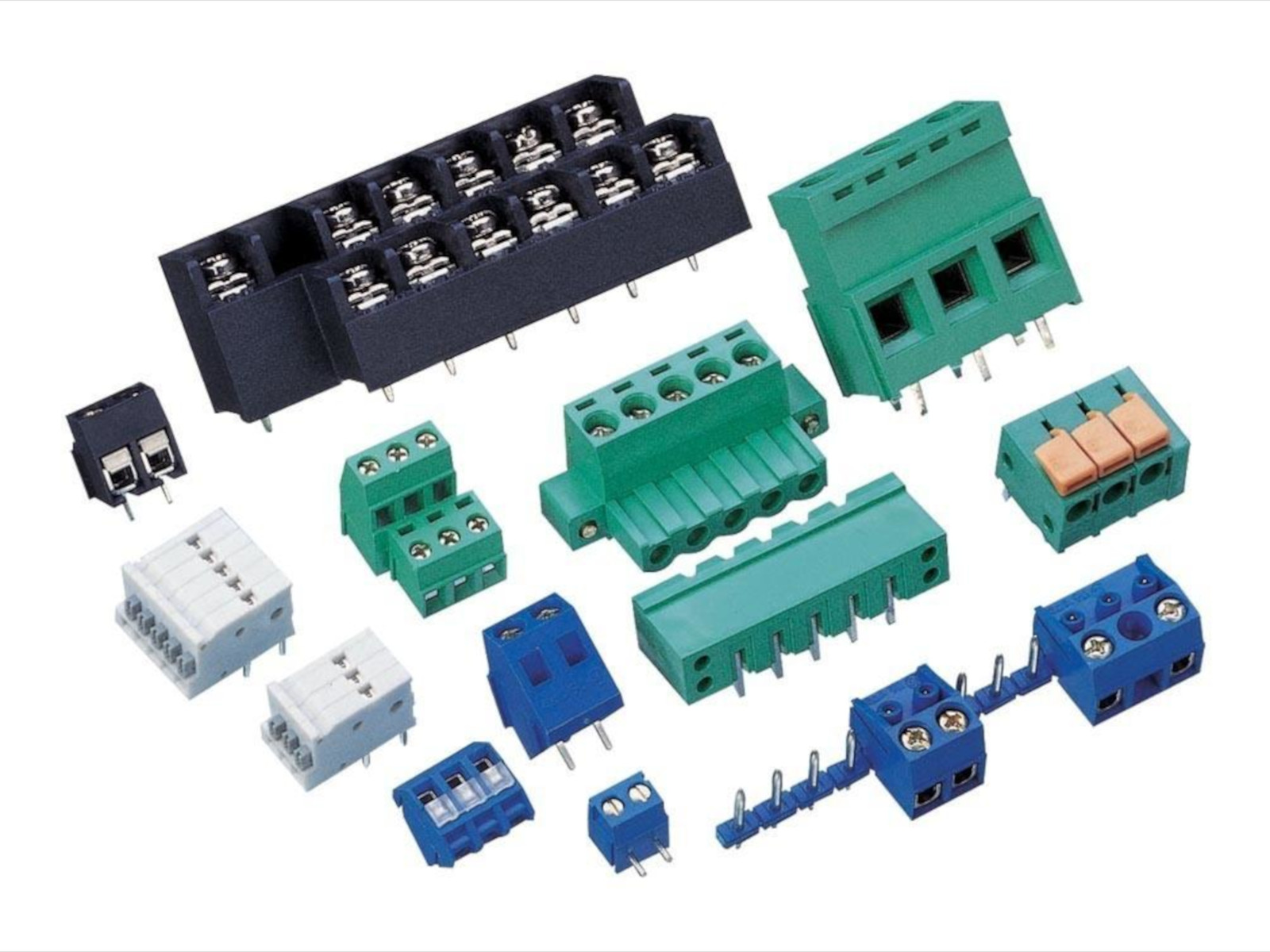

The most common types of terminal blocks are feed-through, barrier strip, and PCB mount. Various designs and configurations are available, including multi-level, dual-row, and single-row terminals. When designing a system that uses terminal blocks, match the electrical and voltage specifications. Ideally, the voltage and current ratings of the terminal block should be higher than that of the circuit or system.

Current Rating:

In addition to safety and electrical considerations, a terminal block should have a current rating. A current rating determines the maximum current per pole based on its conductivity and cross-sectional area. Too high a current can lead to overheating, which presents serious safety hazards. To avoid overheating, select a terminal block with a current rating of at least 150% of the maximum current of the system.

Screw clamp terminal blocks feature screw-like holes that hold the wires in place. A simple adjustment will release them from their positions. There are two types of screw-entry terminal blocks, with one side featuring a ridge and the other having a slot. Both types of screws can be inserted into the female connector, forming an arbitrary long strip together. Besides screw-type, terminal blocks are available in top and side-entry orientations.

Important Considerations:

When choosing a terminal block, it is crucial to consider the mechanical constraints that may affect the overall footprint, wire-entry orientation, and accessibility of the connections. Wire-entry orientation can be determined by the physical design restrictions or by the wire orientation requirements of the assembly. Wire-entry orientation affects safety and functionality. The wire-entry orientation of terminal blocks can be fixed in a vertical or horizontal orientation, which is the most common orientation.

In addition to wire-entry orientation, a terminal block may be interlocked or single-piece. Interlocking terminal blocks are generally two-pole configurations, allowing for varied pole counts and connecting different colors of the same module. Single-piece terminal blocks are more robust and rigid. If frequent connecting is necessary, consider purchasing pluggable terminal blocks. The plugs are connected to a fixed receptacle on the PCB.

Choosing the correct type of terminal block can be complex. Several factors to consider include the type of wire you plan to use, current and voltage requirements, and the environment. When choosing a terminal block, choose one that meets all of the system's specifications. Then, you can choose the best one for your needs. While terminal blocks may be simple and inexpensive, they still require some understanding of electrical specifications and how they function.

Screw-in orientation:

While terminal blocks come in many forms, there are three main types. The choice of wire-entry orientation will depend on your design layout, accessibility, and fit. In this article, we'll look at both options. Learn more about each type to choose the one that's best for your needs. This article will also discuss some of the safety ratings of terminal blocks. Read on for the benefits of each type.

Screw terminal blocks and hold wire and cable securely. They're mostly ideal for commercial and domestic wiring applications and are fastened with flat-head screws. Though wires are not physically bonded to the terminal block, they're still strong enough in many scenarios. Using the wrong screw, however, can damage the cable inserted into it, resulting in an unreliable connection. Listed below are the benefits and drawbacks of each type.

In addition to helping connect to other equipment, terminal blocks are ideal for non-essential wiring. These blocks feature an end plate and a plug, which can be inserted into a female connector to make it easier to swap wires. The end plate will also help to keep wiring organized, as it won't get caught between the two terminals. Lastly, you can use mark tags to label your wire terminations.

Size of Terminal Blocks:

When purchasing terminal blocks, read the specifications to determine which wire sizes suit your system. The terminal blocks list the size of wire they accept in North American wire gauge (AWG). It would be best to consider the wire type when purchasing terminal blocks. Push-in-style terminal blocks typically use single-core wire, while screw terminals use multi-core or stranded wire. If you are using terminals, check for their flammability ratings.

Terminal blocks with mating pairs are also an option. These connectors are more secure than pluggable types. Moreover, they are easier to use in designs where primary connections are often disconnected. They allow for easy replacement and inspection. And they are easy to install and remove from equipment. This makes them perfect for fieldwork. They are also convenient for electrical wiring.

Euro Style Terminal Block:

The Euro Style terminal block has 2 positions with a 5.0 mm pitch. They feature a slot in the middle and a ridge on the other side. Both terminal block types can lock together to form an arbitrarily long strip. Terminal blocks are available in two orientations, screw-in orientation and top-entry. For more safety, choose terminal blocks with plastic frames. This will increase the safety of service crews and installers.

Screw-in orientation of terminal blocks is the most common type of connection method for terminal blocks. A screw inserts a wire into the terminal block and clamps it down. Larger terminal blocks often have a screw that pushes the wire against the metal body, but thinner wires use a flat-head screw to compress the wire against a metal insert. In some ways, screw-in terminal blocks are analogous to fish traps.

Three-level orientation:

In this article, you'll learn about the three-level orientation of terminal blocks, how to choose the right one, and the primary electrical and mechanical considerations that will affect your decision. Ultimately, you'll be better equipped to select the correct terminal block for your needs. Listed below are other helpful tips to keep in mind as you choose the right terminal block for your project. The first step is to identify your application's safety requirements.

There are three common types of terminal blocks: PCB mount, feed-through, and barrier strips. Each has its benefits and limitations. The following table discusses their fundamental principles and configurations. It's essential to check the installation instructions carefully before you install your terminal blocks. Once you've made your selection, make sure to turn off any electrical current before connecting wires. Then, install your terminal blocks in the proper orientation, and you'll have a system that works perfectly every time.

Pitch of Terminal Block:

The terminal block's pitch is defined as the center distance between two adjacent poles. The pitch is often determined by the overall rating of the terminal block. This factor also determines the amount of current that can be passed through the block. The standard pitches of terminal blocks include 2.54 mm, 3.81 mm, and 5.0 mm. When choosing a terminal block, you should match the number of contacts with the number of wires to connect them to a circuit.

Terminal blocks are an excellent solution if you need to connect several wires in one system. They help secure and organize wire connections and allow easy swapping out for inspection or repair. They're also versatile, making them useful in many electrical wiring applications. And they are straightforward to install. You can even do it yourself with a screwdriver. So, if you're looking for a terminal block, it's time to consider the three-level orientation of the blocks. You'll be glad you did.

Working Principle:

The three-level orientation of terminal blocks allows you to place multiple connections on one block. On one end, a terminal block holds a cable firmly and securely, while the other side has a plug that plugs into a female connector. The plug is easily interchangeable and can even hot-swap between different cables without losing connections. When choosing the right terminal block, consider the following factors:

Weidmuller's modular terminal blocks are made of polyamide and melamine. Weed's high-grade flammability rating is comparable to that of thermoset plastics. Its electrical properties are comparable to those of other thermoplastics. You can find a terminal block that will suit your specific application. These versatile pieces of electrical equipment can help you meet your goals for your electrical system. If you're unsure how to choose one, contact CUI Devices today!
