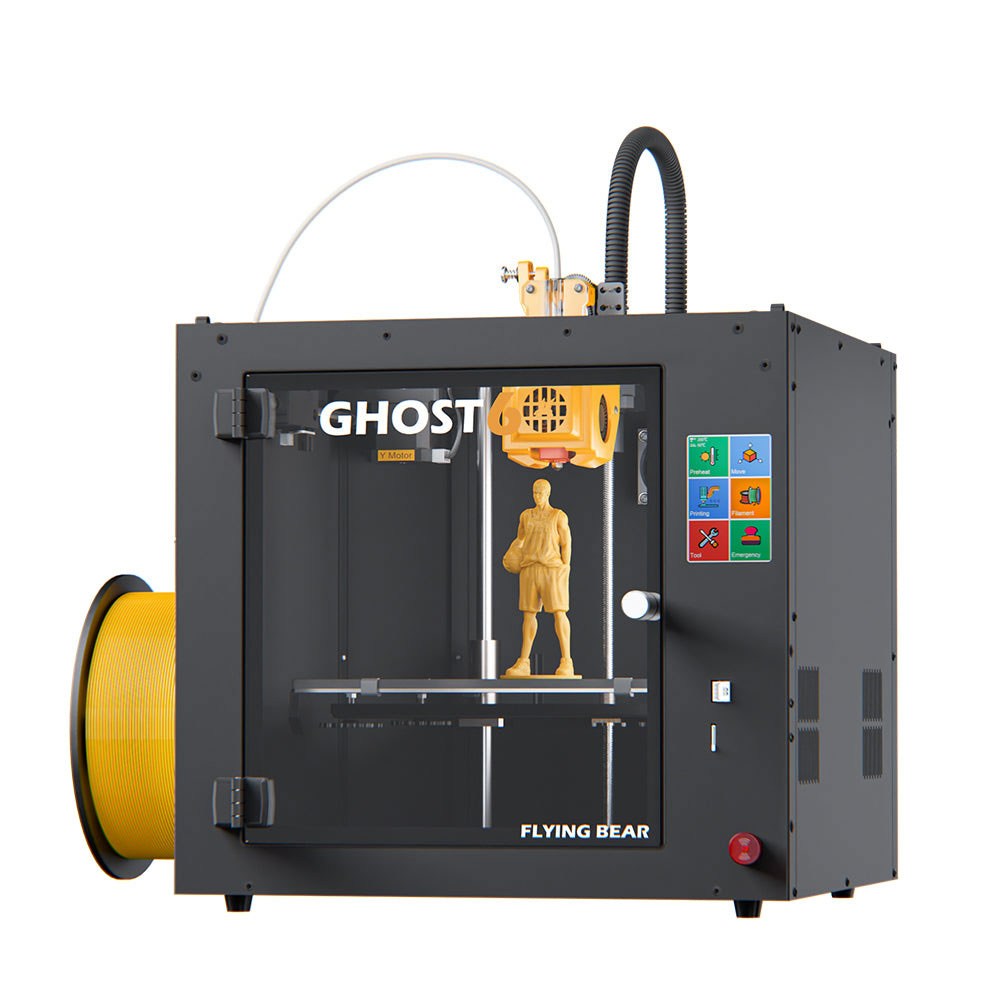

Flying Bear has released the Ghost 6 3D printer with CoreXY kinematics, direct gear extruder and removable lid.
The new system features the TMC-2225 silent drive and a dual drive gear direct extruder with a 1:7.5 ratio for more consistent and reliable filament feeding. A removable transparent panel on the extruder allows you to monitor the status of the feeder and facilitate maintenance.
The supply of materials is monitored by filament sensors and the stacked layers are cooled by double blowing. The Ghost 6 3D printer has a semi-enclosed chamber, but to further stabilize the background temperature when working with materials subject to strong thermal contraction, a removable folding cover can be fitted on top.
For safety reasons, the 3D printer is equipped with a fire sensor that turns off the power and sounds an alarm in the event of a fire.
Other features include a 3.5" touch screen, wireless (Wi-Fi) and automatic saving and resuming of workflows in the event of a power failure.
Flyingbear Ghost 6 3D printer technical specifications.
- 3D printing technology: FDM
- Kinematic solution: CoreXY
- Number of extruders: 1
- Building area size: 255x210x210 mm
- Table size: 257x230 mm
- Layer thickness: 0.05-0.3 mm
- Positioning accuracy: 0.01mm (X and Y), 0.002mm (Z)
- Print speed: up to 150 mm/sec
- Maximum hot end temperature: 210°C (recommended), 260°C (maximum)
- Nozzle diameter: 0.4mm (standard)
- Table temperature: 60 - 110°C
- Power supply: 24V, 300W
- Interfaces: Wi-Fi, USB, MicroSD
- Recommended software: Repetier-Host, Cura
- File formats: STL, OBJ, DAE, AMF
- Operating system: Windows, Mac OS
- Rod diameter: 1.75mm
- Consumables: PLA, ABS, high impact polystyrene, wood composites, etc.
- Dimensions: 377x365x349 mm
- Weight: 13 kg (net)
The unit is delivered almost assembled, only a few parts need to be installed, which takes about five minutes.
