Pneumatic Rotary Cylinders are widely used in industrial automation systems, especially in robotics and assembly lines. These devices are essential components for producing rotary motion, and their reliability and precision are crucial to the efficiency and safety of the machines they operate. This guide will delve into the details of these cylinders, their design, working, applications, and maintenance tips.
What is a Pneumatic Rotary Cylinder?

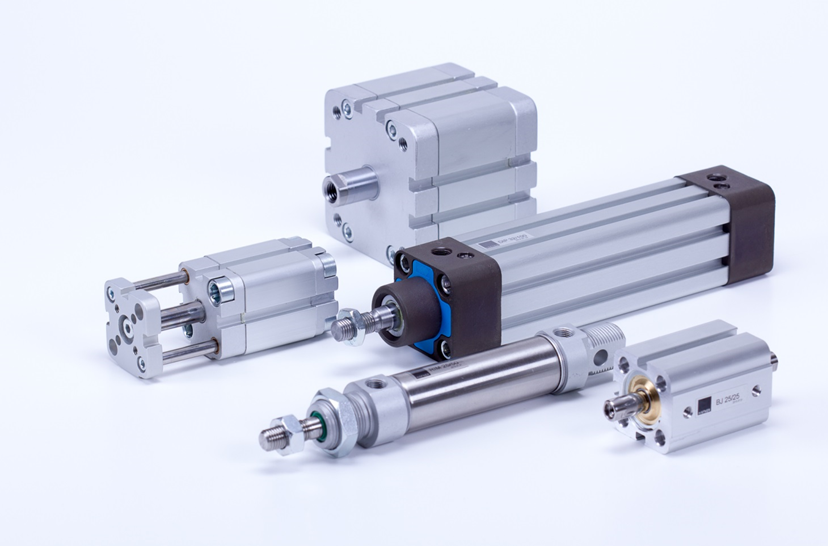

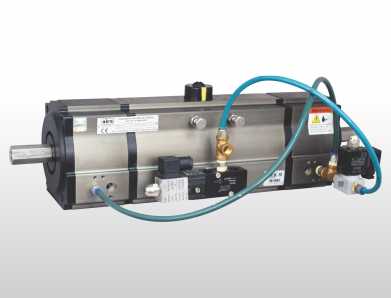

A Pneumatic Rotary Cylinder is a device that converts pneumatic pressure into rotary motion. It consists of a cylindrical body, a piston, and a rotary mechanism. The piston is connected to the rotary mechanism, which rotates the output shaft when the piston moves inside the cylinder. The direction of rotation can be either clockwise or counterclockwise, depending on the configuration of the cylinder.
Pneumatic Rotary Cylinders are available in various sizes, ranging from miniature versions used in small-scale robotics to heavy-duty models used in large industrial machines. They are classified based on their rotation angle, ranging from a few degrees to 360 degrees.
Design and Working of Pneumatic Rotary Cylinders
The design of a Pneumatic Rotary Cylinder varies depending on the manufacturer and application. However, most cylinders have similar components, such as a housing, a piston, and a rotary mechanism.
The housing is the outer shell of the cylinder, which contains the piston and the rotary mechanism. It is made of durable materials, such as aluminum or stainless steel, to withstand high pressures and harsh environments.
The piston is the moving component of the cylinder, which converts pneumatic pressure into mechanical motion. It is usually made of rubber or similar elastomeric material that seals the cylinder and prevents air leaks.
The rotary mechanism is responsible for converting linear motion into rotary motion. It is connected to the piston and rotates the output shaft when the piston moves inside the cylinder. There are different types of rotary mechanisms, such as rack-and-pinion, vane, and gear mechanisms, each with its own advantages and disadvantages.
The working principle of a Pneumatic Rotary Cylinder is based on the movement of the piston inside the cylinder. When compressed air is supplied to the cylinder, it enters the chamber behind the piston, pushing it forward. As the piston moves, it rotates the rotary mechanism, which rotates the output shaft. When the air supply is stopped, the piston returns to its initial position due to spring force, and the rotary motion stops.
Applications of Pneumatic Rotary Cylinders
Pneumatic Rotary Cylinders are versatile devices used in various industrial applications that require rotary motion. Some common applications include:
Robotics: Pneumatic Rotary Cylinders are used in robot arms and grippers to perform precise and repeatable movements. They are also used in rotary indexing tables, which are used to position and transfer workpieces in automated assembly lines.
Packaging: Pneumatic Rotary Cylinders are used in packaging machines to perform tasks such as capping, labeling, and filling. They provide high-speed and accurate rotary motion, which is essential for maintaining the quality and consistency of the products.
Printing: Pneumatic Rotary Cylinders are used in printing machines to control the movement of the printing plate and the paper. They provide precise registration and timing, which ensures high-quality printing and reduces wastage.
Material Handling: Pneumatic Rotary Cylinders are used in conveyor systems, rotary tables, and other material handling equipment to position and transfer materials. They provide fast and reliable rotary motion, which is essential for efficient and safe material handling.
Maintenance Tips for Pneumatic Rotary Cylinders
Proper maintenance is essential for ensuring the optimal performance and longevity of Pneumatic Rotary Cylinders. The following are some maintenance tips to keep in mind:
Regular Inspection: Regularly inspect the cylinder for signs of wear and tear, such as leaks, corrosion, and damage to the housing or piston. In order to prevent further damage, replace any worn or damaged components as soon as possible.
Lubrication: Proper lubrication is crucial for the smooth operation of Pneumatic Rotary Cylinders. Use a high-quality lubricant that is compatible with the cylinder and the rotary mechanism. Apply the lubricant according to the manufacturer's recommendations.
Air Quality: Ensure that the air supply to the cylinder is clean, dry, and free of contaminants, such as oil, water, and dirt. Use an air filter and regulator to maintain the air quality and pressure within the recommended range.
Temperature Control: Pneumatic Rotary Cylinders are sensitive to temperature changes, which can affect their performance and lifespan. Keep the cylinder away from heat sources and ensure that the temperature is within the recommended range.
In conclusion, Pneumatic Rotary Cylinders are essential components in industrial automation systems, providing precise and reliable rotary motion for various applications. Understanding their design, working, applications, and maintenance requirements is crucial for ensuring their optimal performance and longevity. By following proper maintenance practices, you can ensure the smooth operation of Pneumatic Rotary Cylinders and avoid costly downtime and repairs.
