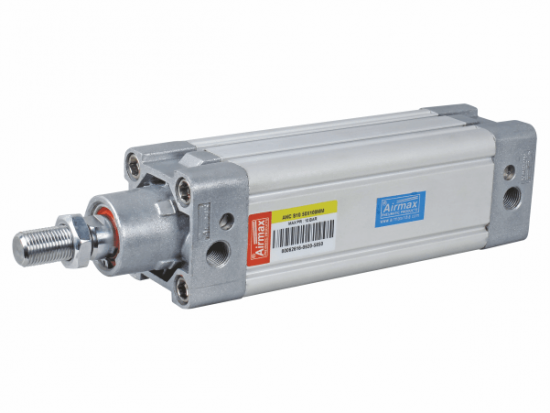

Exploring the Different Types of Pneumatic Cylinders

Pneumatic cylinders are an essential component of many industrial automation systems. These devices convert energy from compressed air into linear motion, making them an ideal choice for a wide range of applications, including material handling, packaging, and assembly.

If you're in the market for a pneumatic cylinder, you'll quickly discover that there are several different types available. In this blog, we'll explore the different types of pneumatic cylinders and their various applications, so you can make an informed decision when choosing the right one for your needs.

What are Pneumatic Cylinders and How Do They Work?

Pneumatic cylinders are mechanical devices that use compressed air to create linear motion. They consist of a cylinder, piston, and a variety of seals, valves, and ports that work together to convert the energy from compressed air into force.

When compressed air is supplied to the cylinder, it pushes the piston forward, creating a force that can be used to move objects or perform work. The force generated by the cylinder is proportional to the amount of compressed air supplied to the cylinder, making it easy to control the amount of force applied.

Single-Acting vs. Double-Acting Pneumatic Cylinders

Single-acting pneumatic cylinders are designed to provide force in only one direction. They use compressed air to push the piston in one direction and then rely on a spring or other external force to return the piston to its starting position. Single-acting cylinders are ideal for applications that require force in only one direction, such as clamping or lifting.

Double-acting pneumatic cylinders, on the other hand, can provide force in both directions. They use compressed air to push the piston in one direction, and then use a second supply of compressed air to push the piston in the opposite direction. Double-acting cylinders are ideal for applications that require force in both directions, such as pushing or pulling.

Round vs. Square Pneumatic Cylinders

Pneumatic cylinders come in two main shapes: round and square. Round cylinders are the most common type of pneumatic cylinder and are ideal for applications that require a simple, compact design. Square cylinders, on the other hand, are often used in applications where space is limited, as they can be mounted in tight spaces without taking up too much room.

Tie-Rod vs. Non-Tie-Rod Pneumatic Cylinders

Tie-rod and non-tie-rod cylinders are two types of pneumatic cylinders that differ in their construction. Tie-rod cylinders are constructed with a series of tie rods that hold the end caps in place, while non-tie-rod cylinders use a single-piece barrel construction. Tie-rod cylinders are generally more durable and can handle higher loads, while non-tie-rod cylinders are often more compact and easier to maintain.

Compact Pneumatic Cylinders vs. Standard Pneumatic Cylinders

Compact pneumatic cylinders are designed to provide high force in a small package. They are ideal for applications where space is limited or where a smaller cylinder is needed. Compact cylinders can be used in a wide range of applications, from robotics to manufacturing.

Standard pneumatic cylinders, on the other hand, are designed to provide high force over a longer stroke length. They are typically larger than compact cylinders and are used in applications where more force is needed, such as in heavy-duty material handling or assembly applications.

Guided vs. Non-Guided Pneumatic Cylinders

Guided pneumatic cylinders are designed with external guidance systems, such as linear slides or bushings, that help to prevent side-loading and ensure that the piston moves in a straight line. Guided cylinders are often used in applications where precision is important, such as in automated assembly lines.

Non-guided cylinders, on the other hand, rely on the cylinder body to guide the piston. While these cylinders are often more compact and easier to maintain than guided cylinders, they may not be suitable for applications that require high precision or consistent performance.

Conclusion

In conclusion, when selecting a pneumatic cylinder, it's important to consider the specific requirements of your application. By understanding the different types of pneumatic cylinders available, you can choose the one that best meets your needs in terms of size, shape, force, and precision.

Whether you need a compact cylinder for a robotics application or a heavy-duty standard cylinder for material handling, there is a pneumatic cylinder types that is suitable for your needs. By selecting the right type of cylinder, you can ensure optimal performance, reliability, and efficiency in your automation system.
