Everything You Need to Know About Plug Valves: Design, Operation, and Applications

Plug valves are a type of valve used to control the flow of liquids and gases through a pipeline. They are designed to provide a tight shut-off and are commonly used in various industries such as oil and gas, chemical processing, and water treatment.

In this blog, we will discuss everything you need to know about plug valves, including their design, operation, applications, and advantages and disadvantages.

Introduction to Plug Valves

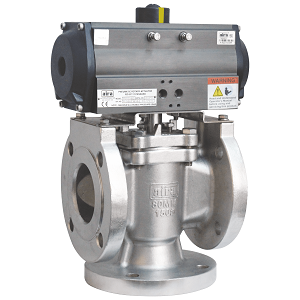

Plug valves consist of a cylindrical or conical plug that rotates inside the valve body, creating a tight seal between the plug and the body to control the flow of the fluid. The valve can be operated manually or using an actuator, such as a pneumatic or electric actuator.

Plug valves come in various designs, including lubricated, non-lubricated, and sleeved plug valves. Lubricated plug valves are commonly used in high-pressure applications and require regular maintenance to ensure proper operation. Non-lubricated plug valves, on the other hand, are self-lubricating and require less maintenance. Sleeved plug valves are designed to prevent contamination of the fluid being transported and are commonly used in the food and beverage industry.

Plug Valve Design and Operation

Plug valves operate using a quarter-turn mechanism, where the plug rotates 90 degrees to control the flow of the fluid. The valve can be opened or closed quickly, making it suitable for applications where a quick response time is required.

Plug valves are designed to provide a tight shut-off, meaning they can effectively control the flow of fluids without leakage. They are also relatively simple in design, making them easy to install and maintain.

One of the key factors in the design and operation of a plug valve is the type of plug used. Plug valves can have cylindrical or conical plugs, with conical plugs offering better sealing properties due to their tapered design. Some plug valves also have a multi-port design, allowing for more than one fluid flow direction.

Applications of Plug Valves

Plug valves are commonly used in a wide range of applications, including oil and gas pipelines, chemical processing, water treatment, and wastewater management. They are suitable for applications where a tight shut-off is required, as well as for applications where the fluid being transported may contain solids or other contaminants.

Plug valves can also be used in high-temperature applications, making them suitable for use in steam systems. Some plug valves are also designed to be fire-safe, meaning they can withstand high temperatures and still function properly.

Advantages and Disadvantages of Plug Valves

Plug valves offer several advantages over other types of valves. They provide a tight shut-off, which is essential in applications where leakage cannot be tolerated. They also have a low-pressure drop, which means they do not significantly impede the flow of the fluid being transported. Plug valves are also relatively simple in design and can be easily maintained.

However, plug valves also have some disadvantages. They can be prone to wear and tear, particularly in high-pressure applications, and require regular maintenance to ensure proper operation. They also have a relatively slow operation compared to other types of valves, which may not be suitable for some applications.

In conclusion, plug valves are a versatile type of valve used in various industries for controlling the flow of fluids. They provide a tight shut-off and are relatively simple in design, making them easy to install and maintain. However, they also have some limitations, and their suitability for a particular application should be carefully considered. Overall, plug valves remain an important tool for controlling fluid flow in a wide range of applications.
