A solenoid valve is a device that uses an electromagnet to open or close a valve. They are used in various industries and have many advantages and disadvantages. In this blog post, we will look at how solenoid valves work, the different types of solenoid valves, and why you might use one.

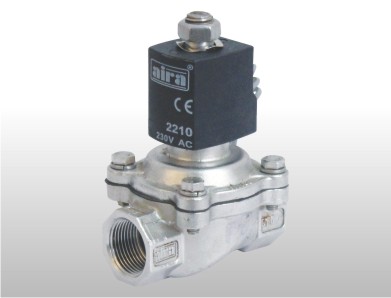

What Is A Solenoid Valve?
Electromechanical solenoid valves control fluid flow (usually liquids or gasses). The device consists of a coil of wire (the solenoid) wrapped around a metal rod (the plunger). The magnetic field created by an electric current through the loop pulls the plunger toward the coil's center as it passes through the loop. This action opens or closes a valve connected to the plunger, which controls the fluid flow through the device.
Solenoid valves are used in various applications, including automotive engines, plumbing systems, and medical equipment. They are often used to control water flow in household appliances such as dishwashers and washing machines. In industry, they are used for tasks such as controlling the pressure in hydraulic systems and regulating gas flow in pipelines.
Solenoid valves can be classified into two main types: direct-acting and pilot-operated. Direct-acting solenoid valves have a simple design and are typically used for low-pressure applications. On the other hand, pilot-operated solenoid valves are more complex and designed for use in high-pressure systems.
The Three Main Types Of Solenoid Valves
Solenoid valves are widely used in various industries to control the flow of liquids and gasses. They are available in multiple designs, but all share the same basic principle of operation.
There are three main types of solenoid valves: normally closed (NC), normally open (NO), and universal. NC valves remain closed when no voltage is applied, while NO valves remain open. Universal valves can operate as either NC or NO, depending on the voltage.
NC valves are the most common type of solenoid valve, as they are typically used to control the flow of liquids. NO valves are less common but are often used in applications where it is essential to prevent backflow. Universal valves offer the advantage of being able to switch between NC and NO operation, depending on the application's requirements.
How Does A Solenoid Valve Work?
A magnetic field is created by passing an electric current through the coil. This magnetic field then interacts with the armature, a metal plate attached to the plunger. An armature moves due to the interaction between a magnetic field and an armature. The movement of the armature opens or closes the valve, depending on the solenoid valve type.
Among their many applications, solenoid valves are used in car engines (to control fuel intake), in washing machines (to own water flow), and in sprinkler systems (to control water flow).
The Different Types Of Solenoid Valves In Industry
Solenoid valves are available in a wide range of materials, sizes, and configurations to suit the needs of different industries. The most common types of solenoid valves used in industry are listed below.
- Pilot-Operated Solenoid Valves: Pilot-operated solenoid valves are commonly used in industries such as oil and gas, where they control the flow of liquids and gasses. They can handle high pressures and be used in both low-pressure and high-pressure applications.
- 2/2-Way Solenoid Valves: 2/2-way solenoid valves are the most common type of valve used in industry. In addition to a wide range of materials and sizes, they can be customized for many applications. 2/2-way valves can be operated manually or automatically and can be used to control the flow of liquids, gasses, or steam.
- 3/2-Way Solenoid Valves: 3/2-way solenoid valves are similar to 2/2-way valves but have an additional port to exhaust air from the system. 3/2-way valves are often used in pneumatic systems, where they are used to control the flow of air.
- 5/2-Way Solenoid Valves: 5/2-way solenoid valves have five ports: two for input (inlet and outlet), two for output (exhaust), and one for the pilot (supply). 5/2-way valves are commonly used in pneumatic systems, where they are used to control the flow of air.
Why Use A Solenoid Valve?
Solenoid valves are widely used in different industries because of their many advantages. They are easy to control and can be opened or closed quickly. They are also relatively small and lightweight, which makes them easy to install and maintain. In addition, they are durable and have a long lifespan.
Many solenoid valves are available on the market, each designed for other purposes. The most common types of solenoid valves used in industry are pilot-operated valves, 2/2-way valves, 3/2-way valves, and 5/2-way valves. Each type of valve has unique benefits and drawbacks, so choosing the correct valve for the specific application is essential.
Pilot-operated valves are one of the most common solenoid valves used in industry. They are easy to control and can be opened or closed quickly. In addition, they are relatively small and lightweight, which makes them easy to install and maintain. Pilot-operated valves are also durable and have a long lifespan.
2/2-way valves are another type of solenoid valve that is commonly used in industry. These valves have two ports and two positions. The ports are connected in the first position, and fluid can flow through the valve. In the second position, the ports are disconnected, and fluid cannot flow through the valve. 2/2-way valves are often used to control the flow of liquids or gasses in pipelines.
3/2-way valves are similar to 2/2-way valves but have three ports instead of two. In the first position, two ports are connected, and fluid can flow through the valve. In the second position, all three ports are disconnected and fluid cannot flow through the valve. 3/2-way valves are often used to control the flow of liquids or gasses in pipelines.
5/2-way valves are another type of solenoid valve commonly used in industry. These valves have five ports and two positions. In the first position, three ports are connected, and fluid can flow through the valve. In the second position, all five ports are disconnected, and fluid cannot flow through
Advantages And Disadvantages Of Solenoid Valves
Solenoid valves have many advantages, such as their easy controllability, small size, and long lifespan. However, they also have some disadvantages, such as their relatively high cost and the fact that they can be affected by electrical interference.
One of the most significant advantages of solenoid valves is that they are straightforward to control. This is because they are activated by an electric current, which can be turned on and off very quickly. This means that solenoid valves can be used to control the flow of liquids and gasses very precisely. They are also relatively small and lightweight, which makes them easy to install and maintain. Another advantage of solenoid valves is their long lifespan – often ten years or more.
Despite their advantages, solenoid valves also have some disadvantages. One of the most significant drawbacks is their cost – they are often more expensive than other valve types. They can also be affected by electrical interference, which can cause them to malfunction.
