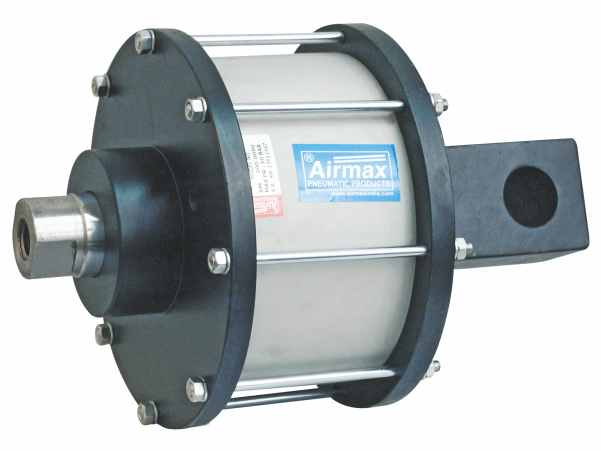

How Pneumatic Cylinders Work: A Comprehensive Guide

Are you curious about how pneumatic cylinders work and how they can benefit your business? In this comprehensive guide, we'll explain the basics of pneumatic cylinders, the different types, how they work, the pros and cons, and how to choose the right one for your needs. Whether you're new to pneumatic cylinders or want to improve your knowledge, this guide has everything you need.

Pneumatic Cylinders: An Introduction

Pneumatic cylinders are a type of mechanical actuator used to provide unidirectional force and motion. They are powered by compressed air, which is why they are also called air cylinders. Pneumatic cylinders offer precise linear movement, making them ideal for various applications requiring automated operation.

The most common type of pneumatic cylinder is the single-acting cylinder, which uses compressed air to create a force in one direction only. This means it must be reset manually or using another power source, such as a spring or gravity. Double-acting cylinders are also available; these use compressed air to create force in both directions. This allows for more precise control over the motion and speed of the pneumatic cylinder.

Pneumatic cylinders come in many shapes and sizes, from small models suitable for low-force applications to large ones capable of generating immense forces. The size and strength of the cylinder depending on the application it will be used for; larger cylinders tend to be used for industrial purposes, while smaller ones may be used for more general household tasks. The choice of material used to construct the pneumatic cylinder also affects its strength and durability; aluminum and stainless steel are commonly used due to their high strength-to-weight ratio and corrosion resistance properties.

When deciding which pneumatic cylinder is best suited for your application, there are several factors you will need to consider, including size, stroke length (the distance the piston can travel), pressure rating (the maximum amount of pressure it can handle), port size (the size at which you can connect hoses) and whether or not it has end caps on both sides (which helps keep dirt out). Consider additional features, such as adjustable cushions or stroke lengths, depending on your needs.

Overall, understanding how pneumatic cylinders work can help you choose the right one for your specific application needs to get maximum performance from your system. With careful consideration when selecting your pneumatic cylinder, you can ensure that it meets your requirements now and in years to come!

The Three Types of Pneumatic Cylinders

Pneumatic cylinders are a type of actuator used to convert energy, typically air pressure, into the linear motion of a piston. Pneumatic cylinders are found in many industrial and commercial applications, from manufacturing to construction. They are also commonly used in robotics and automation systems.

The primary types of pneumatic cylinders are single-acting, double-acting, and rotary-acting. Single-acting cylinders contain one chamber, which can be pressured or depressurized with air pressure, causing the piston to move in one direction only. Double-acting cylinders have two chambers that can be pressured or depressurized with air pressure, resulting in both extension and retraction of the piston. Rotary actuators use an internal cam mechanism to convert linear and rotational motions.

Single-acting pneumatic cylinders are often used for applications where quick response times and low cost are important factors. These include controlling valves such as relief valves, blowdown valves, and pilot operated valves and other tasks such as clamping operations, restoring forces on machine parts, or providing power assistance for manual operations.

Double-acting pneumatic cylinders offer greater control over the speed at which the piston moves than single acting varieties due to their ability to alternate between extension and retraction cycles depending on whether the air pressure is applied to either side of the cylinder's chamber(s). These motors' precision speed control makes them ideal for applications like lifting tables and automated presses.

Rotary actuators provide a unique solution for converting linear motion into circular motion and vice versa when higher levels of torque are required than what can be provided by single- or double-acting pneumatic cylinders alone. Common uses include:

• Controlling automated assembly machines.
• Lifting heavy loads via cranes or winches.
• Clamping operations in woodworking machinery.
• Powering conveyor belts while maintaining constant torque output.

How Pneumatic Cylinders Work

Pneumatic cylinders are powered by air pressure and use a piston to create linear motion. The piston is in the cylinder, containing two or more ports for air intake and exhaust. The pressure of the incoming air pushes the piston out of the cylinder and is then released through a valve at the end of the cylinder. This process can be repeated multiple times depending on the number of ports.

Single-acting cylinders rely on a spring within the cylinder to retract the piston after it has been pushed out. This type of pneumatic cylinder is typically used for applications such as controlling valves and restoring forces on machine parts. However, double-acting cylinders use pressurized air to extend and retract the piston from its resting position. This allows for greater control over speed, making them ideal for applications requiring precise movements, such as lifting tables or automated presses.

Rotary actuators convert linear motion into rotational motion using an eccentric cam or a rack-and-pinion system. An eccentric cam works by having an offset pivot point that turns when pushed against an external force, such as air pressure from an input port. A rack-and-pinion system uses two components: a gear with teeth (the pinion) that meshes with another gear (the rack). When pressurized air moves through one of these systems, they produce rotational motion depending on which direction it moves concerning the other component's orientation.

Overall, pneumatic cylinders are versatile equipment used in various industries because they provide the precision movement with relatively little energy input compared to other actuators such as hydraulic cylinders or electric motors. Additionally, they are cost-effective due to their simple construction and ability to run on compressed air rather than electricity or hydraulic fluid, which can be costly and difficult to maintain over time.

The Benefits of Pneumatic Cylinders

The numerous benefits of pneumatic cylinders make them attractive for various applications. They are cost-effective compared to other actuators, such as hydraulic and electric models. Additionally, they require very little energy input and are easy to maintain and operate. Pneumatic cylinders can also be used in hazardous environments due to their lack of electrical components, making them a safe choice for industrial settings.

In addition to the cost savings and safety features pneumatic cylinders offer, they can also provide increased control over speed and accuracy compared to other actuators. This makes them ideal for applications that require precise movements, such as automated assembly or woodworking machinery. Since pneumatic cylinders use pressurized air instead of electricity or hydraulic fluid to power the piston, they can generate more force than other actuators without consuming additional energy or resources.

Finally, pneumatic cylinders have a long lifespan due to fewer moving parts and lower wear-and-tear on the cylinder itself. This makes them a great option for applications where reliability is key, such as powering conveyor belts or controlling valves in manufacturing plants. With proper maintenance, pneumatic cylinders can last years with minimal repair costs, which adds to their overall cost-effectiveness compared to other actuators.

Pneumatic cylinders are an excellent choice for a wide range of motion control applications due to their low cost, high-performance capabilities, and long life span. Their versatility makes them suitable for nearly any application requiring linear motion while providing enhanced safety features in hazardous environments and increased precision when accuracy matters most.

The Drawbacks of Pneumatic Cylinders

Although pneumatic cylinders are a cost-effective and reliable option for many industrial applications, they have drawbacks. The most significant drawback is their relatively low power output compared to other actuators, such as hydraulic cylinders. Additionally, due to air pressure, the force a pneumatic cylinder generates is limited by the air pressure supplied. This means that if more force is needed than what can be supplied by the current air supply, then another source of energy must be used. Finally, because pneumatic cylinders rely on pressurized gas for operation, they can be affected by changes in temperature or humidity which can lead to failure or misalignment and require frequent maintenance checks.

In conclusion, while pneumatic cylinders offer many advantages in cost and reliability over other actuators, there are some drawbacks associated with them that should be considered when selecting an appropriate type of actuation system. While these issues may not necessarily disqualify them from use in certain applications, it's important to understand these potential issues before investing in a system that may not provide the desired performance levels.

How to Choose the Right Pneumatic Cylinder for Your Needs

You should consider a few factors when choosing the right pneumatic cylinder for your needs. The first is the type of application you need the cylinder for. Single-acting cylinders are best suited for quick response times and low-cost applications. In contrast, double-acting cylinders provide greater control over speed and are better suited for heavier-duty tasks. Rotary actuators are ideal for automating assembly machines, lifting heavy loads, and powering conveyor belts.

The second factor to consider is the pressure rating of the cylinder. The pressure rating determines how much force can be generated by the air pressure supplied to it and thus affects its performance in certain applications. It's important to ensure that the pressure rating is suitable for your needs, as too high or too low of a pressure rating can result in poor performance or even system failure.

It's also important to consider environmental considerations such as temperature and humidity when choosing a pneumatic cylinder. High levels of moisture or extreme temperatures can cause the system's misalignment or failure due to the components' expansion or contraction over time. Preventative measures such as corrosion-resistant materials and weatherproof seals can help protect against these issues and increase system longevity.

When choosing a pneumatic cylinder system, you should also consider your budget. While they tend to be cost-effective options compared to other actuators, certain components may come with additional costs depending on their quality or complexity. Evaluating what features you need versus those you don't will help keep costs down while ensuring your system meets all your requirements.

By considering these factors when choosing a pneumatic cylinder, you can ensure that you select a solution that meets both your performance requirements and budget constraints while also providing reliable operation in any environment you may encounter.
