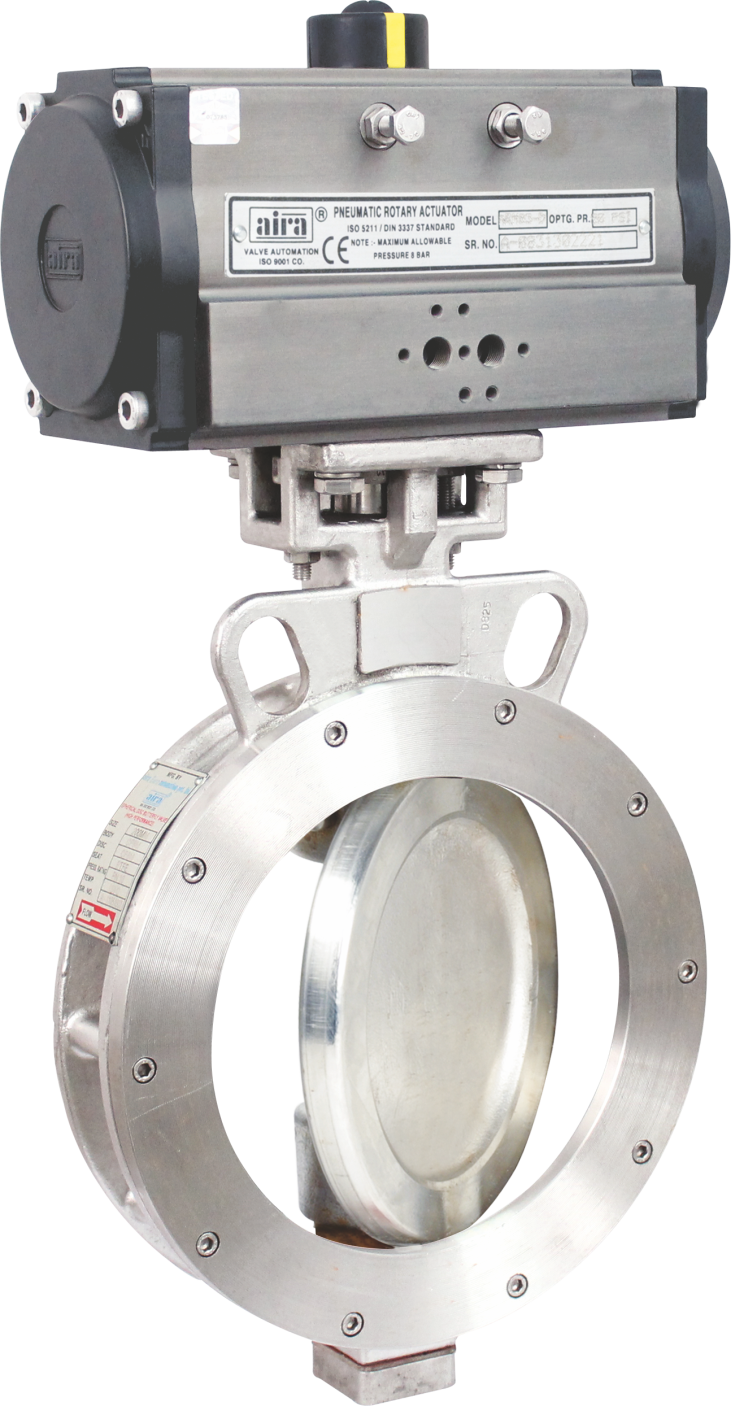

Actuated Butterfly Valve: A Comprehensive Guide

What is an Actuated Butterfly Valve?

An actuated butterfly valve is a type of valve that uses a disc to regulate the flow of fluids. The disc is positioned in the center of the valve body and rotates on a spindle. When the valve is in the open position, the disc is turned parallel to the direction of the flow, allowing fluid to pass through. When the valve is in the closed position, the disc is turned perpendicular to the flow, effectively stopping the flow of fluid. An actuator is attached to the valve and is responsible for opening and closing the valve, as well as adjusting the valve's position.

How Does an Actuated Butterfly Valve Work?

The actuator of an actuated butterfly valve can be either electric or pneumatic. In an electrically actuated butterfly valve, an electric motor is used to rotate the spindle that turns the disc. In a pneumatically actuated butterfly valve, compressed air is used to turn the spindle. The actuator is connected to the valve body through a coupling mechanism, which allows the actuator to rotate the spindle and open or close the valve. The position of the valve is controlled by the actuator, which can be adjusted to open or close the valve at a specific angle.

Advantages of Actuated Butterfly Valves

Actuated butterfly valves are widely used in a variety of applications because of their numerous advantages. They are simple to set up, run, and manage. They are also cost-effective, as they require minimal maintenance and have a long service life. Actuated butterfly valves have a compact design, which makes them ideal for use in applications where space is limited. They are also lightweight and have low torque requirements, which means that smaller actuators can be used. Actuated butterfly valves are suitable for use with a wide range of fluids, including water, gas, and chemicals.

Applications of Actuated Butterfly Valves

Actuated butterfly valves are commonly used in industries such as oil and gas, water treatment, chemical processing, and food and beverage. They are used in applications such as regulating the flow of fluids in pipelines, controlling the flow of water in irrigation systems, and controlling the flow of chemicals in industrial processes. Actuated butterfly valves are also used in HVAC systems to regulate the flow of air and in fire protection systems to control the flow of water.

Actuated butterfly valves are an important component of many industrial processes, and their widespread use is a testament to their effectiveness and reliability. They are used in a variety of applications, from regulating the flow of fluids in pipelines to controlling the flow of water in irrigation systems. Actuated butterfly valves offer numerous advantages over other types of valves, including ease of installation, operation, and maintenance, as well as cost-effectiveness and suitability for use with a wide range of fluids. If you need a valve for your application, consider an actuated butterfly valve as a reliable and effective option.
