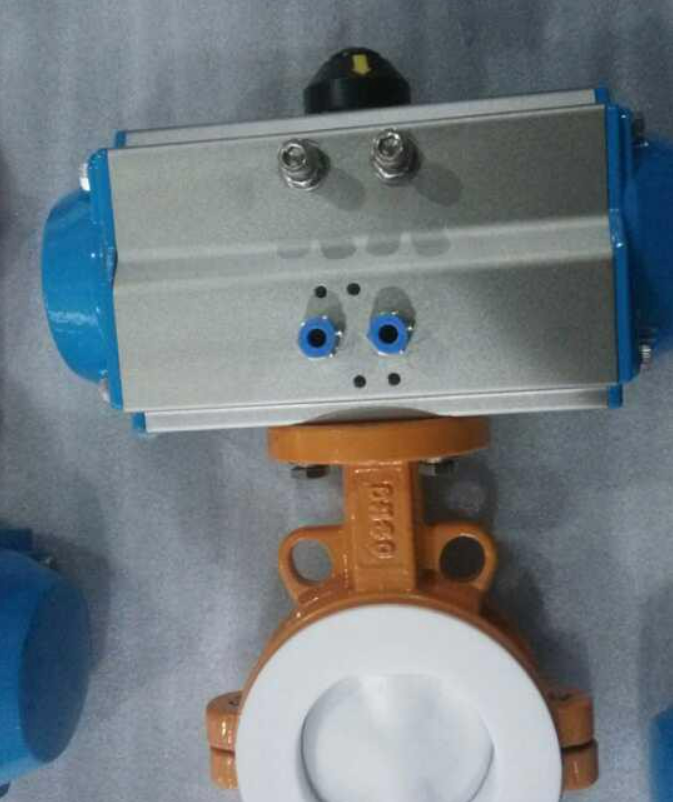

Pneumatic Actuated Butterfly Valve manufacturer in USA

SVR Global is the most reputed and prominent Pneumatic Actuated Butterfly Valve manufacturer in USA.  Pneumatic actuated butterfly valves are quarter-turn rotational valves and they are used to prevent, control, or start the flow of medium through systems. These valves are ideal for managing huge quantities of fluid or gases at low pressure.

A pneumatic actuated butterfly valve is a device that converts compressed gas energy into mechanical motion. A pneumatic actuated butterfly valve uses pressurized air or gas to convert energy into linear or rotational motion. They are very efficient, cost-effective, and safe. They are especially used to open and shut the valve. They look like a huge circle. This is a type of valve that is used to control or isolate fluid flow.

Working of Pneumatic Actuated Butterfly Valve:

We must first examine the fundamental functionality of a butterfly valve in order to comprehend how this sort of valve functions. A butterfly valve should ideally have a disc in the middle of a stem and pipe. The stem is attached to an actuator or a handle (for manually operated valves) (for automatically actuated valves). In this instance, the valve's stem will be attached to a pneumatic actuator, which uses pressurised air to move a piston or a diaphragm to either close or open the valve.

When the valve is closed, the disc is held firmly by a valve seat and rests perpendicular to the fluid flow. Additionally, the stem is sealed with an O-ring to avoid leaks and provide a snug but flexible fit. The disc moves to a position parallel to the fluid flow when the pneumatic actuator rotates the stem at a 90-degree angle. The flow becomes proportionate or throttled when the stem is partially rotated, and the valve can be used to modulate services.

Pneumatic Actuated Butterfly Valve is used in industries like:

·      Chemical industry

·      Mining industry

·      Petroleum industry

Types of Pneumatic Actuated Butterfly Valve:

·      Wafer-style butterfly valve

·      Lug-style butterfly valve

·      Flanged butterfly valve

Advantages of Pneumatic Actuated Butterfly Valve:

·      They are lightweight and compact

·      They are more secure

·      There starting and closing principle is very simple

·      They have the lower installation cost

Description:

Body Material: Cast iron, Ductile iron, Stainless steel (SS316, SS304, CF8), Carbon steel (WCB, WCC, LCB, LCC, WC6, LF2, WC9), Duplex steel (F51, F53, 5A, 6A).

Class: 150 to 300

Pressure: PN10 to PN40

Size: 2” to 72”

Connection type: Flanged, Lug type, Wafer type

Disc: CF8M, SS316L, CF8, Cast iron, Carbon steel, Ductile iron

Operation: Pneumatic actuated

Pneumatic Actuator details-

·      Torque – 3 – 9000 nm

·      Operating pressure- 8 Bar

·      Port Connection-NPT1.4”

·      Mounting Base-ISO5211

·      Temperature--20°C - +80°C

Visit: https://svrglobal.net/products/pneumatic-actuated-butterfly-valve/

SVR Global is topmost reputed Pneumatic Actuated Ball Valve manufacturer in USA.  Pneumatic actuated ball valve is driven by air pressure. In peumatic actuator the opersting power is generated by compressed air. These actuator are quick to react but not really suitable for high pressure environment due the gas compressibility. They are available in two types, one is in spring return and second in double acting configurations. Pneumatic ball valve is operated by pressurized gas or air. This valve regulates the flow of fluid or gas through a ball with bore.

Features of Pneumatic Actuated Ball Vlave:

·      Pneumatic Actuated Ball Valve gives greater flow, wider media compability.

·      Compact modular design of actuator provides direct mounting on ball valve.

·      Gives quick opening and closing and has long life in working cycle.

·      Ball valve has both sides seal which is covered by internal ball and can give tight shut off after year of cycle operation.

·      This valve has a body that excruded aluminum hard anodized for corossion protection and wear resistance.

Pneumatic Actuated Ball Valve is used in industries like:

·      Textile Industry

·      Water Industry

·      Construction Industry

·      Electric Power Industry

Advantages of Pneumatic Actuated Ball Valve:

·      Pneumatic Ball Valve has smallest fluid resistance in compared to other valves.

·      This valve seal has good sealing performance.

·      Trusht bearing of the valve reduce the friction of valve stem this results in valve stem operates smoothlu and flexibly for a long time.

·      If the spring is set between the body and valve stem then the valve body exports generated static electricity.

Description:

Body Material: Cast steel (WCB, WCC, WC6, LCC, LCB), Stainless steel (SS304, SS316), Carbon steel(CF8, CF8M),

Class: 150 to 2500

Pressure: PN10 to PN450

Size: ½” to 4”

End: Flanged, Buttweld, Socketweld, Threated

Operation: Pneumatic actuated

Pneumatic Actuator details-

·      Torque – 3 – 9000 nm

·      Operating pressure- 8 Bar

·      Port Connection-NPT1.4”

·      Mounting Base-ISO5211

·      Temperature--20°C - +80°C

Visit: https://svrglobal.net/products/pneumatic-actuated-ball-valve/
