What are The Different Types of Industrial Valves?

Industrial valves play a crucial role in controlling the flow of fluids and gases in various industrial processes. They are essential components in industries such as oil and gas, chemical, pharmaceutical, water treatment, power generation, and many others. Different types of industrial valves are designed to meet specific application requirements and provide efficient and reliable flow control.

Introduction

Industrial valves are mechanical devices used to regulate, start, or stop the flow of fluids or gases within a pipeline or process system. They are primarily used to control the direction, pressure, and volume of the media being transported. Industrial valves are critical for ensuring the safety, efficiency, and performance of industrial processes.

Definition of Industrial Valves

Industrial valves are devices that control the flow of fluids or gases by opening, closing, or partially obstructing the passageway through which the media flows. These valves can be operated manually or automatically, depending on the application and process requirements. They are designed to handle different pressures, temperatures, and media types.

Importance of Industrial Valves

Industrial valves are vital components in numerous industries as they enable precise control over the flow of fluids and gases. They ensure proper functioning and safety in various processes such as regulating fluid levels, maintaining pressure, preventing backflow, directing flow paths, and isolating equipment. Without valves, industrial systems would lack control and stability, leading to inefficiencies, operational risks, and potential hazards.

Classification of Industrial Valves

Industrial valves can be classified into several types based on their design, operating mechanisms, and applications. Here are some of the most common types:

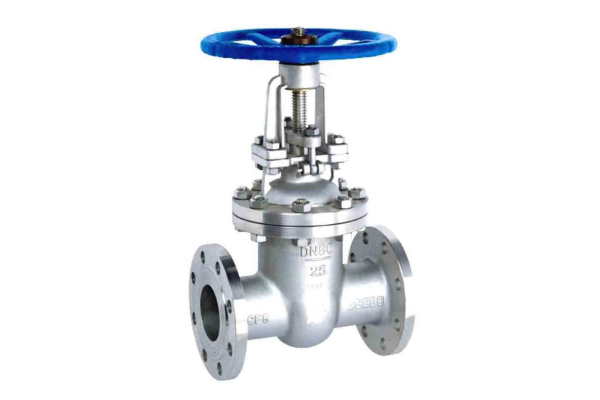

Gate Valves

Gate valves are widely used for on/off control and are characterized by a gate-like disc that moves perpendicular to the flow path. They provide minimal resistance to flow when fully open but offer a tight shut-off when closed.

Globe Valves

Globe valves are versatile and widely used in various industries. They have a spherical-shaped body with an internal baffle and a movable disc or plug. The disc can be raised or lowered to control the flow of the media. Globe valves are suitable for both on/off and throttling applications due to their precise flow control capabilities.

Ball Valves

Ball valves are popular for their quick and reliable shut-off capabilities. They feature a spherical disc with a hole (port) in the center. When the port is aligned with the pipeline, the flow is unrestricted. Rotating the ball 90 degrees closes the valve, blocking the flow completely. Ball valves are durable, low maintenance, and suitable for high-pressure applications.

Butterfly Valves

Butterfly valves are lightweight, compact, and cost-effective. They consist of a disc that rotates on a shaft, allowing or restricting the flow. When the disc is parallel to the pipeline, the valve is fully open, and when it's perpendicular, the valve is closed. Butterfly valves are commonly used for large-scale applications, such as HVAC systems, water treatment plants, and fire protection systems.

Check Valves

Check valves, also known as non-return valves or one-way valves, allow fluid or gas to flow in one direction and prevent backflow in the opposite direction. They use a swinging disc, spring, or clapper mechanism to ensure flow in only one direction. Check valves are crucial for preventing reverse flow and protecting pumps, compressors, and other downstream equipment.

Plug Valves

Plug valves consist of a cylindrical or tapered plug with a passage through it. By rotating the plug, the flow can be controlled or shut off completely. Plug valves offer excellent sealing capabilities and are commonly used in applications that require frequent operation and low torque requirements.

Diaphragm Valves

Diaphragm valves use a flexible diaphragm to regulate the flow. The diaphragm, made of elastomer or metal, moves up and down, creating an obstruction or allowing flow. These valves are suitable for handling corrosive and abrasive media, making them ideal for pharmaceutical, food and beverage, and chemical industries.

Pinch Valves

Pinch valves utilize a flexible tube or sleeve to control the flow. When the tube is compressed, the flow is obstructed, and when released, the flow resumes. Pinch valves are widely used in applications involving slurries, abrasive fluids, and solids.

Pressure Relief Valves

Pressure relief valves, also known as safety valves, are designed to protect equipment and systems from overpressure. They automatically open when the pressure exceeds a preset limit, releasing the excess pressure and preventing potential damage or catastrophic failures. Pressure relief valves are critical for ensuring the safety and integrity of industrial processes.

Control Valves

Control valves are used to regulate the flow, pressure, and temperature within a system based on a control signal. They consist of a valve body, actuator, and positioner. Control valves play a crucial role in maintaining process parameters within desired limits and ensuring precise control in various industrial applications.

Operating Mechanisms of Industrial Valves

Industrial valves can be operated manually or automatically, depending on the requirements of the process. Here are the two main operating mechanisms:

Manual Valves

Manual valves are operated by hand, requiring direct physical manipulation to open, close, or regulate the flow. They are simple, cost-effective, and suitable for applications where frequent adjustments are not necessary.

Actuated Valves

Actuated valves are automated valves that use external power sources, such as electric actuators, pneumatic actuators, or hydraulic actuators, to operate the valve. These valves can be remotely controlled and integrated into control systems for precise and efficient flow control.

Material Selection for Industrial Valves

The material selection for industrial valves is crucial to ensure their compatibility with the media, operating conditions, and environmental factors. Here are some common materials used for manufacturing industrial valves:

Cast Iron: Cast iron valves are cost-effective and offer good corrosion resistance. They are suitable for applications with non-corrosive fluids and lower pressure requirements.

Carbon Steel: Carbon steel valves are widely used due to their strength, durability, and resistance to high temperatures. They are suitable for applications involving steam, oil, and gas.

Stainless Steel: Stainless steel valves are highly resistant to corrosion, making them ideal for applications involving corrosive fluids or environments. They are commonly used in the chemical, pharmaceutical, and food industries.

Brass: Brass valves are suitable for applications involving non-corrosive fluids and lower temperatures. They are commonly used in plumbing systems and water distribution.

Bronze: Bronze valves offer excellent corrosion resistance and are suitable for seawater and marine applications. They are also used in fire protection systems.

PVC (Polyvinyl Chloride): PVC valves are lightweight, affordable, and resistant to corrosion and chemicals. They are commonly used in water treatment, irrigation, and wastewater systems.

PTFE (Polytetrafluoroethylene): PTFE valves have excellent chemical resistance and are suitable for handling corrosive and high-purity fluids. They are commonly used in the chemical and pharmaceutical industries.

Duplex Stainless Steel: Duplex stainless steel valves offer a combination of high strength and corrosion resistance. They are suitable for demanding applications involving aggressive media.

Alloy Steel: Alloy steel valves are used in high-pressure and high-temperature applications. They offer superior strength, toughness, and resistance to corrosion and erosion.

Nickel-Based Alloys: Nickel-based alloy valves are highly resistant to corrosion and extreme temperatures. They are commonly used in industries such as oil and gas, petrochemical, and aerospace.

The material selection for industrial valves should consider factors such as the nature of the fluid or gas, temperature, pressure, corrosion potential, and operational requirements. It is essential to consult valve manufacturers or industry experts to determine the most suitable material for specific applications.

Factors to Consider When Choosing Industrial Valves

When selecting industrial valves for a specific application, several factors should be taken into account. These factors ensure that the chosen valves meet the operational requirements and provide optimal performance. Here are some key factors to consider:

Flow Control Requirements

The first consideration is understanding the flow control requirements of the system. This includes determining the desired flow rate, pressure drop, and any specific control needs. Different valve types and designs excel in different flow control scenarios, so it's essential to match the valve's characteristics to the application.

Operating Conditions

The operating conditions, such as temperature and pressure, significantly impact the valve's performance and durability. It is crucial to choose valves that can withstand the temperature and pressure ranges of the system without compromising their functionality or safety.

Application

Understanding the specific application is vital in selecting the right valve. Consider factors like the type of fluid or gas being controlled, the presence of solids or abrasives, and the industry requirements. Different industries may have unique demands, and selecting valves designed for those applications ensures efficient operation and longevity.

Budget

Budgetary constraints are always a consideration in any industrial project. Valves are available in a wide range of price points, and balancing cost with performance and reliability is essential. It's important to find the right balance between upfront cost and long-term value.

Maintenance and Reliability

Consider the maintenance requirements and reliability of the valves. Valves that are easy to maintain and have a longer service life can save time and costs in the long run. Look for valves with features like easy access for maintenance, replaceable components, and a track record of reliability.

Environmental Considerations

Take into account any environmental factors that may impact the valves. This includes considerations such as exposure to corrosive substances, extreme temperatures, or outdoor elements. Valves with appropriate corrosion resistance, insulation, or weatherproofing may be required for certain applications.

Considering these factors ensures that the selected industrial valves are well-suited for the specific application, leading to optimal performance, efficiency, and longevity.

Common Applications of Industrial Valves

Industrial valves are utilized in a wide range of applications across various industries. Here are some common applications where different types of industrial valves are employed:

Oil and Gas Industry: Industrial valves are critical components in oil and gas extraction, refining, and distribution processes. They are used in pipeline systems, storage tanks, and control systems to regulate the flow of crude oil, natural gas, and petroleum products.

Chemical Industry: Chemical processing plants rely on industrial valves for precise control over the flow of chemicals, solvents, and acids. Valves play a crucial role in maintaining safety, ensuring efficient mixing and blending, and controlling reactions in chemical processes.

Water Treatment and Distribution: Industrial valves are essential in water treatment plants, sewage systems, and water distribution networks. They regulate the flow of water, control pressure, and prevent backflow to ensure the efficient and safe supply of clean water to communities.

Power Generation: Valves are used in power plants for controlling the flow of steam, water, and other fluids in boilers, turbines, and cooling systems. They enable efficient power generation and play a vital role in maintaining the stability and safety of power plant operations.

Pharmaceutical Industry: Industrial valves are crucial in pharmaceutical manufacturing processes that involve the handling of chemicals, gases, and liquids. They provide precise control over dosing, mixing, and filtration, ensuring the quality and safety of pharmaceutical products.

HVAC Systems: Valves are used in heating, ventilation, and air conditioning systems for temperature and pressure control. They regulate the flow of air, water, and refrigerants to maintain desired comfort levels and energy efficiency.

Food and Beverage Industry: Industrial valves play a significant role in food processing and beverage production. They control the flow of ingredients, liquids, and gases, ensuring hygiene, precision, and compliance with food safety regulations.

Petrochemical Industry: Petrochemical plants utilize industrial valves in processes involving the refining and processing of petroleum-based products. They enable control over the flow of various hydrocarbons, gases, and chemicals.

These are just a few examples of the diverse applications of industrial valves. The specific requirements and demands of each industry necessitate the use of different valve types and configurations to ensure optimal performance and safety.

Maintenance and Troubleshooting of Industrial Valves

To ensure the continued performance and longevity of industrial valves, proper maintenance and periodic troubleshooting are essential. Here are some key maintenance practices:

Regular Inspection: Conduct visual inspections of valves to check for leaks, corrosion, or any visible damage. Inspect valve components, including seals, gaskets, and actuators, for wear and tear.

Lubrication: Apply appropriate lubricants to valve stems, bearings, and other moving parts to ensure smooth operation and prevent friction-related issues.

Cleaning: Regularly clean valves to remove any buildup of debris, dirt, or deposits that can affect their performance. Use suitable cleaning agents and procedures based on the valve material and the media being controlled.

Calibration and Adjustment: Periodically calibrate valves to ensure accurate flow control. Adjust valve settings and actuators as needed to maintain desired operating parameters.

Leak Detection and Repair: Perform leak detection tests to identify any potential leaks in the valve system. Promptly repair or replace any damaged or malfunctioning components to prevent further issues and maintain system integrity.

Valve Exercise: Regularly exercise valves by operating them through their full range of motion. This helps prevent valve sticking, ensures proper sealing, and extends the valve's lifespan.

Training and Documentation: Provide proper training to personnel involved in valve maintenance and operation. Maintain detailed documentation of maintenance activities, including inspection records, repairs, and replacements.

In case of troubleshooting, follow these steps:

Identify the Issue: Determine the specific problem with the valve, such as leakage, excessive noise, or failure to open/close properly. Gather relevant information, such as operating conditions and any recent changes or incidents.

Inspection and Analysis: Inspect the valve and associated components for any visible signs of damage or malfunction. Analyze the symptoms and compare them with known issues to narrow down the potential causes.

Diagnose and Correct: Based on the analysis, diagnose the root cause of the problem and take appropriate corrective measures. This may involve repairing or replacing damaged components, adjusting settings, or conducting further tests.

System Integrity Check: After troubleshooting and repairs, perform a comprehensive system integrity check to ensure the valve is functioning correctly and that there are no other underlying issues.

Proper maintenance and prompt troubleshooting help maximize the efficiency, reliability, and safety of industrial valves, minimizing downtime and optimizing overall process performance.

Conclusion

Industrial valves are essential components in various industries, enabling precise flow control, shut-off, and pressure regulation. Understanding the different types of industrial valves, their operating mechanisms, material selection, and applications is crucial for selecting the right valves for specific requirements.

By considering factors such as flow control requirements, operating conditions, application-specific needs, and maintenance considerations, industries can ensure optimal performance, longevity, and safety of their valve systems.

Regular maintenance, including inspection, lubrication, cleaning, and calibration, is necessary to keep valves in excellent working condition. Troubleshooting techniques help identify and resolve issues promptly, minimizing downtime and maintaining process efficiency.

Incorporating appropriate valve maintenance practices and troubleshooting protocols enhances the reliability, efficiency, and longevity of industrial valve systems, ensuring smooth operations and minimizing disruptions.
