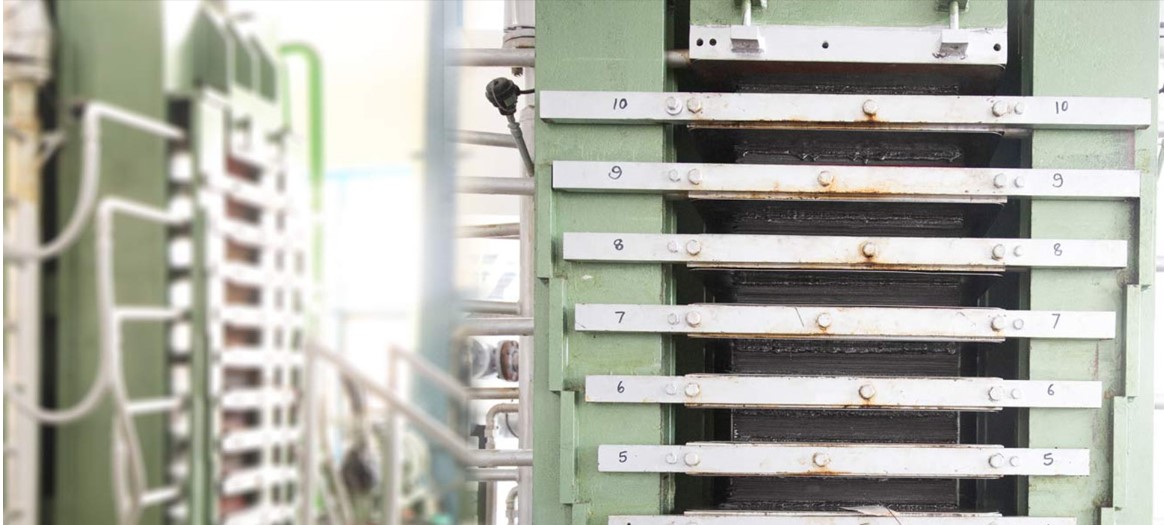

What is Carbon Fiber Molding Process?

The carbon fiber molding process refers to the manufacturing technique used to create products using carbon fiber-reinforced polymer (CFRP) materials. Carbon fiber composites are known for their high strength-to-weight ratio, making them desirable for various applications in industries such as aerospace, automotive, sports equipment, and more. Different carbon fiber products are manufactured with different technologies and processes, the molding process is one of them. In this blog, we’ll walk you through the process, advantages and disadvantages to assist with making the right decision for your use.

There are several methods of carbon fiber molding, including:

Prepreg Layup: Prepregs are carbon fiber sheets impregnated with a resin, usually epoxy, which is partially cured. In this process, the prepreg sheets are laid up in a mold, and heat and pressure are applied to complete the curing process. This method is widely used for manufacturing complex and high-performance components.

Resin Transfer Molding (RTM): RTM involves placing dry carbon fiber reinforcements into a two-sided mold. The mold is then closed, and liquid resin is injected under pressure into the mold cavity. The resin impregnates the carbon fibers, and curing takes place under heat and pressure. RTM is suitable for producing large and intricate parts with consistent mechanical properties.

Vacuum Bagging: This method involves placing dry carbon fiber sheets or prepregs in a mold and sealing it in an airtight vacuum bag. The bag is connected to a vacuum source, which removes the air and compresses the composite fibers. Resin is either infused into the mold manually or drawn into the mold under vacuum pressure. The part is then cured under heat.

Compression Molding: Compression molding involves placing dry carbon fiber reinforcements or prepregs in a mold cavity, which is then closed. Heat and pressure are applied to the mold, allowing the resin to flow and cure. This method is commonly used by carbon fiber manufacturers for making parts with complex shapes, such as automotive components.

Filament Winding: Filament winding is primarily used for producing cylindrical or tubular structures like pipes or pressure vessels. Carbon fiber rovings are wound onto a rotating mandrel in a specific pattern. The wound structure is impregnated with resin, and curing occurs under heat.

These are just a few examples of carbon fiber molding processes. The choice of method depends on factors such as the desired part geometry, mechanical requirements, production volume, and cost considerations. Each technique has its advantages and limitations, and manufacturers select the most appropriate method based on their specific needs. For CNC carbon fiber parts, the molding process is the most effective method.

Advantages of Carbon Fiber Molding Process:

High Strength-to-Weight Ratio: The composite material offers exceptional strength and stiffness while being significantly lighter than traditional materials like steel or aluminum. This makes carbon fiber molding ideal for applications where weight reduction is crucial without compromising structural integrity.

Design Flexibility: The molding process allows for the creation of complex shapes and intricate designs that may be challenging or impossible with other materials. This flexibility enables engineers to optimize the part's performance and tailor it to specific requirements.

Corrosion Resistance: Highly resistant to corrosion, unlike metals that may rust or degrade over time. This property makes molded carbon fiber products suitable for applications in corrosive environments or exposed to moisture.

Fatigue Resistance: The composites exhibit excellent fatigue resistance, meaning they can endure repeated loading and unloading cycles without significant degradation in performance. This property is valuable in applications where the part will experience cyclic loading or vibrations.

Electrical Insulation: Carbon fiber composites are excellent electrical insulators, making them suitable for applications where electrical conductivity needs to be avoided or minimized.

Disadvantages of Carbon Fiber Molding Process:

Cost: The composite materials and the associated manufacturing processes can be expensive compared to traditional materials like steel or aluminum. The raw materials, specialized equipment, and skilled labor contribute to the higher cost of the molding process.

Manufacturing Complexity: The molding process often requires advanced manufacturing techniques and expertise. This involves multiple steps, such as layup, curing, and post-processing, which can increase production time and complexity.

Material Property Variability: The properties of carbon fiber composites can vary based on factors such as fiber orientation, resin type, curing conditions, and manufacturing techniques. Achieving consistent and predictable material properties across multiple parts can be challenging, requiring strict quality control measures.

Environmental Impact: The manufacturing process involves the use of resins and chemicals, which can have environmental implications if not handled properly. Additionally, composite waste can be difficult to recycle due to the combination of materials used in the process.

Impact Resistance: While carbon fiber composites exhibit high tensile strength, they are relatively brittle compared to metals. They may not perform as well in applications where impact resistance is crucial, as they can be prone to damage or fracture under sudden and severe loading conditions.

It's important to note that the advantages and disadvantages listed here are general considerations and can vary depending on the specific application, design requirements, and manufacturing processes employed.

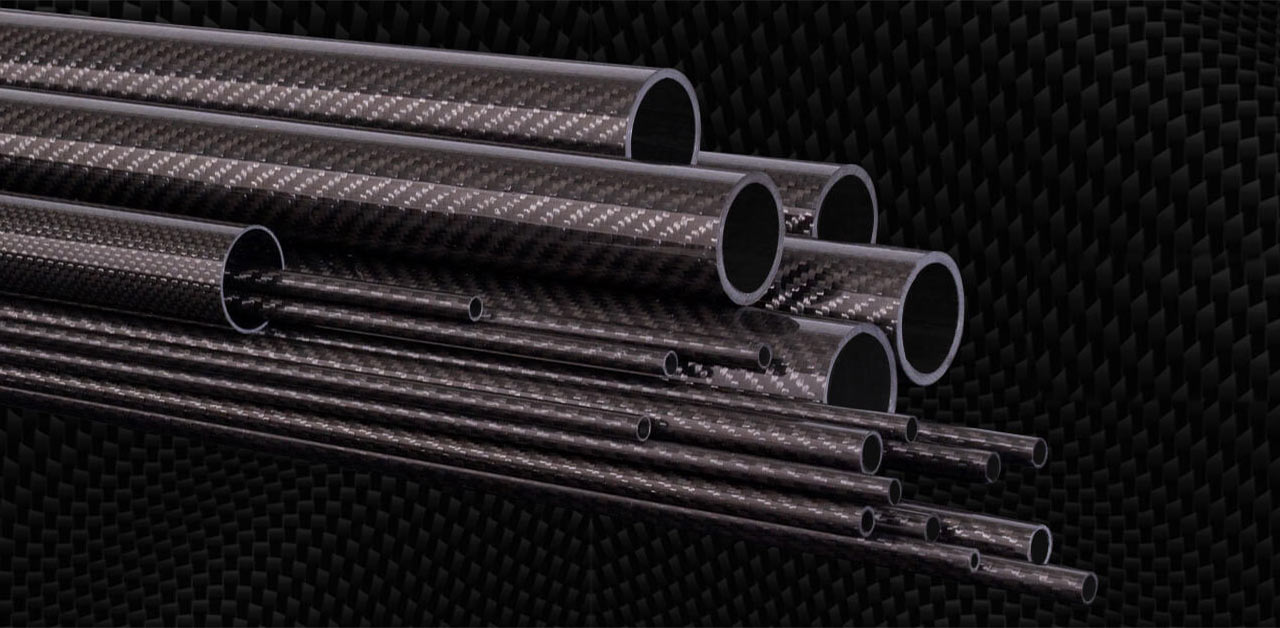

NitPro Composites is a carbon fiber composites manufacturer offering products in rods & tubes, sheets, CNC parts, pultruded profiles, etc. for applications in a wide range of industries.
